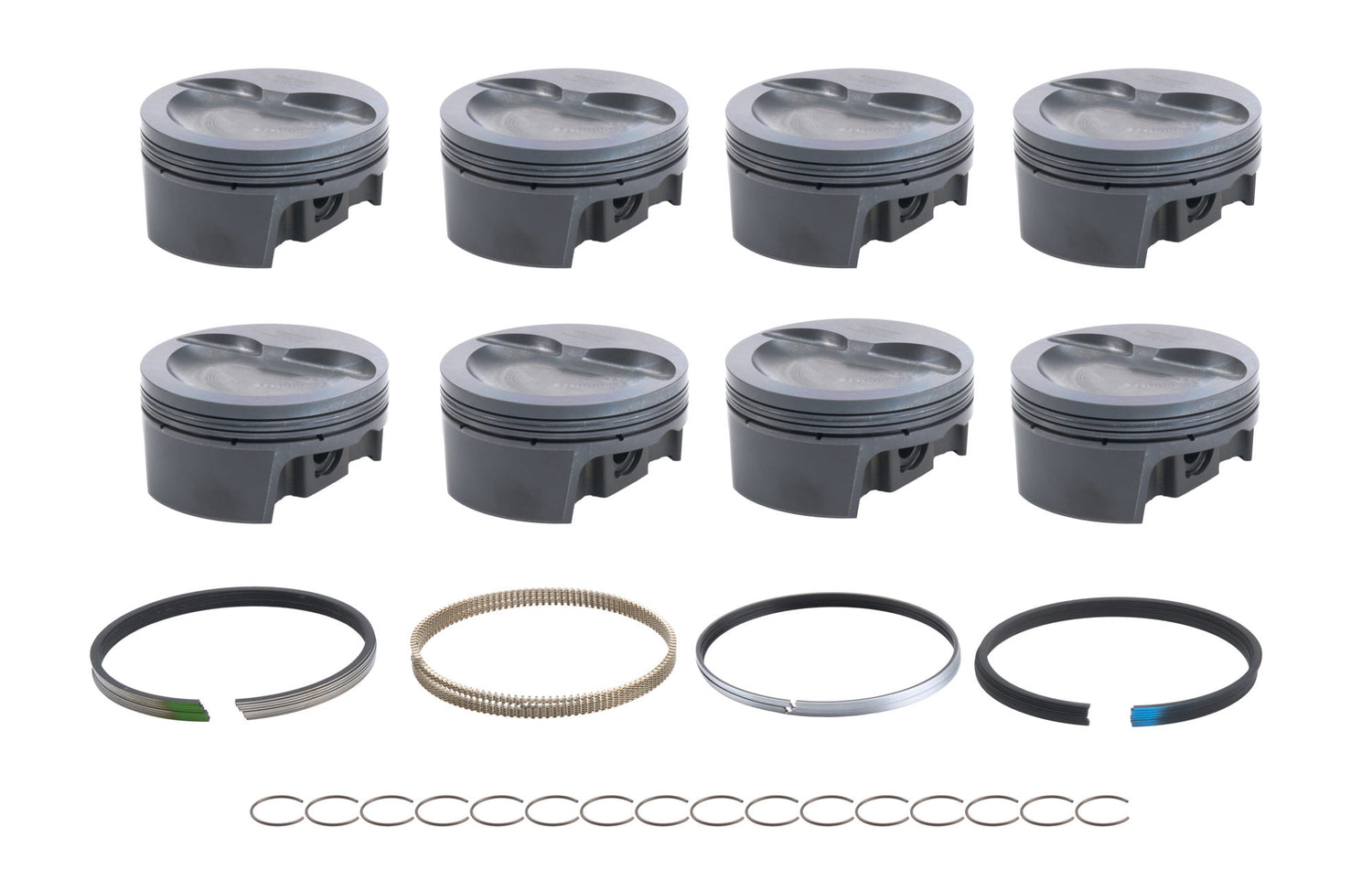

Mahle Motorsport 930248555 - Mahle MS Piston Set SBF 434ci 4.155in Bore 4.000in Stroke 1.245 CH 6.25in Rod 10.0 CR - Set of 8
Mahle Motorsport | SKU:
DGJH-930248555
Sale price
$79899
Regular price
$86487
Unit price
/
Unavailable
$65.88 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930248555 - Mahle MS Piston Set SBF 434ci 4.155in Bore 4.000in Stroke 1.245 CH 6.25in Rod 10.0 CR - Set of 8
Piston and Ring - PowerPak - Dished - Forged - Dish - 4.155 in Bore - 1.245 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 26.00 cc - Big Block Ford - Kit
434cid 4.155 x 1.245CH, 4.000stroke,6.250rod,0.927pin,-26cc,447g,10.0CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Inverted Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 447g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -26cc
UCR Thickness: 1.0mm
