Description
Description

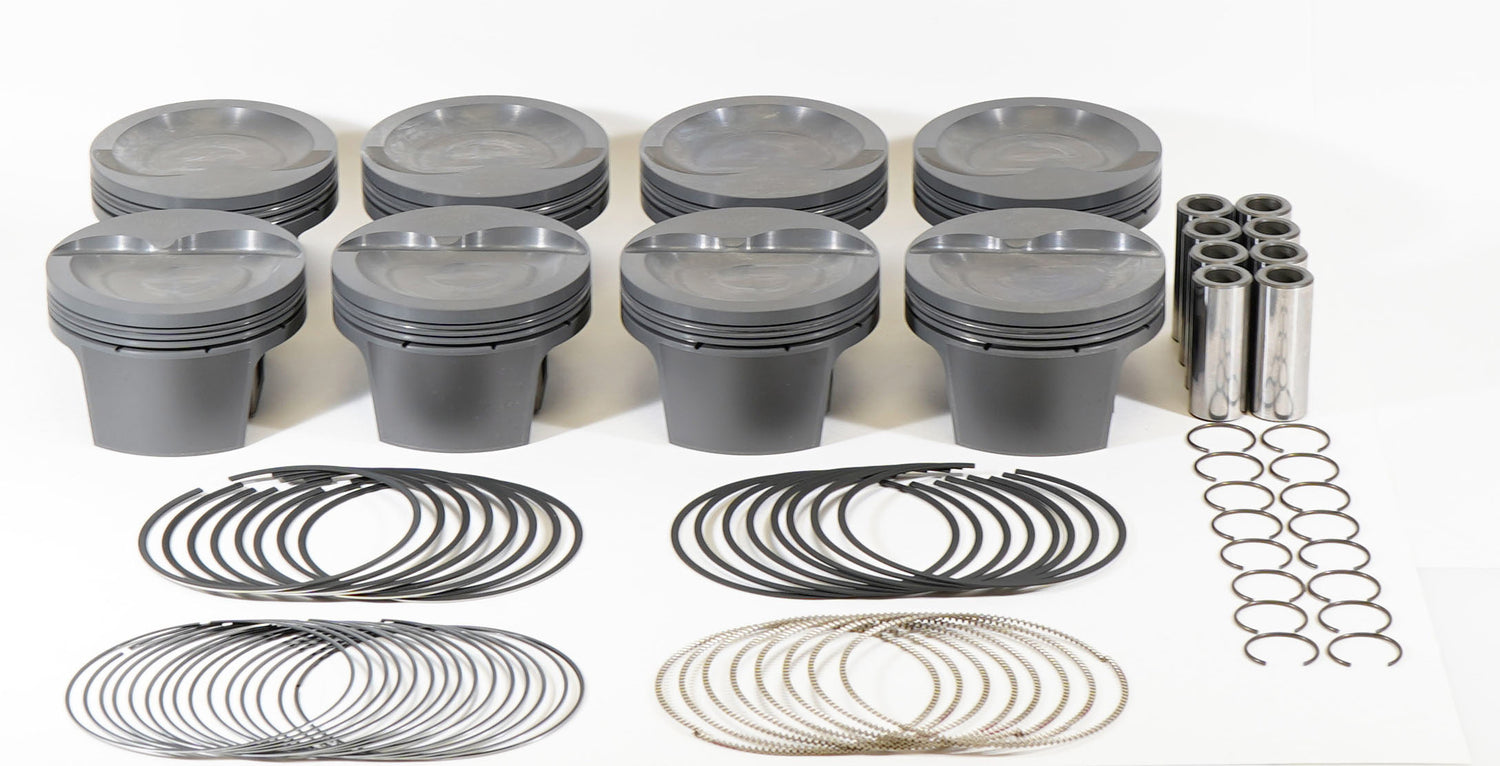

Mahle Motorsport 930248430 - Mahle MS Piston Set SBF 408ci 4.030in Bore 4.000in Stroke 6.25in Rod .927 Pin -26cc 9.5 CR Set of 8

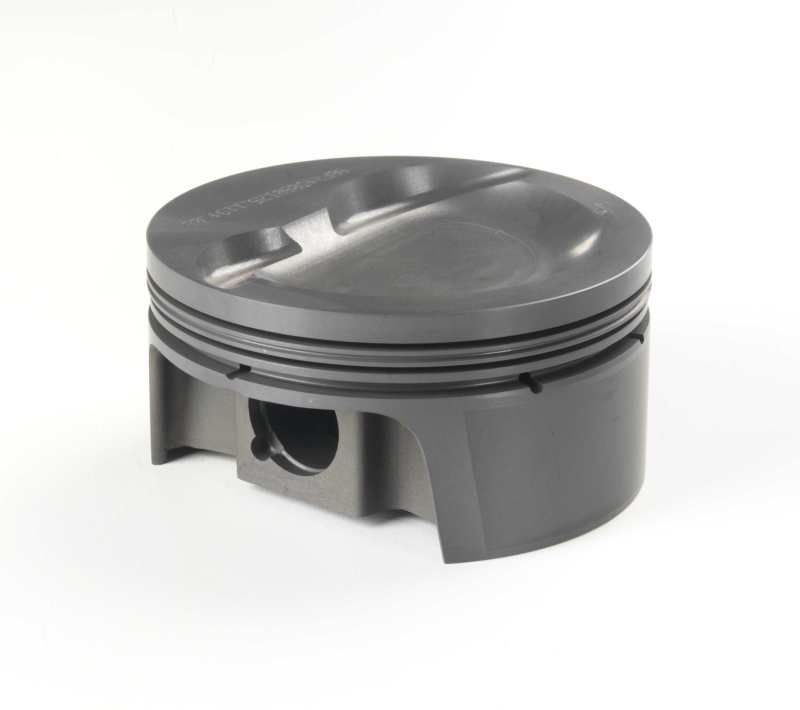

Piston (set) - SMALL BLOCK FORD INVERTED DOME
408cid 4.030 x 1.245CH, 4.000stroke,6.250rod,0.927pin,-26cc,422g,9.5CR, 4032
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -26cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Inverted Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 422g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
