Mahle Motorsport 930248140 - Mahle MS Piston Set SBF 394ci 4.040in Bore 3.85in Stroke 5.956in Rod .912 Pin -26cc 9.2 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930248140
Sale price
$76099
Regular price
$85270
Unit price
/
Unavailable
$91.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

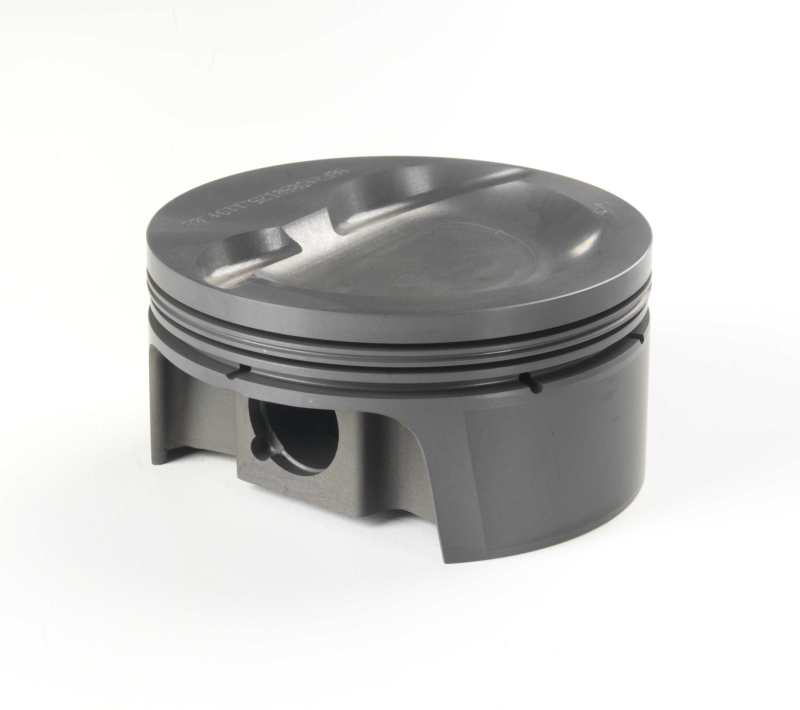

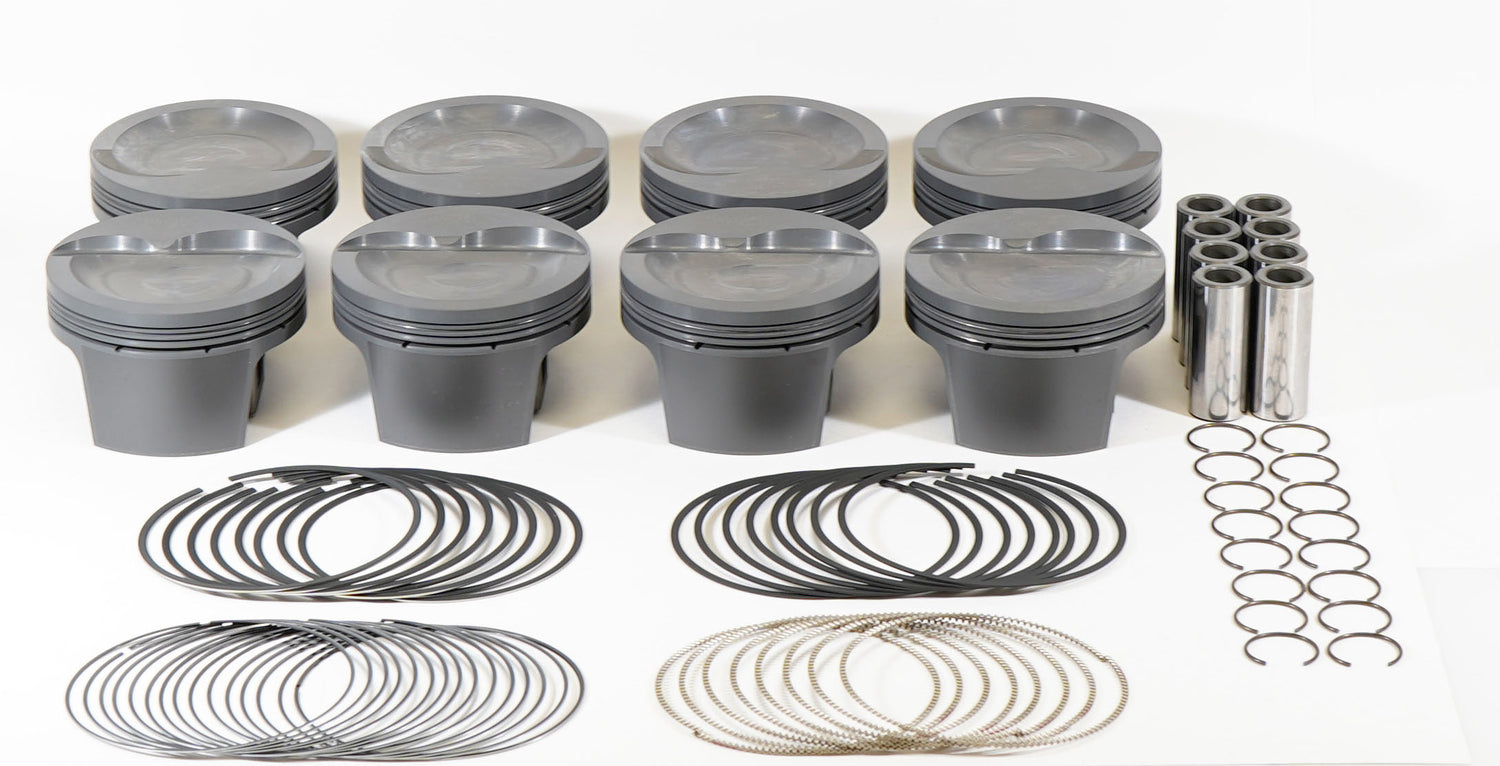

Mahle Motorsport 930248140 - Mahle MS Piston Set SBF 394ci 4.040in Bore 3.85in Stroke 5.956in Rod .912 Pin -26cc 9.2 CR Set of 8
Piston (set) - SMALL BLOCK FORD INVERTED DOME
395cid 4.040 x 1.600CH, 3.850stroke,5.956rod,0.912pin,-26cc,473g,9.2CR, 4032
Pin Mass: 116g
Pin Length: 58.1mm
Pin Diameter: 23.165mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -26cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.171
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Inverted Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 473g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
