Mahle Motorsport 930248130 - Mahle MS Piston Set SBF 392ci 4.030in Bore 3.85in Stroke 5.956in Rod .912 Pin -26cc 9.1 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930248130
Sale price
$77699
Regular price
$85270
Unit price
/
Unavailable
$75.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

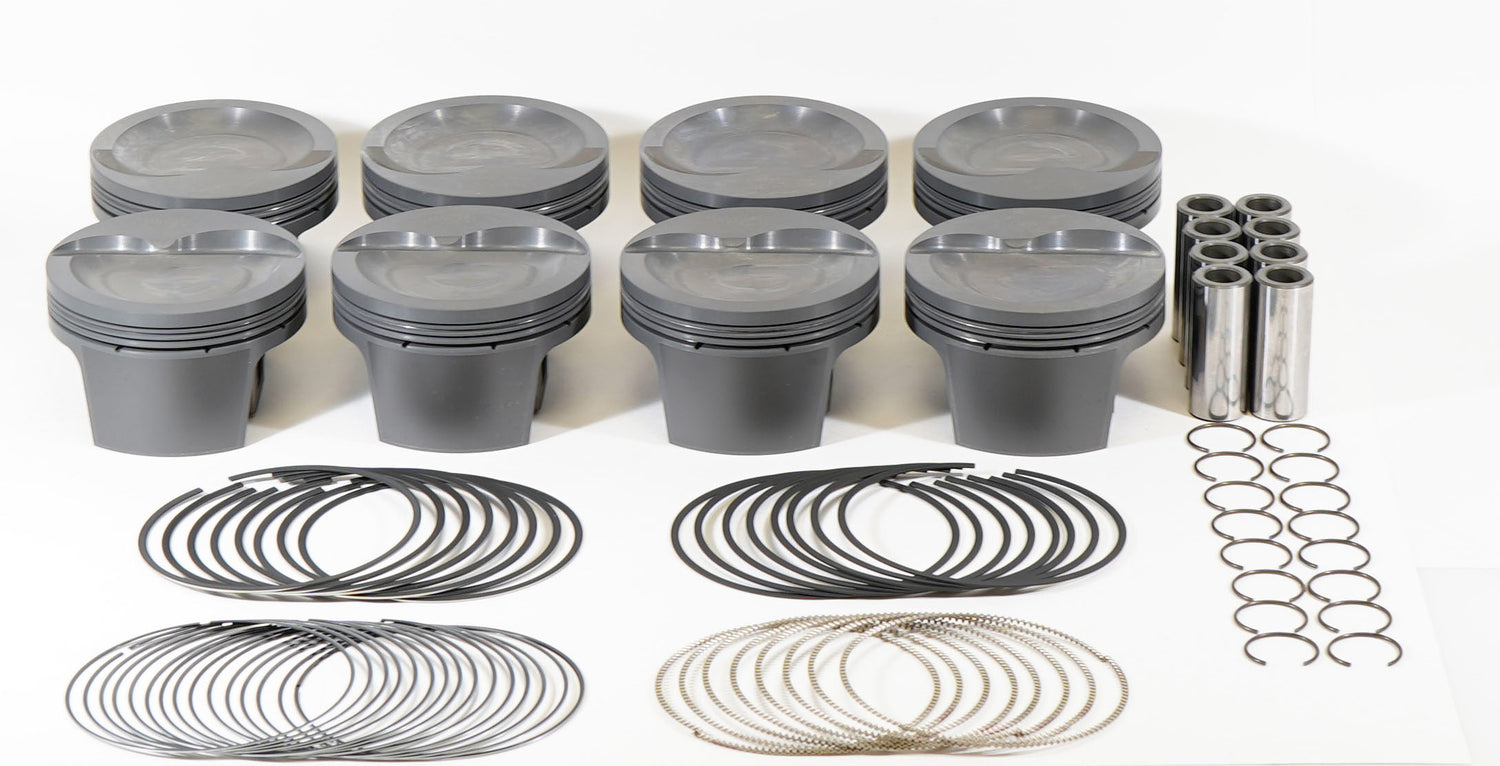

Mahle Motorsport 930248130 - Mahle MS Piston Set SBF 392ci 4.030in Bore 3.85in Stroke 5.956in Rod .912 Pin -26cc 9.1 CR Set of 8

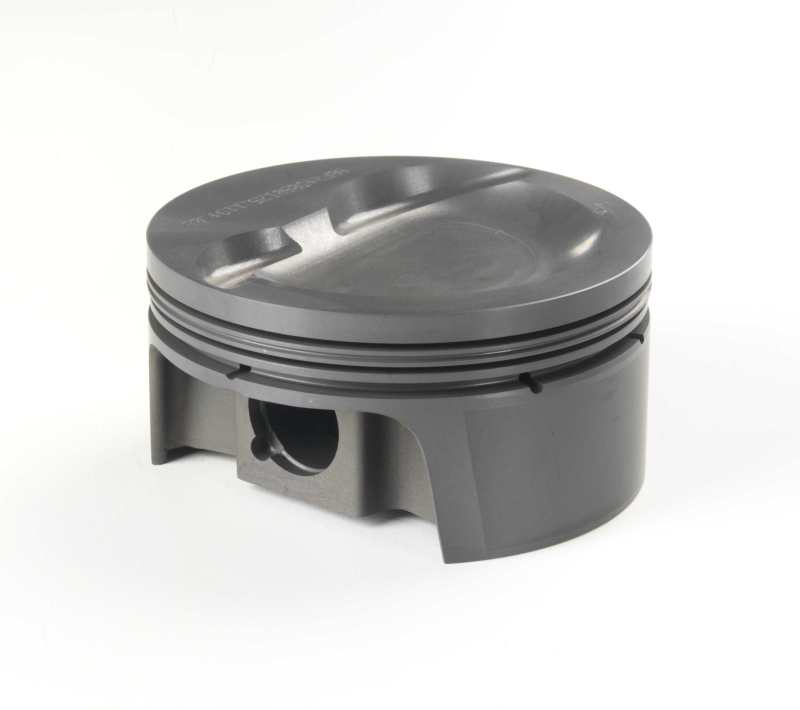

Piston (set) - SMALL BLOCK FORD INVERTED DOME
393cid 4.030 x 1.600CH, 3.850stroke,5.956rod,0.912pin,-26cc,469g,9.2CR, 4032
Piston Style: Inverted Dome, w/ 2 valve reliefs
OCR Material: Chrome plated stainless steel
Piston Material: Forged, 4032
Piston Mass: 469g
Pins Included: Y
Pin Wall Thickness: 0.171
Pin Style: Floating
Pin Material: Steel
Pin Mass: 116g
Pin Length: 58.1mm
Pin Diameter: 23.165mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -26cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
