Mahle Motorsport 930246490 - Mahle MS Piston Set BBF 502ci 4.39in Bore 4.15in Stroke 6.7in Rod 0.990 Pin -28cc 9.7 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930246490
Sale price
$83499
Regular price
$93651
Unit price
/
Unavailable
$101.52 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

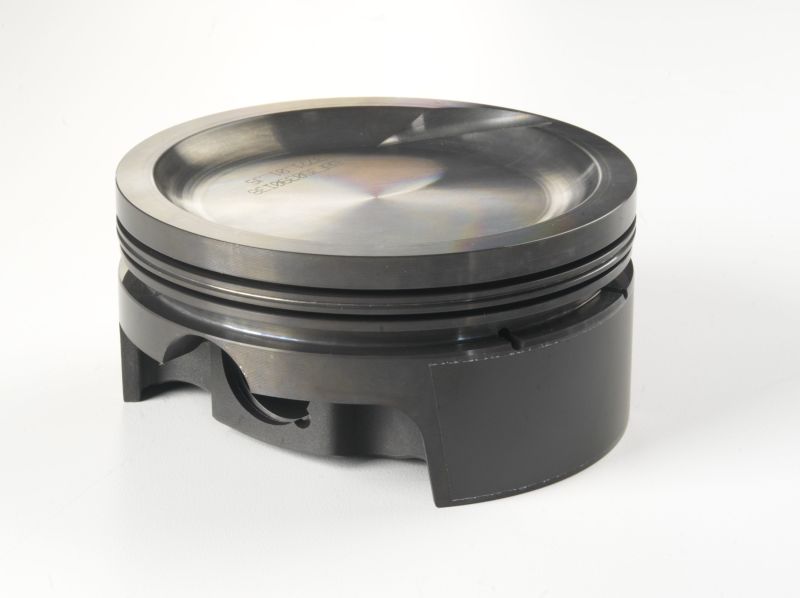

Mahle Motorsport 930246490 - Mahle MS Piston Set BBF 502ci 4.39in Bore 4.15in Stroke 6.7in Rod 0.990 Pin -28cc 9.7 CR Set of 8
Piston (set) - BIG BLOCK FORD
503cid 4.390 x 1.525CH, 4.150stroke,6.700rod,0.990pin,-28cc,533g,9.7CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Inverted Dome, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 533g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -28cc
UCR Thickness: 1.5mm
