Mahle Motorsport 930245855-1 - Mahle MS Ford SB Piston 4.155in Bore 3.400 Stroke 1.090R CH 5.400 Rod 2618 0.927 Pin Dia. - Single
Mahle Motorsport | SKU:
DGJH-930245855-1
Sale price
$7699
Regular price
$8609
Unit price
/
Unavailable
$9.10 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

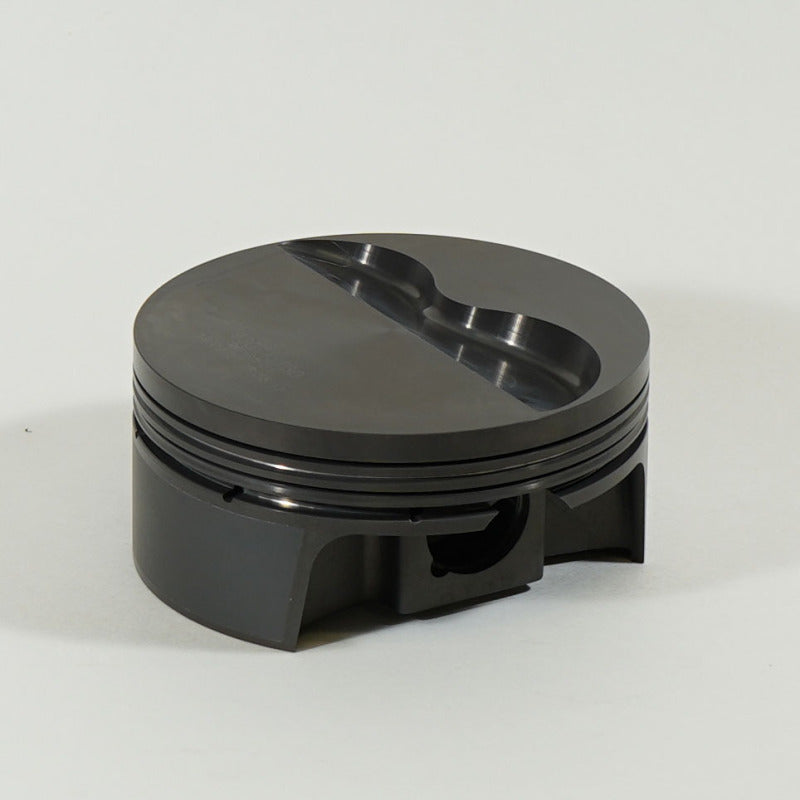

Mahle Motorsport 930245855-1 - Mahle MS Ford SB Piston 4.155in Bore 3.400 Stroke 1.090R CH 5.400 Rod 2618 0.927 Pin Dia. - Single
Piston (ea) - SMALL BLOCK FORD FLAT TOP
369cid 4.155 x 1.090RCH, 3.400stroke,5.400rod,0.927pin,-6.5cc,435g,10.5CR, 2618, SINGLE PISTON
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 435g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -6.5cc
UCR Thickness: 1.0mm
