Mahle Motorsport 930244855-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930244855-1
Sale price
$7699
Regular price
$9358
Unit price
/
Unavailable
$16.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

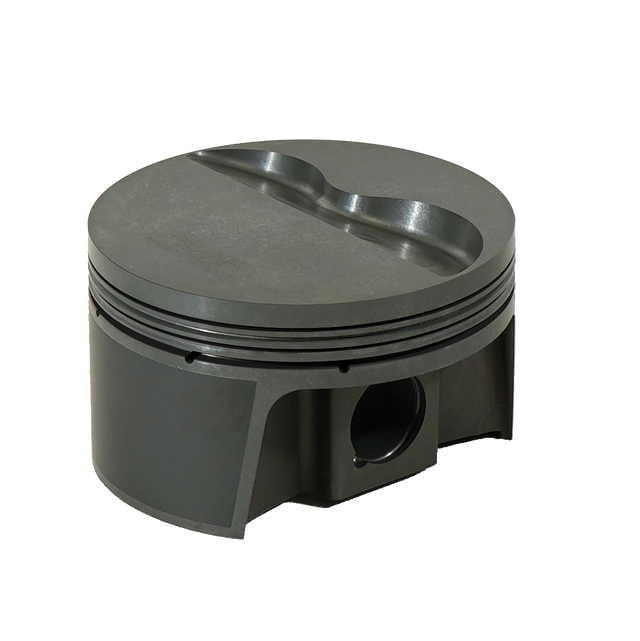

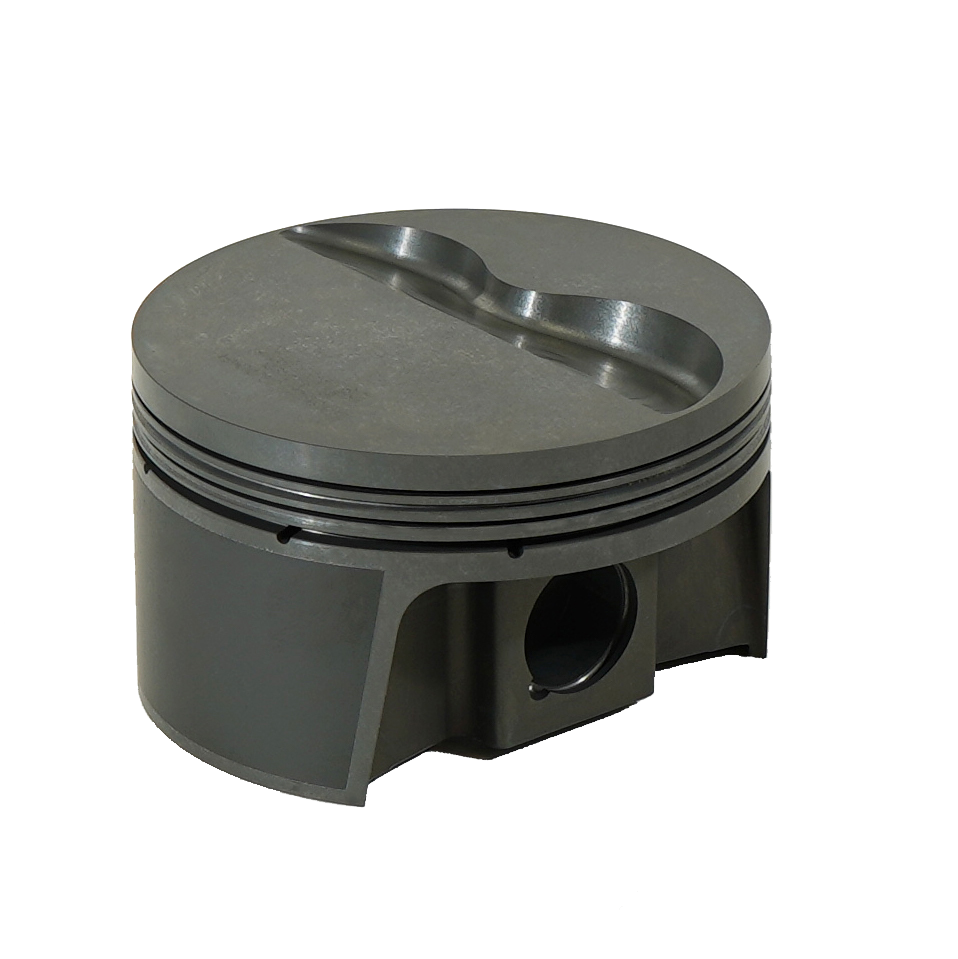

Mahle Motorsport 930244855-1 - Piston (each)
Piston (ea) - SMALL BLOCK FORD FLAT TOP
369cid 4.155 x 1.090CH, 3.400stroke,5.400rod,0.927pin,-6.5cc,424g,10.5CR, 4032, SINGLE PISTON
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -6.5cc
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Clip Style: Round Wire
OCR Thickness: 2.0mm
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 424g
Pins Included: N
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Tension: Standard
Clips Included: N
OCR Material: Chrome plated stainless steel
