Mahle Motorsport 930244455 - Mahle MS Piston Set SBF 433ci 4.155in Bore 4.000in Stroke 6.25in Rod .927 Pin -6cc 12.1 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930244455
Sale price
$65799
Regular price
$79044
Unit price
/
Unavailable
$132.45 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

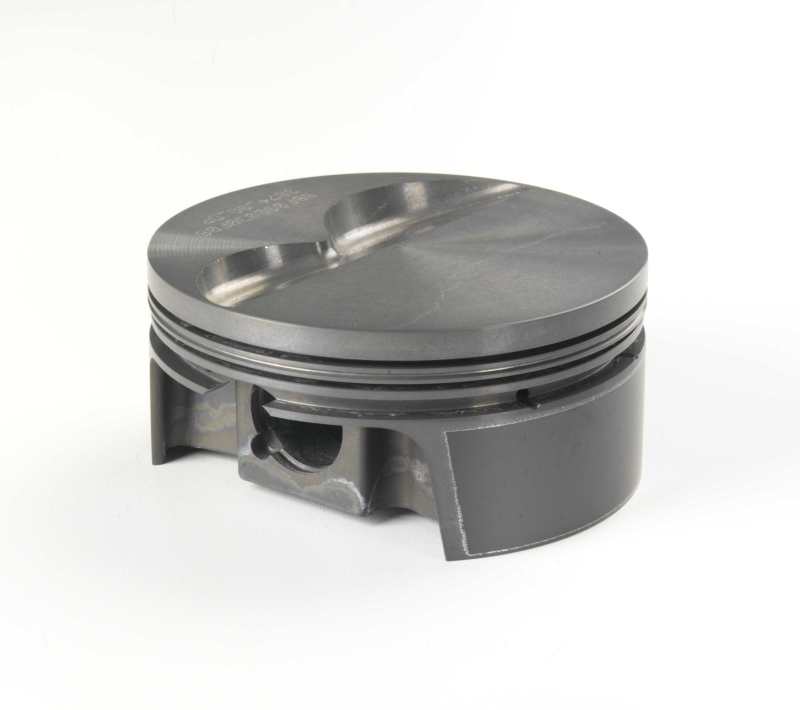

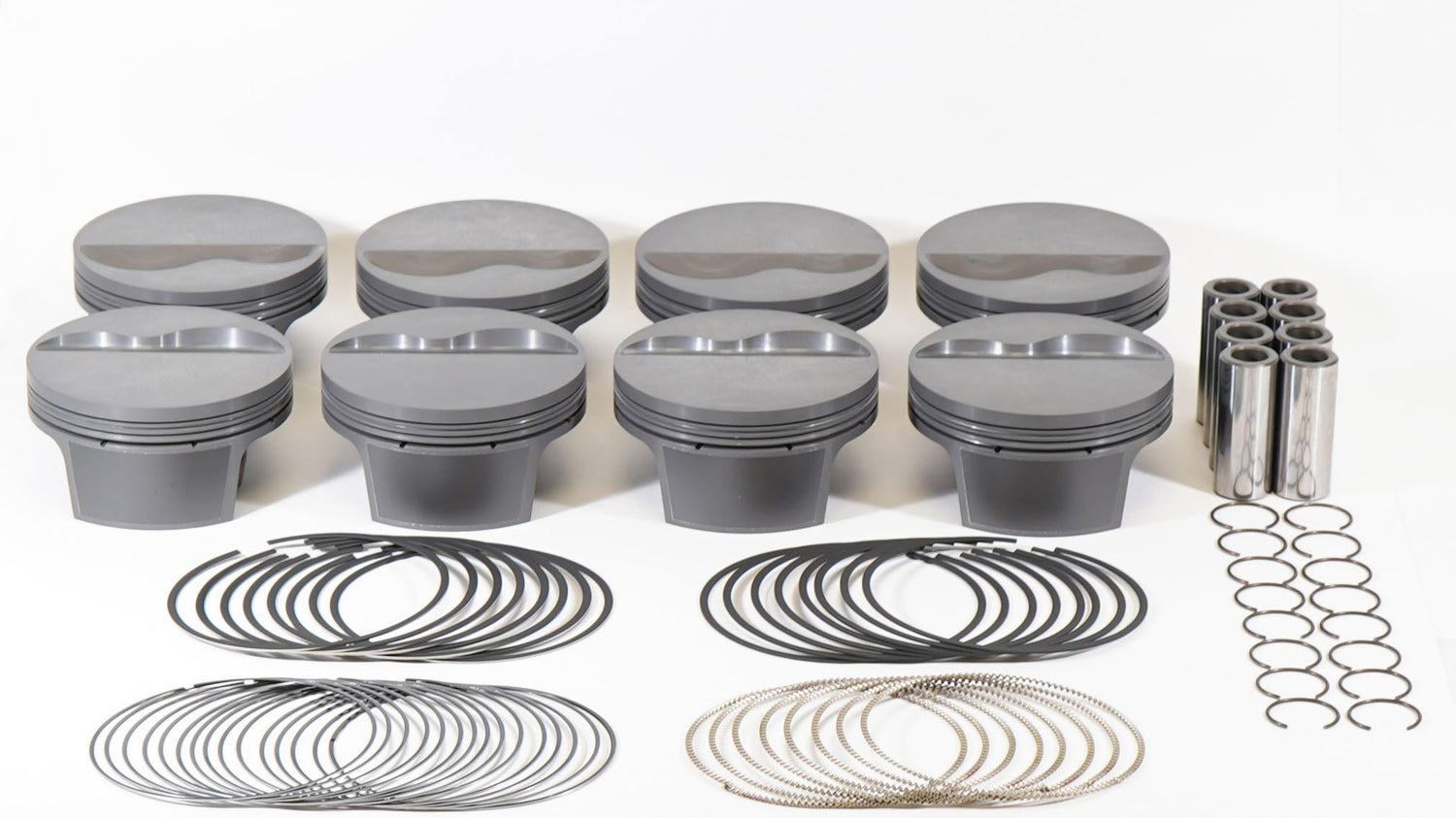

Mahle Motorsport 930244455 - Mahle MS Piston Set SBF 433ci 4.155in Bore 4.000in Stroke 6.25in Rod .927 Pin -6cc 12.1 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 4.155 in Bore - 1.245 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 6.50 cc - Small Block Ford - Kit
434cid 4.155 x 1.245CH, 4.000stroke,6.250rod,0.927pin,-6.5cc,447g,12.2CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 447g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -6.5cc
UCR Thickness: 1.0mm
