Mahle Motorsport 930244360 - Mahle MS Piston Set SBF 414ci 4.060in Bore 4.000in Stroke 6.25in Rod .927 Pin -6cc 11.7 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930244360
Sale price
$70999
Regular price
$77657
Unit price
/
Unavailable
$66.58 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

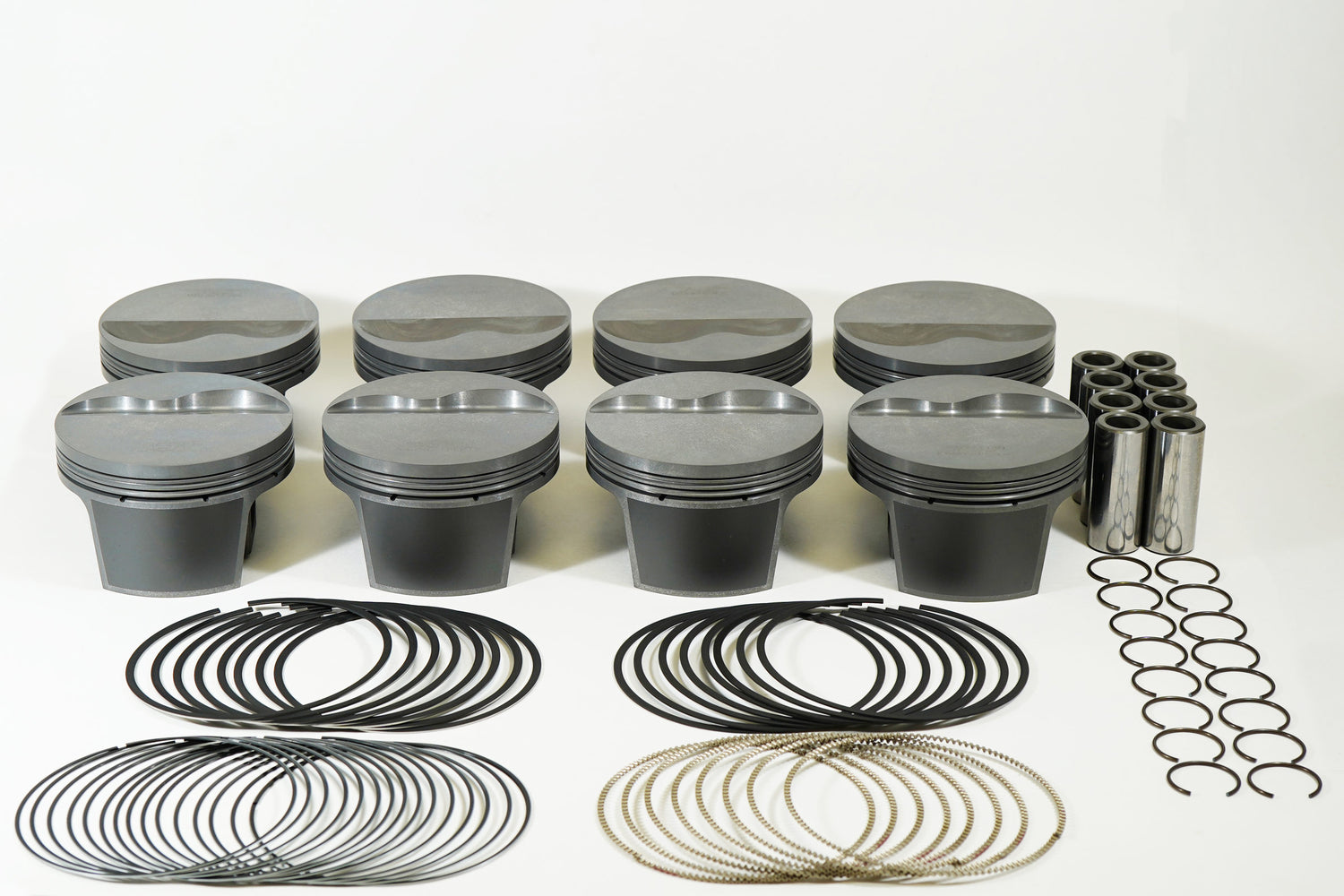

Mahle Motorsport 930244360 - Mahle MS Piston Set SBF 414ci 4.060in Bore 4.000in Stroke 6.25in Rod .927 Pin -6cc 11.7 CR Set of 8

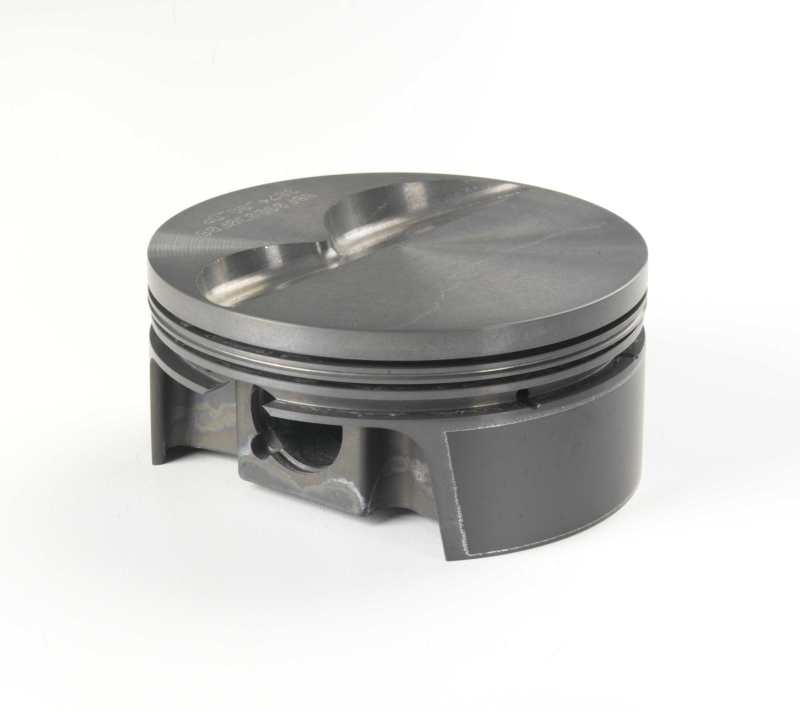

Piston (set) - SMALL BLOCK FORD FLAT TOP
414cid 4.060 x 1.245CH, 4.000stroke,6.250rod,0.927pin,-6.5cc,436g,11.7CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 436g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -6.5cc
UCR Thickness: 1.0mm
