Mahle Motorsport 930244030 - Mahle MS Piston Set SBF 358ci 4.030in Bore 3.5in Stroke 5.956in Rod .912 Pin -6cc 10.3 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930244030
Sale price
$70999
Regular price
$77657
Unit price
/
Unavailable
$66.58 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

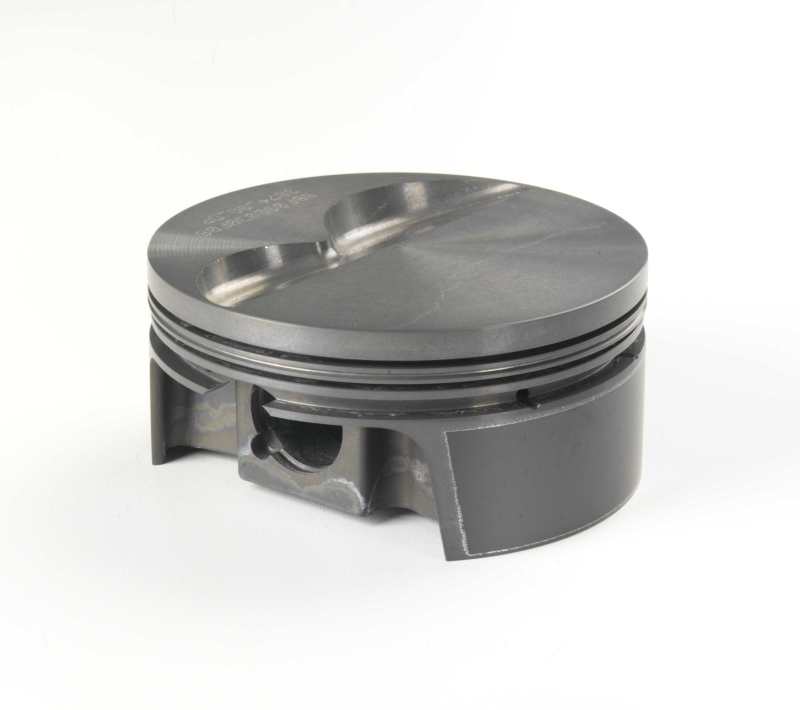

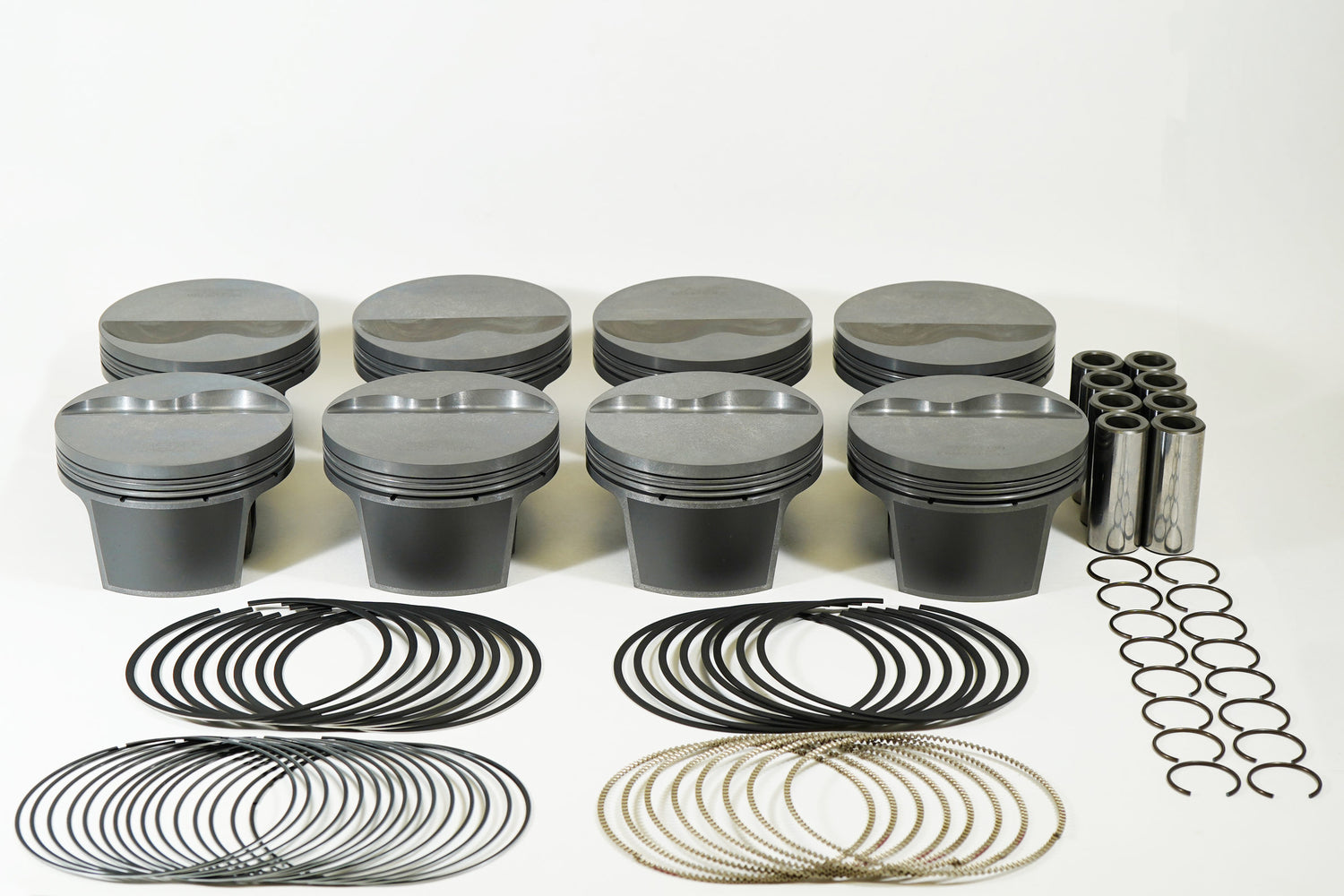

Mahle Motorsport 930244030 - Mahle MS Piston Set SBF 358ci 4.030in Bore 3.5in Stroke 5.956in Rod .912 Pin -6cc 10.3 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 4.030 in Bore - 1.775 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 6.5 cc - Small Block Ford - Kit
357cid 4.030 x 1.775CH, 3.500stroke,5.956rod,0.912pin,-6.5cc,489g,10.3CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.171
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 489g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 116g
Pin Length: 58.1mm
Pin Diameter: 23.165mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -6.5cc
UCR Thickness: 1.0mm
