Mahle Motorsport 930240005-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930240005-1
Sale price
$9999
Regular price
$12141
Unit price
/
Unavailable
$21.42 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

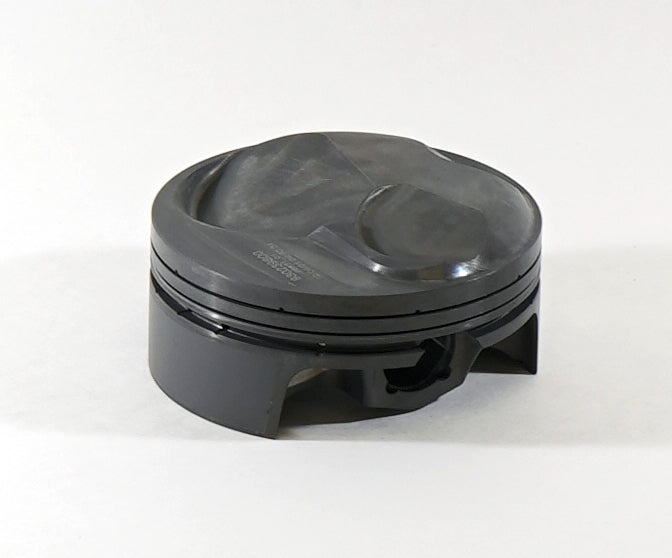

Mahle Motorsport 930240005-1 - Piston (each)
Piston (ea) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 20 Deg
566cid 4.605 x 1.270CH, 4.250stroke,6.385rod,0.990pin,28.0cc,645g,15.5CR, 2618, SINGLE PISTON
Pins Included: N
Pin Wall Thickness: 0.18
Pin Material: Steel
UCR Thickness: 0.043
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 28.0cc
Clips Included: N
Clip Style: Round Wire
Rings Included: N
Pin Style: Floating
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 645g
