Mahle Motorsport 930239410 - Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.610in. Bore/15.6 CR/584ci/4.375in. Stroke
Mahle Motorsport | SKU:
DGJH-930239410
Sale price
$94199
Regular price
$1,11819
Unit price
/
Unavailable
$176.20 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

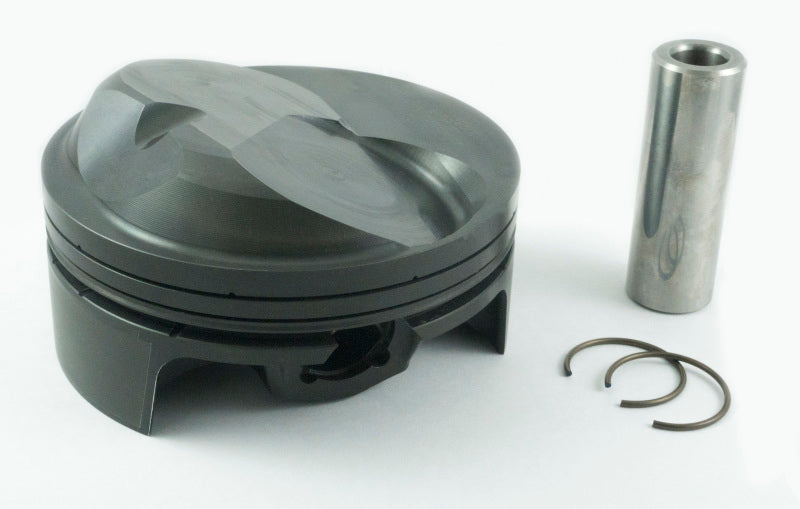

Mahle Motorsport 930239410 - Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.610in. Bore/15.6 CR/584ci/4.375in. Stroke
Piston - Elite Sportsman - Forged - Dome - 4.610 in Bore - 1.215 in Compression Height - 0.043 x 0.043 x 3 mm Ring Grooves - Plus 47.10 cc - Big Block Chevy - Set of 8
584cid 4.610 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,47.1cc,658g,15.6CR, 2618
Clip Style: Round Wire
Pins Included: Y
Rings Included: N
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 658g
Pin Wall Thickness: 0.18
Clips Included: Y
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm

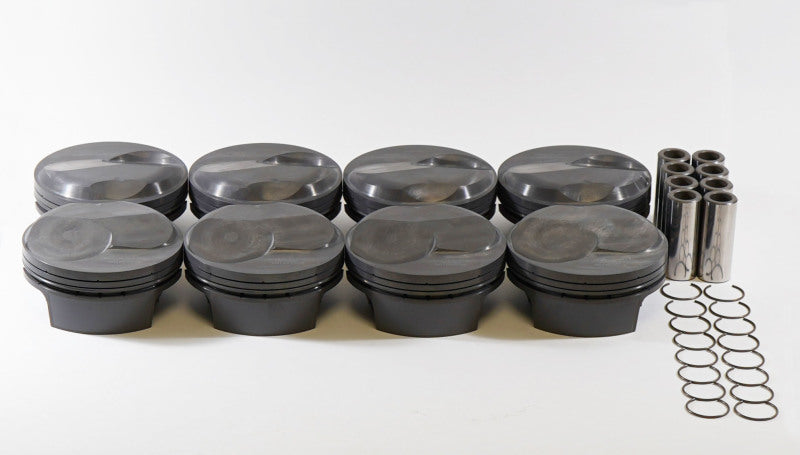

Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 47.1cc
UCR Thickness: 0.043
