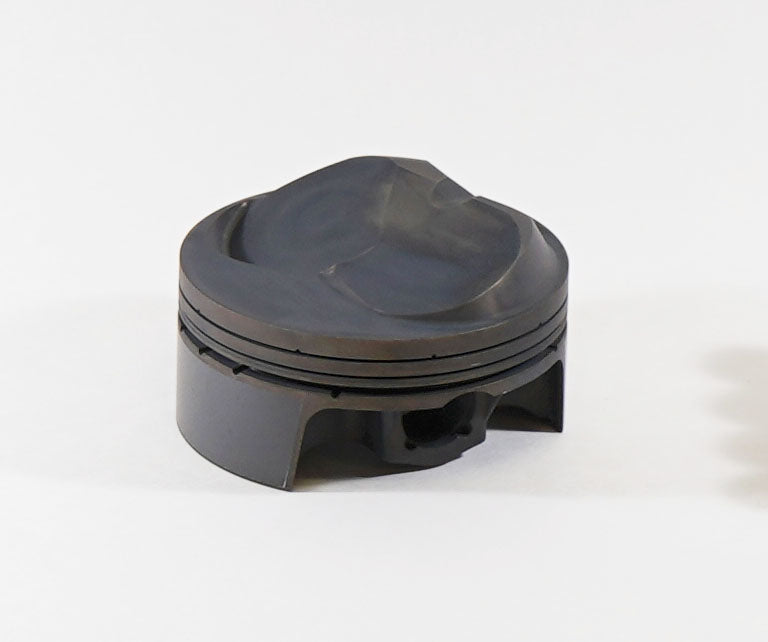

Mahle Motorsport 930239305-1 - Piston (each)
Piston (ea) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg
566cid 4.605 x 1.270CH, 4.250stroke,6.385rod,0.990pin,47.1cc,670g,15.2CR, 2618, SINGLE PISTON
Clip Style: Round Wire
Pins Included: N
Rings Included: N
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 670g
Pin Wall Thickness: 0.18
Clips Included: N
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 47.1cc
UCR Thickness: 0.043
