Mahle Motorsport 930239205 - Mahle Chevy Big Block 600cid 4.605Bore 4.5Stk 6.385Rod 0.990Pin Forged Dome PowerPak Pistons
Mahle Motorsport | SKU:
DGJH-930239205
Sale price
$1,00999
Regular price
$1,11819
Unit price
/
Unavailable
$108.20 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

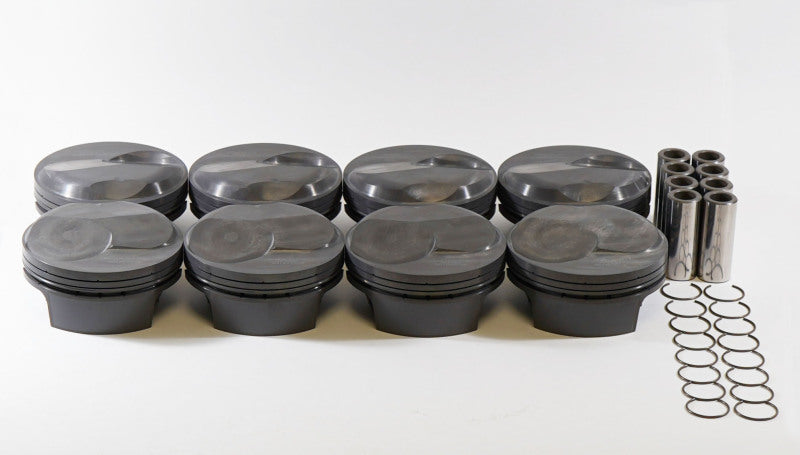

Mahle Motorsport 930239205 - Mahle Chevy Big Block 600cid 4.605Bore 4.5Stk 6.385Rod 0.990Pin Forged Dome PowerPak Pistons
Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg
600cid 4.605 x 1.155RCH, 4.500stroke,6.385rod,0.990pin,45.0cc,637g,15.6CR, 2618
Clip Style: Round Wire
Pins Included: Y
Rings Included: N
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 637g
Pin Wall Thickness: 0.18
Clips Included: Y
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 45.0cc
UCR Thickness: 0.043
