Mahle Motorsport 930239110 - Mahle MS Piston Set Chevy Big Block 568ci 4.61in Bore 4.25in Stk 6.535in Rod .99 Pin - Set of 8
Mahle Motorsport | SKU:
DGJH-930239110
Sale price
$1,00999
Regular price
$1,11819
Unit price
/
Unavailable
$108.20 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

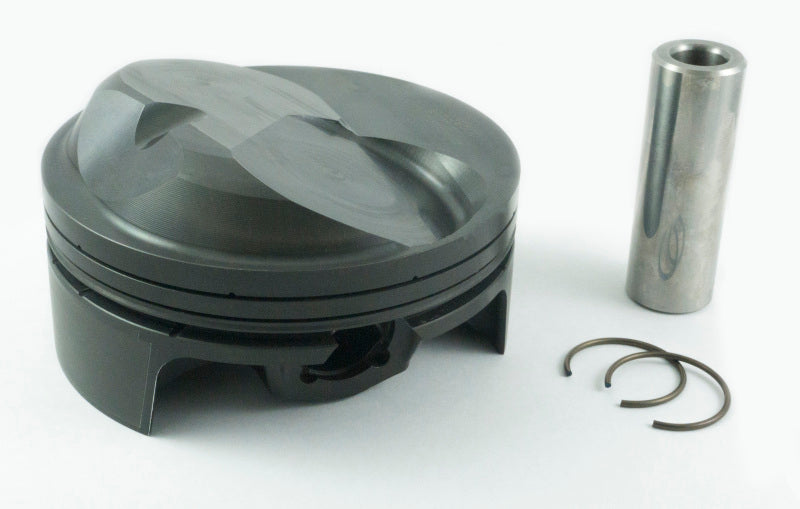

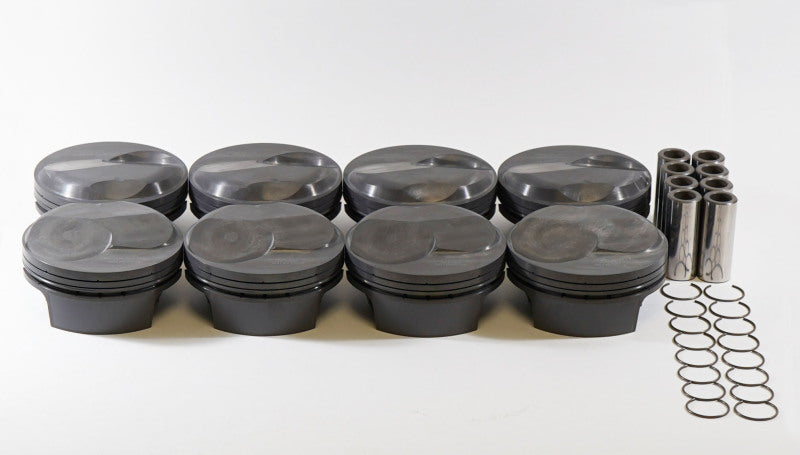

Mahle Motorsport 930239110 - Mahle MS Piston Set Chevy Big Block 568ci 4.61in Bore 4.25in Stk 6.535in Rod .99 Pin - Set of 8
Piston - Elite Sportsman - Forged - Dome - 4.610 in Bore - 1.120 in Compression Height - 0.043 x 0.043 x 3 mm Ring Grooves - Plus 42.00 cc - Big Block Chevy - Set of 8
568cid 4.610 x 1.120RCH, 4.250stroke,6.535rod,0.990pin,42.0cc,623g,14.4CR, 2618
Clip Style: Round Wire
Pins Included: Y
Rings Included: N
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 623g
Pin Wall Thickness: 0.18
Clips Included: Y
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 42.0cc
UCR Thickness: 0.043
