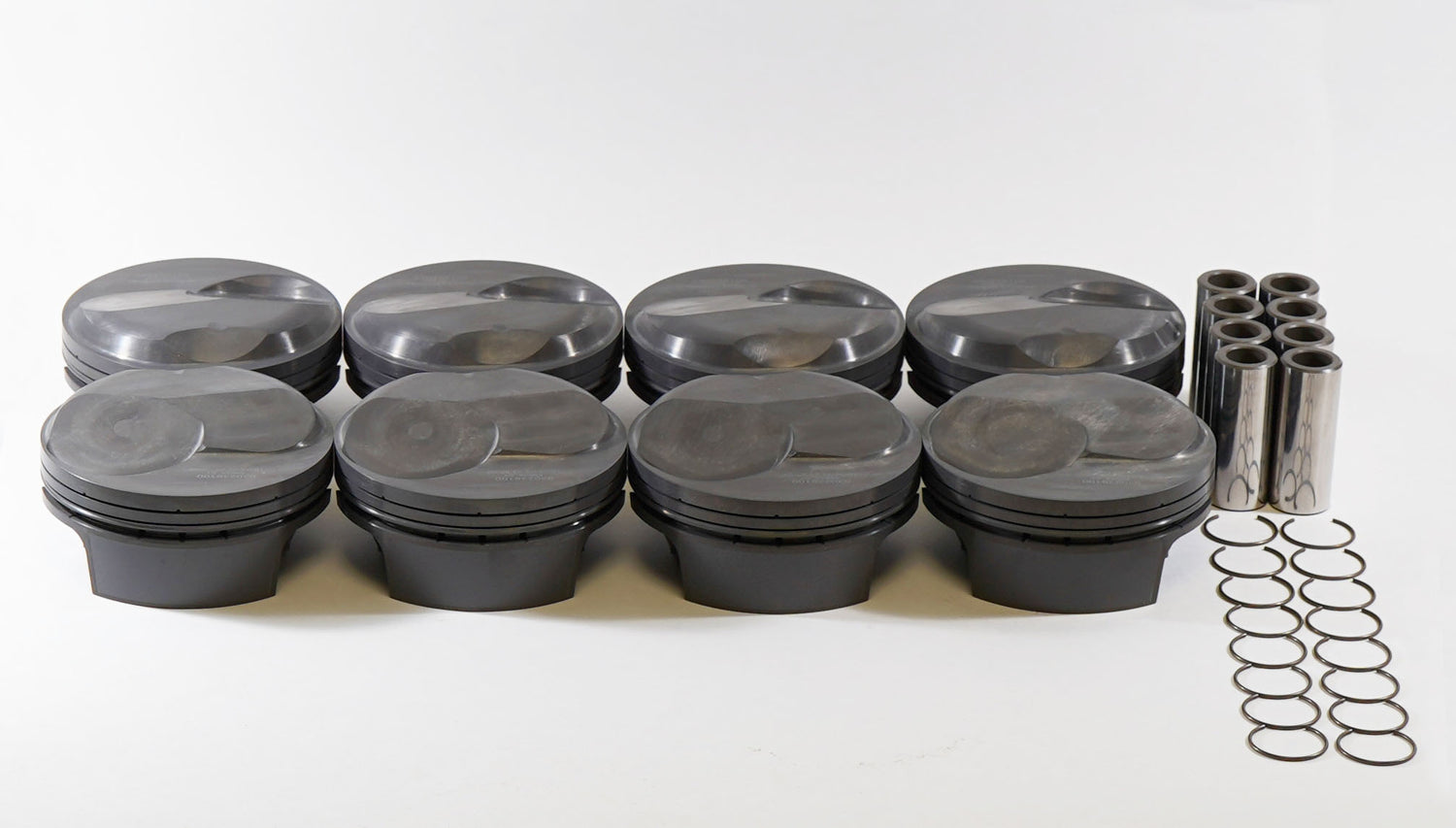

Mahle Motorsport 930239100 - Mahle MS Piston Chevy 565ci 4.600in Bore 4.250in Stroke 6.535in Rod .990 Pin 42cc 14.3 CR - Set of 8
Piston - Elite Sportsman - Forged - Dome - 4.600 in Bore - 1.120 in Compression Height - 0.043 x 0.043 x 3 mm Ring Grooves - Plus 42.00 cc - Big Block Chevy - Set of 8
565cid 4.600 x 1.120RCH, 4.250stroke,6.535rod,0.990pin,42.0cc,619g,14.3CR, 2618
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 619g
Pin Wall Thickness: 0.18
Clips Included: Y
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 42.0cc
UCR Thickness: 0.043
Clip Style: Round Wire
Pins Included: Y
Rings Included: N
Piston Style: Dome, w/ INT valve relief
