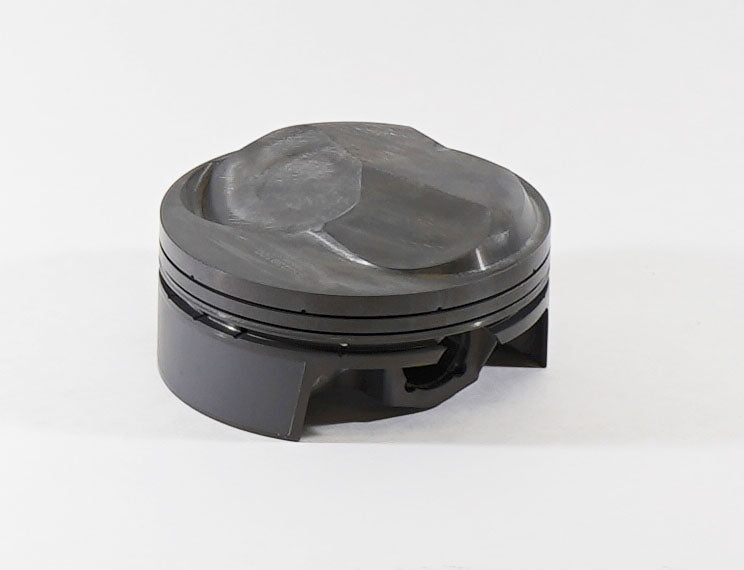

Mahle Motorsport 930239100-1 - Mahle MS Piston Chevy 565ci 4.600in Bore 4.250in Stroke 6.535in Rod .990 Pin 42cc 14.3 CR - Single
Mahle Motorsport | SKU:
DGJH-930239100-1
Sale price
$9999
Regular price
$11170
Unit price
/
Unavailable
$11.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930239100-1 - Mahle MS Piston Chevy 565ci 4.600in Bore 4.250in Stroke 6.535in Rod .990 Pin 42cc 14.3 CR - Single
Piston (ea) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg
565cid 4.600 x 1.120RCH, 4.250stroke,6.535rod,0.990pin,42.0cc,619g,14.3CR, 2618, SINGLE PISTON
Clip Style: Round Wire
Pins Included: N
Rings Included: N
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 619g
Pin Wall Thickness: 0.18
Clips Included: N
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 42.0cc
UCR Thickness: 0.043
