Mahle Motorsport 930229725-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930229725-1
Sale price
$7699
Regular price
$9358
Unit price
/
Unavailable
$16.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

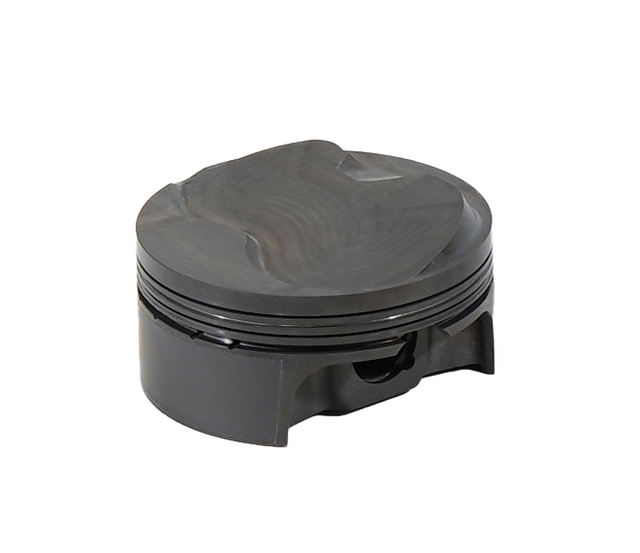

Mahle Motorsport 930229725-1 - Piston (each)
Piston (ea) - LSX Large Bore FLAT TOP, DISH & DOME
428cid 4.125 x 1.110RCH, 4.000stroke,6.125rod,0.927pin,5.6cc,482g,13.0CR, 2618, SINGLE PISTON
Piston Style: Dome, w/ 2 valve reliefs
OCR Material: Chrome plated stainless steel
Piston Material: Forged, 2618
Piston Mass: 482g
Pins Included: N
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 5.6cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
