Mahle Motorsport 930227930 - Mahle MS Piston Set Chevrolet LS 408 CID 4.030in Bore 4.000 Stroke 1.110 CH 6.125 Rod 11.6 CR

Mahle Motorsport  |  SKU: DGJH-930227930
$72499 $81236

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

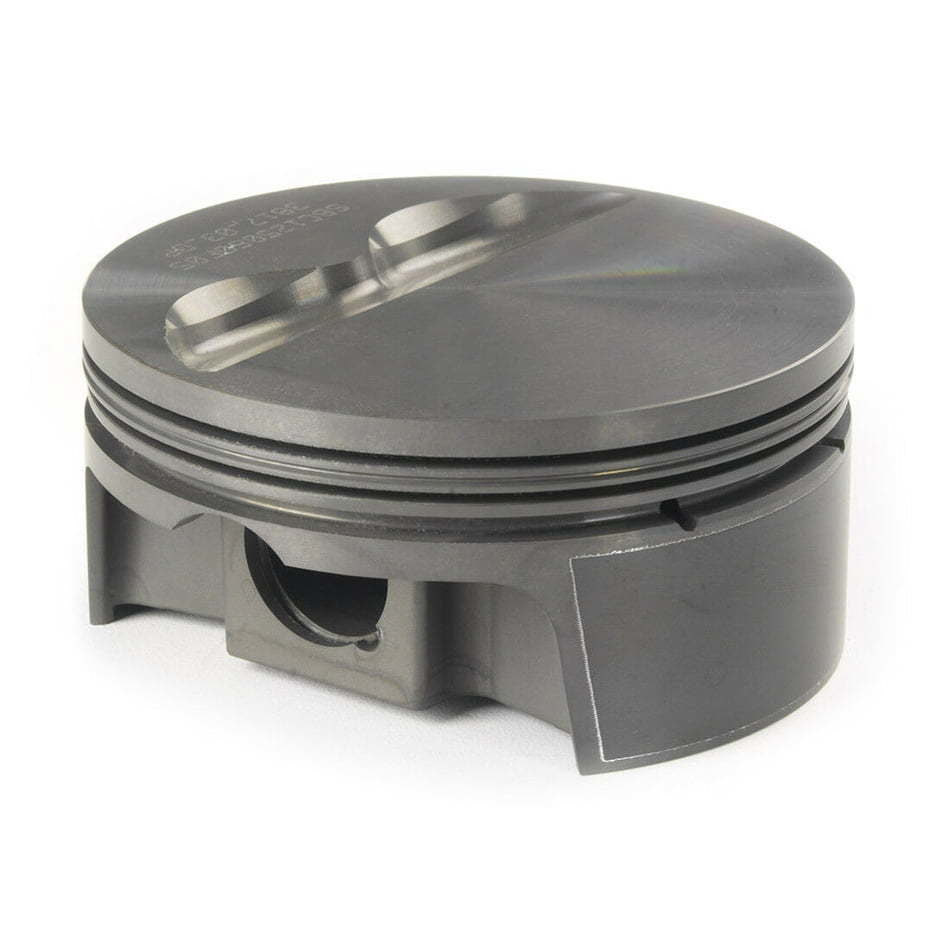

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mahle Motorsport 930227930 - Mahle MS Piston Set Chevrolet LS 408 CID 4.030in Bore 4.000 Stroke 1.110 CH 6.125 Rod 11.6 CR

Piston and Ring - PowerPak - Forged - Flat Top - 4.030 in Bore - 1.110 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 5.8 cc - GM LS-Series - Kit

408cid 4.030 x 1.110CH, 4.000stroke,6.125rod,0.927pin,-5.8cc,413g,11.6CR, 4032

Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 413g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -5.8cc
UCR Thickness: 1.0mm
