Mahle Motorsport 930225475 - Mahle MS Chevrolet LS 378cid 4.075in Bore 3.622 Stroke 6.125 Rod 1.304 CH -12.0cc Piston Set of 8
Mahle Motorsport | SKU:
DGJH-930225475
Sale price
$78799
Regular price
$85270
Unit price
/
Unavailable
$64.71 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

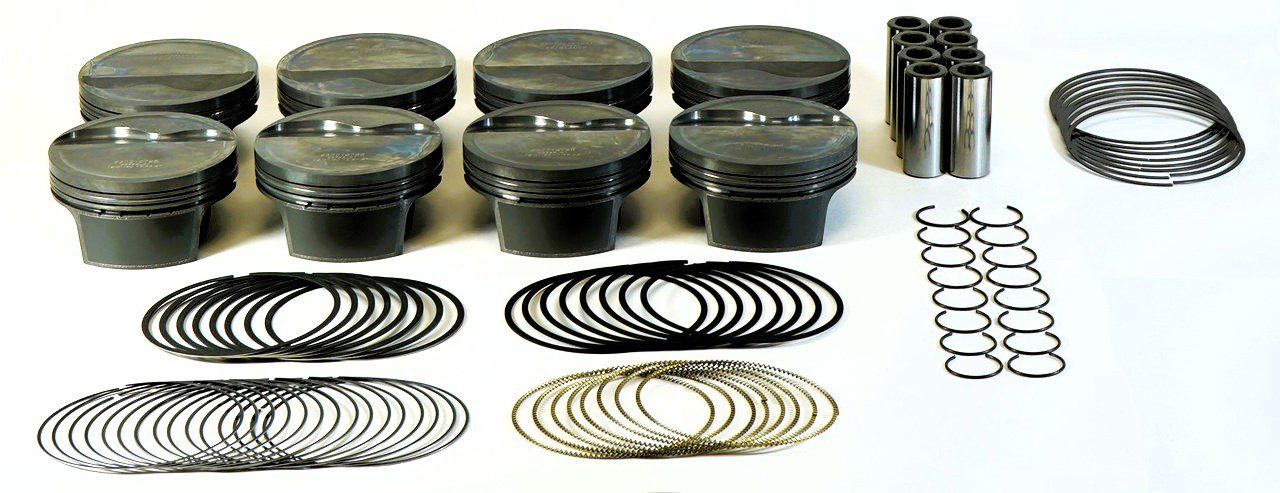

Mahle Motorsport 930225475 - Mahle MS Chevrolet LS 378cid 4.075in Bore 3.622 Stroke 6.125 Rod 1.304 CH -12.0cc Piston Set of 8
Piston and Ring - PowerPak - Dished - Forged - Dish - 4.075 in Bore - 1.304 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 12.00 cc - GM LS-Series - Kit
378cid 4.075 x 1.304CH, 3.622stroke,6.125rod,0.927pin,-12.0cc,461g,9.5CR, 2618
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -12.0cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 461g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
