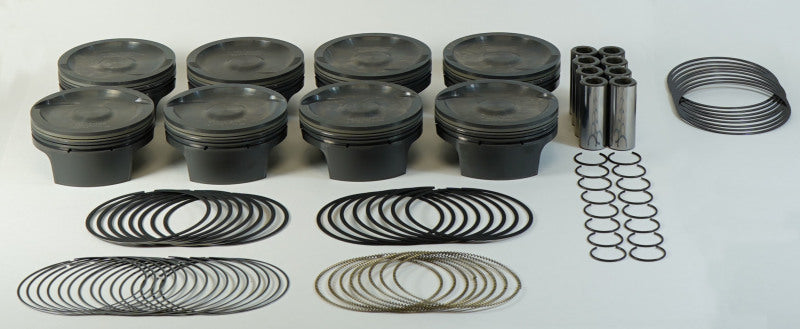

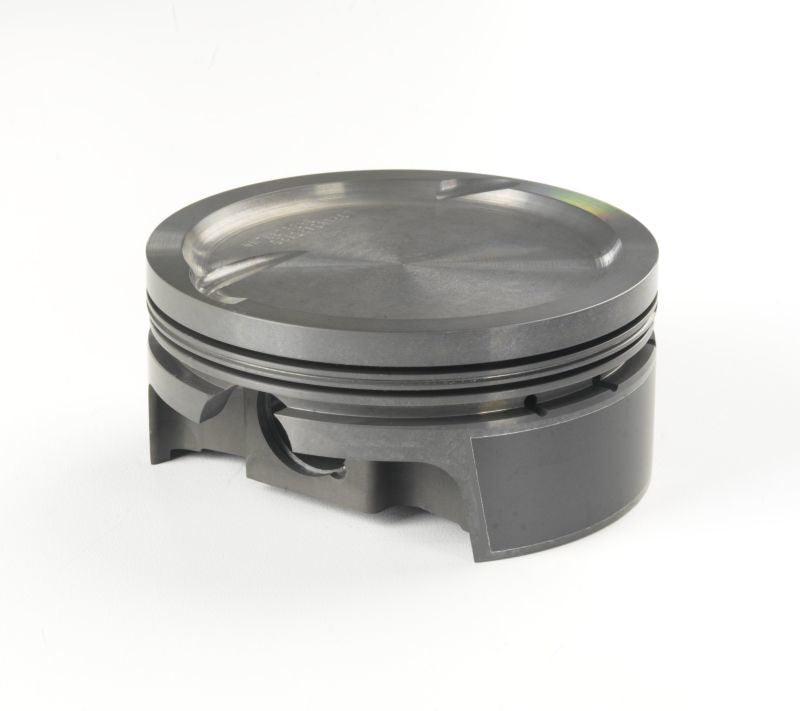

Mahle Motorsport 930224970 - Mahle MS Piston Set GM LS 416ci 4.07in Bore 4in Stroke 6.125in Rod .927 Pin -25cc 9.0 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930224970
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930224970 - Mahle MS Piston Set GM LS 416ci 4.07in Bore 4in Stroke 6.125in Rod .927 Pin -25cc 9.0 CR Set of 8
416ci,4.07bore,4.000stroke,6.125rod,1.105Rch,.927pin,-25cc,433g,9.0cr,2618
LS 6.0L & 6.2L DISH - compatable with LS3 / L92 style rectangular port heads 416cid 4.070 x 1.105RCH, 4.000stroke,6.125rod,0.927pin,-25.0cc,442g,9.2CR, 2618.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol: -25.0cc
Package Qty: Sold as a set of 8
Pin Diameter: 0.927
Pin Length: 2.287
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 442g
Piston Material: Forged, 2618
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dish, w/ 2 valve reliefs
Rings Included: Yes
