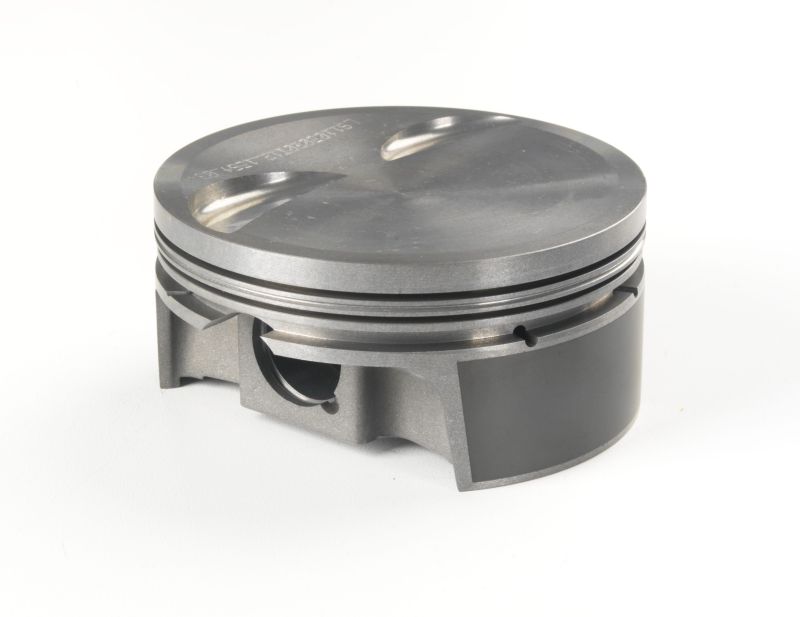

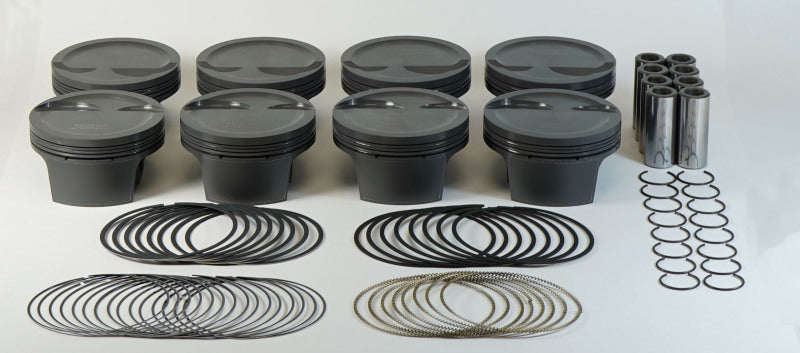

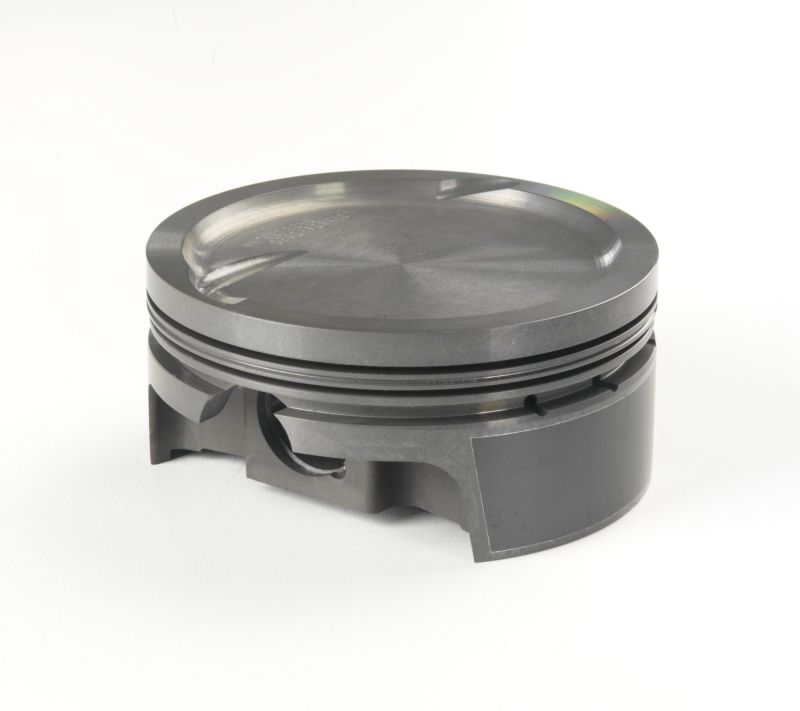

Mahle Motorsport 930224570 - Mahle MS Piston Set GM LS 376ci 4.07in Bore 3.622in Stk 6.125in Rod .927 Pin -12cc 9.3 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930224570
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930224570 - Mahle MS Piston Set GM LS 376ci 4.07in Bore 3.622in Stk 6.125in Rod .927 Pin -12cc 9.3 CR Set of 8
4.070bore,3.622stroke,6.125rod,1.314c/h,0.927pin,-12ccvol,466g,9.3c/r,2618 1mm,1
LS 6.0L & 6.2L DISH - compatable with LS3 / L92 style rectangular port heads 377cid 4.070 x 1.314CH, 3.622stroke,6.125rod,0.927pin,-12.1cc,475g,9.5CR, 2618.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal
Crown Vol: -12.1cc
Package Qty: Sold as a set of 8
Pin Diameter: 0.927
Pin Length: 2.287
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 475g
Piston Material: Forged, 2618
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dish, w/ 2 valve reliefs
Rings Included: Yes
