Mahle Motorsport 930223275 - Mahle MS Piston Set GM LS 417ci 4.075in Bore 4in Stk 6.125in Rod .927 Pin -4cc 11.2 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930223275
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930223275 - Mahle MS Piston Set GM LS 417ci 4.075in Bore 4in Stk 6.125in Rod .927 Pin -4cc 11.2 CR Set of 8
417ci,4.075bore,4.000stroke,6.125rod,1.105Rch,0.927pin,-4cc,418g,11.2cr,4032
LS 6.0L & 6.2L FLAT TOP - compatable with LS3 / L92 style rectangular port heads 417cid 4.075 x 1.105CH, 4.000stroke,6.125rod,0.927pin,-4.3cc,430g,11.3CR, 4032.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal
Crown Vol: -4.3cc

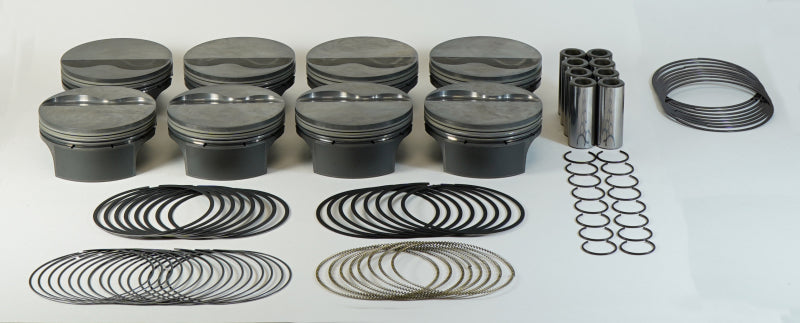

Package Qty: Sold as a set of 8
Pin Diameter: 0.927
Pin Length: 2.287
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 430g
Piston Material: Forged, 4032
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm

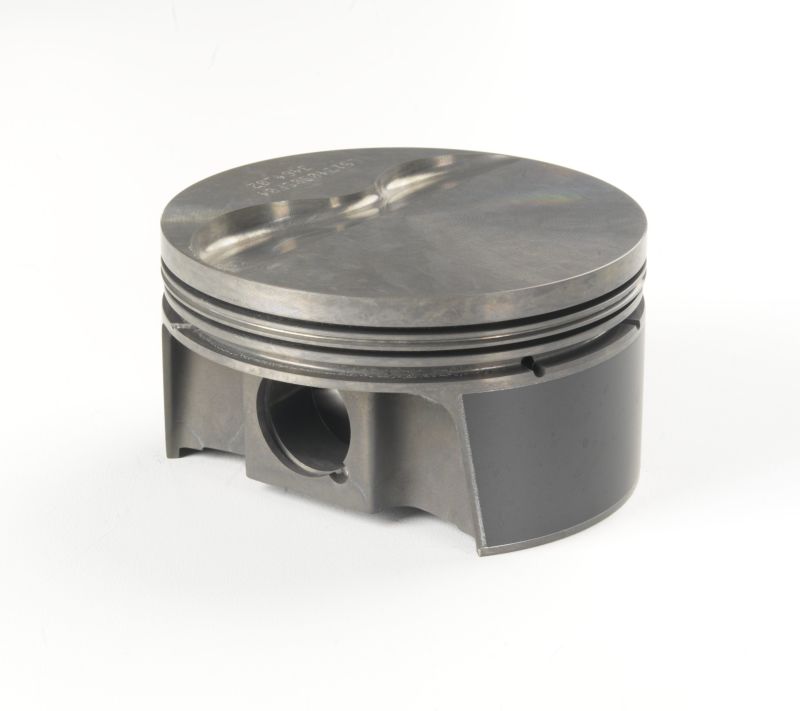

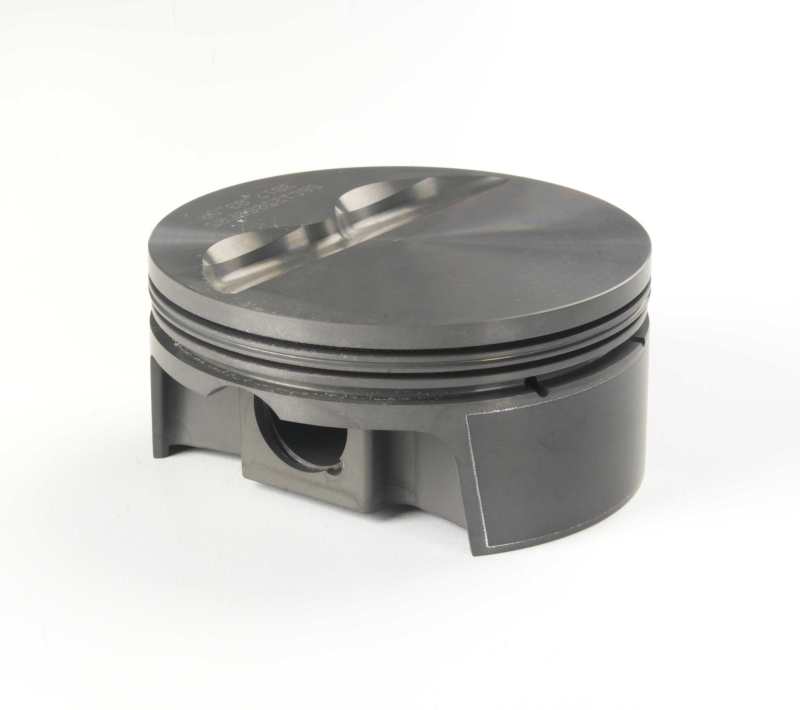

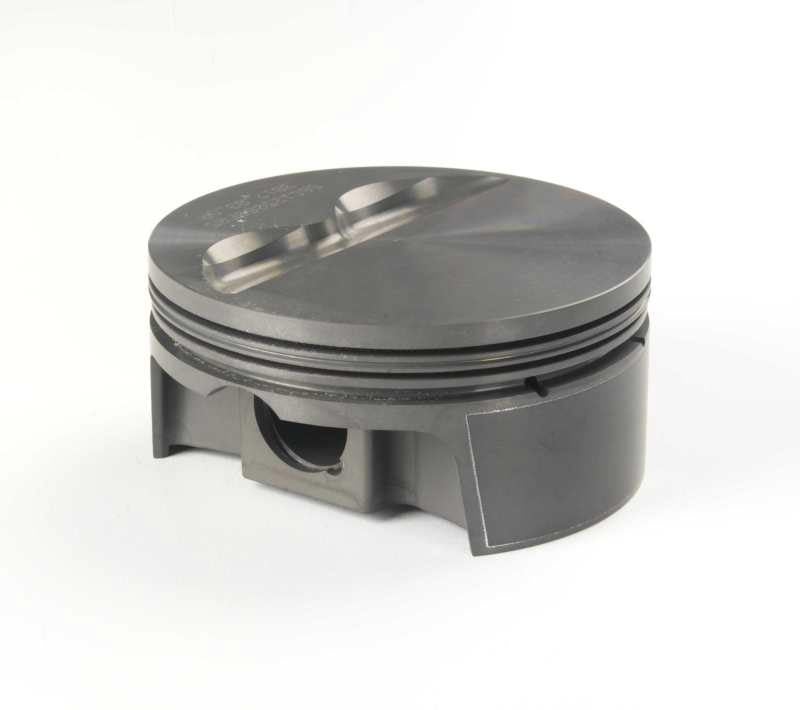

Piston Style: Flattop, w/ 2 valve reliefs
Rings Included: Yes
