Mahle Motorsport 930219330 - Mahle MS Piston Set GM LS 408ci 4.030in Bore 4in Stroke 6.125in Rod .927 Pin -12cc 10.6 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930219330
Sale price
$77699
Regular price
$85270
Unit price
/
Unavailable
$75.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

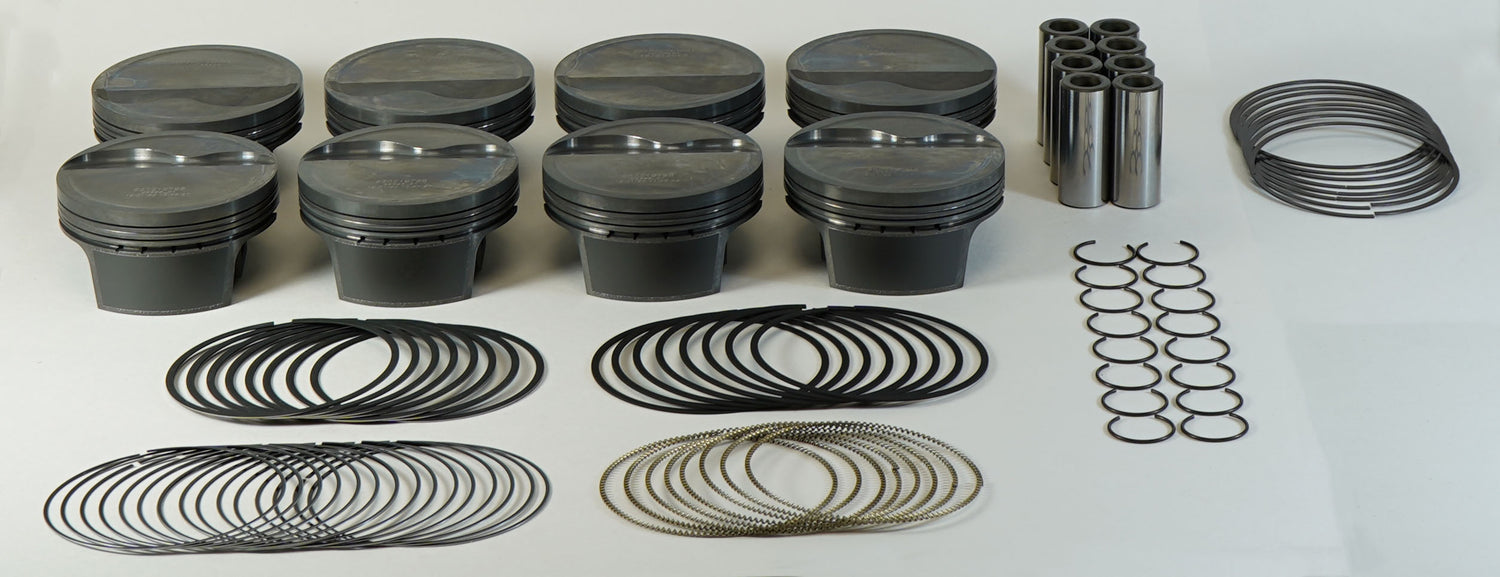

Mahle Motorsport 930219330 - Mahle MS Piston Set GM LS 408ci 4.030in Bore 4in Stroke 6.125in Rod .927 Pin -12cc 10.6 CR Set of 8

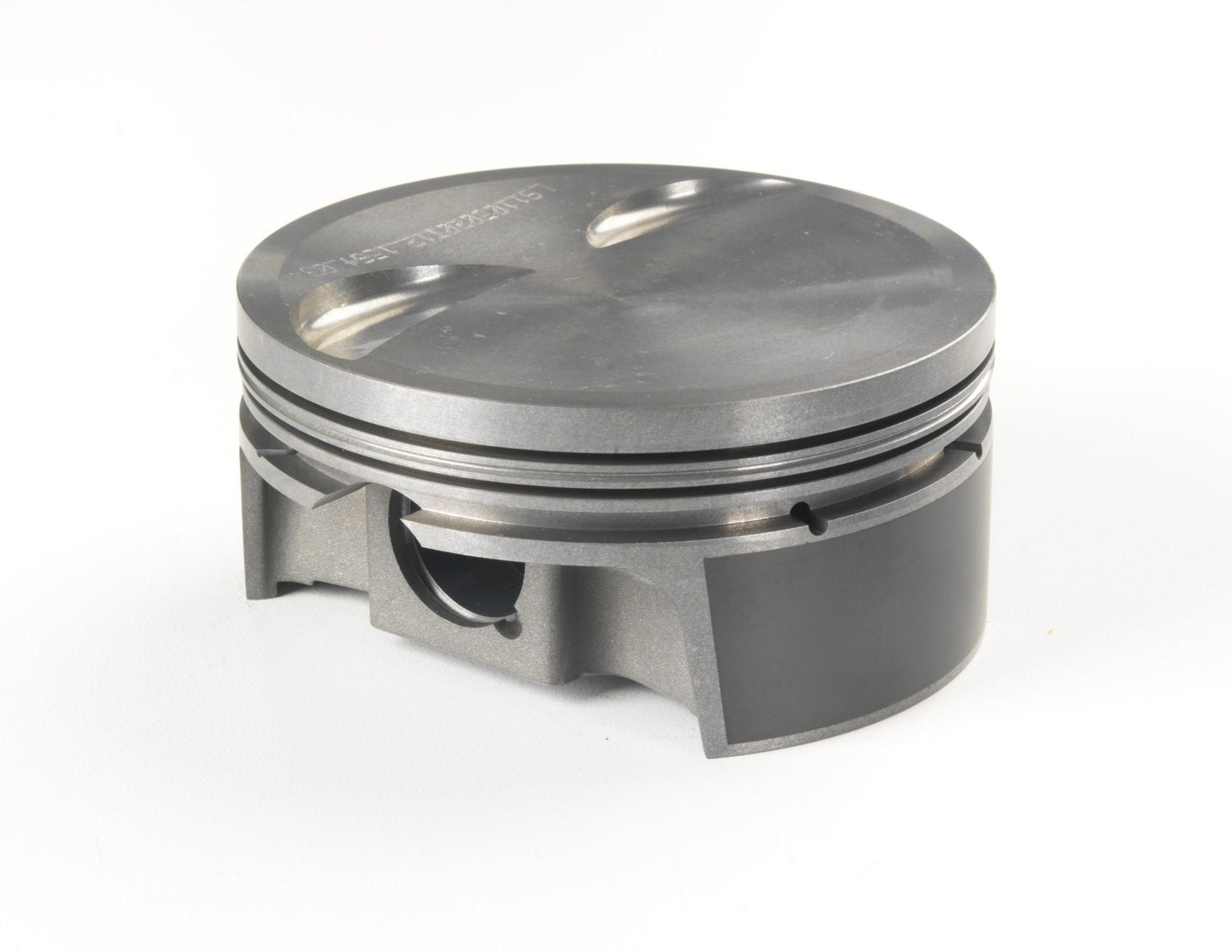

Piston (set) - LS 6.0L DISH
408cid 4.030 x 1.110CH, 4.000stroke,6.125rod,0.927pin,-12.0cc,421g,10.8CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 421g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -12.0cc
UCR Thickness: 1.0mm
