Mahle Motorsport 930219310 - Mahle MS Piston Set GM LS 404ci 4.010in Bore 4in Stroke 6.125in Rod .927 Pin -12cc 10.5 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930219310
Sale price
$75799
Regular price
$91118
Unit price
/
Unavailable
$153.19 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

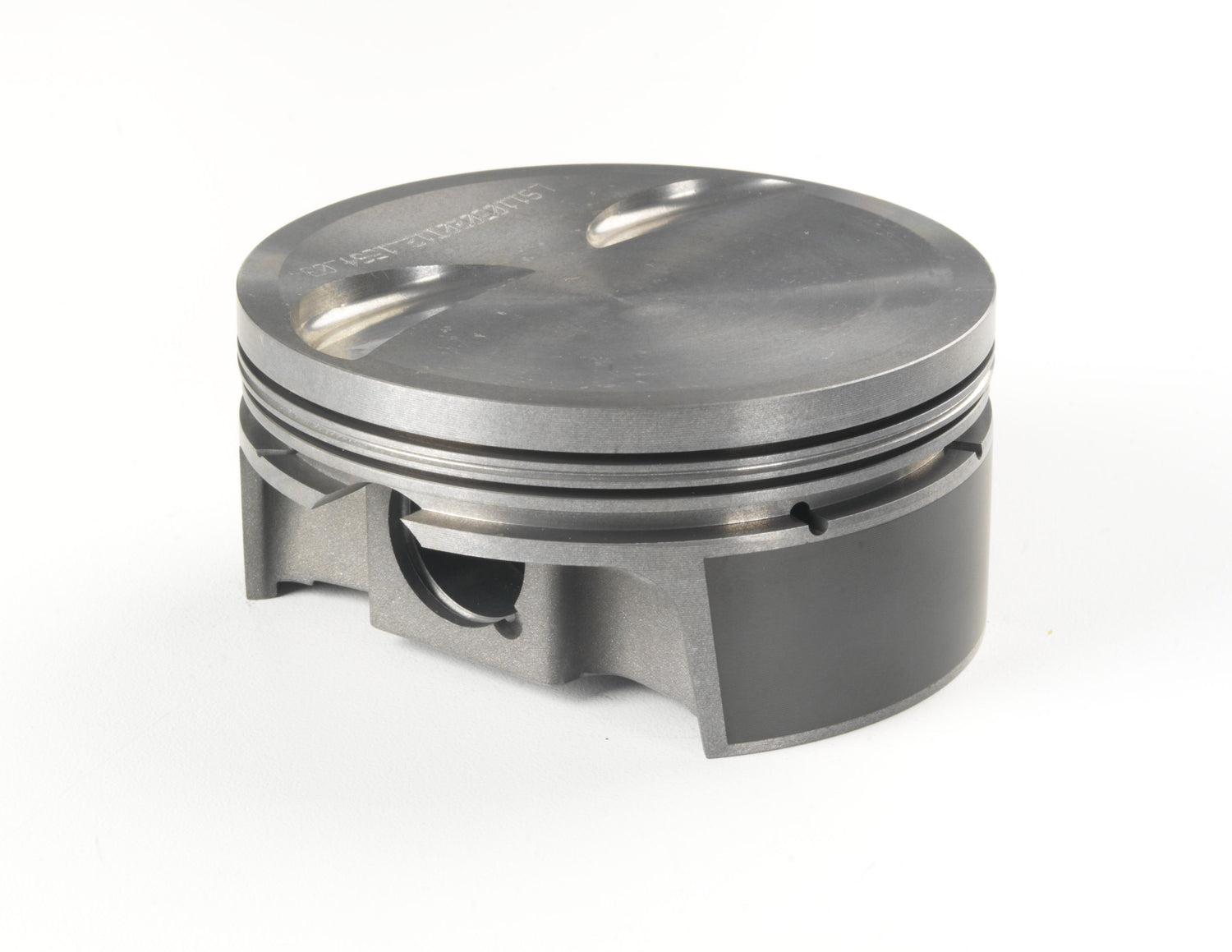

Mahle Motorsport 930219310 - Mahle MS Piston Set GM LS 404ci 4.010in Bore 4in Stroke 6.125in Rod .927 Pin -12cc 10.5 CR Set of 8
404ci,4.010bore,4.000stroke,6.125rod,1.105Rch,0.927pin,-12cc,403g,10.5cr,4032
LS 5.7L & 6.0L DISH - compatable with LS1/2/6 style cathedral port heads 404cid 4.010 x 1.105CH, 4.000stroke,6.125rod,0.927pin,-12.0cc,413g,10.7CR, 4032.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal
Crown Vol: -12.0cc
Package Qty: Sold as a set of 8
Pin Diameter: 0.927
Pin Length: 2.287
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 413g
Piston Material: Forged, 4032
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dish, w/ 2 valve reliefs
Rings Included: Yes
