Mahle Motorsport 930218500 - Mahle MS Chevy LS1/2/6 3.800in Bore / 6.622in Stoke / 6.098in Rod Length - Pistons (Set Of 8)
Mahle Motorsport | SKU:
DGJH-930218500
Sale price
$80199
Regular price
$89945
Unit price
/
Unavailable
$97.46 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

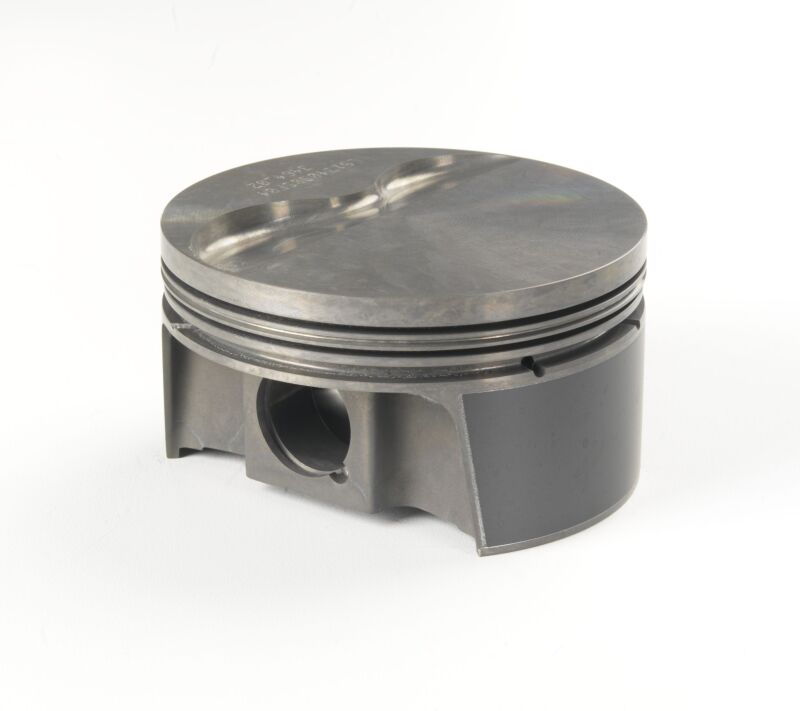

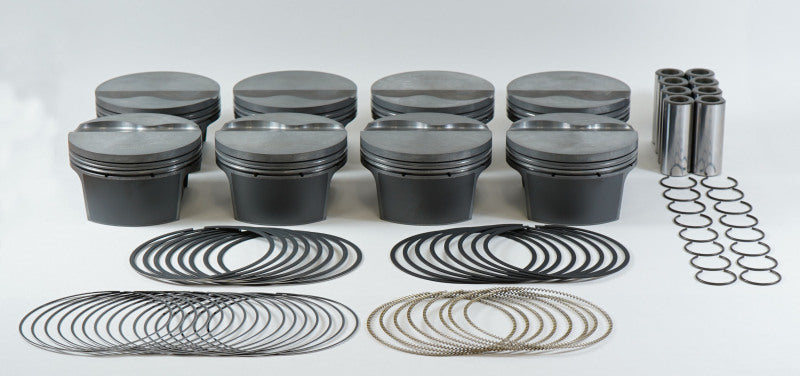

Mahle Motorsport 930218500 - Mahle MS Chevy LS1/2/6 3.800in Bore / 6.622in Stoke / 6.098in Rod Length - Pistons (Set Of 8)
Piston (set) - LS 5.3L FLAT TOP
329cid 3.800 x 1.330CH, 3.622stroke,6.098rod,0.945pin,-4.2cc,428g,9.8CR, 2618
Pin Style: Floating
Clips Included: Y
Pin Mass: 125g
Pin Length: 58.1mm
Pin Diameter: 24.0mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -4.2cc
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 428g
Pins Included: Y
Pin Material: Steel
