Mahle Motorsport 930217998-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930217998-1
Sale price
$7699
Regular price
$9358
Unit price
/
Unavailable
$16.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

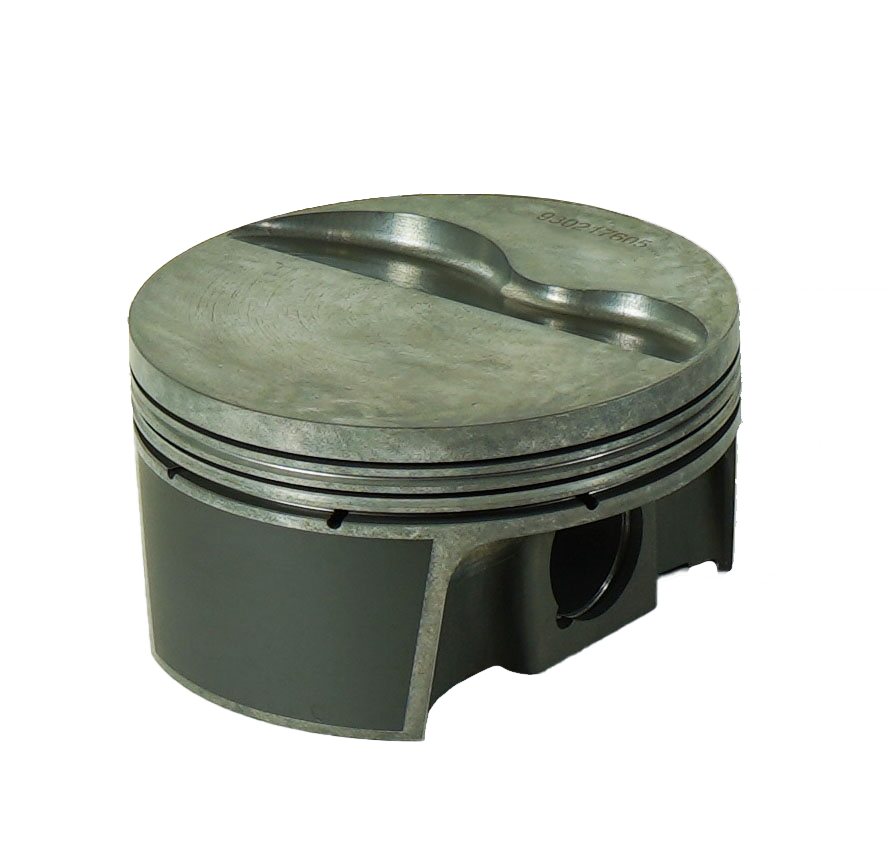

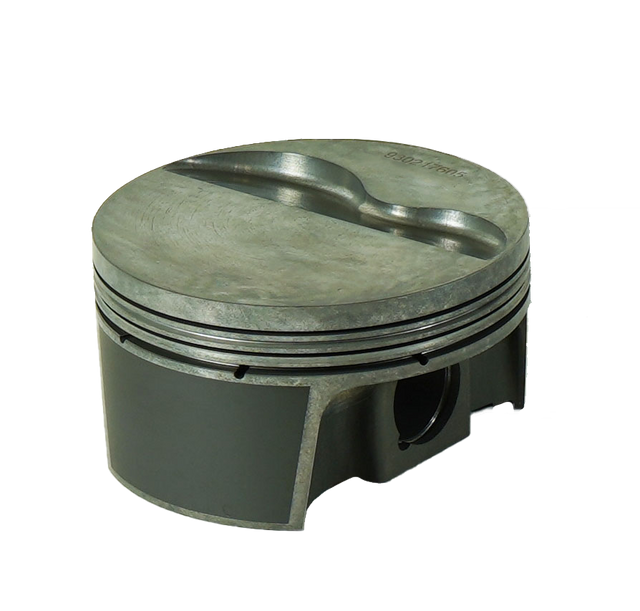

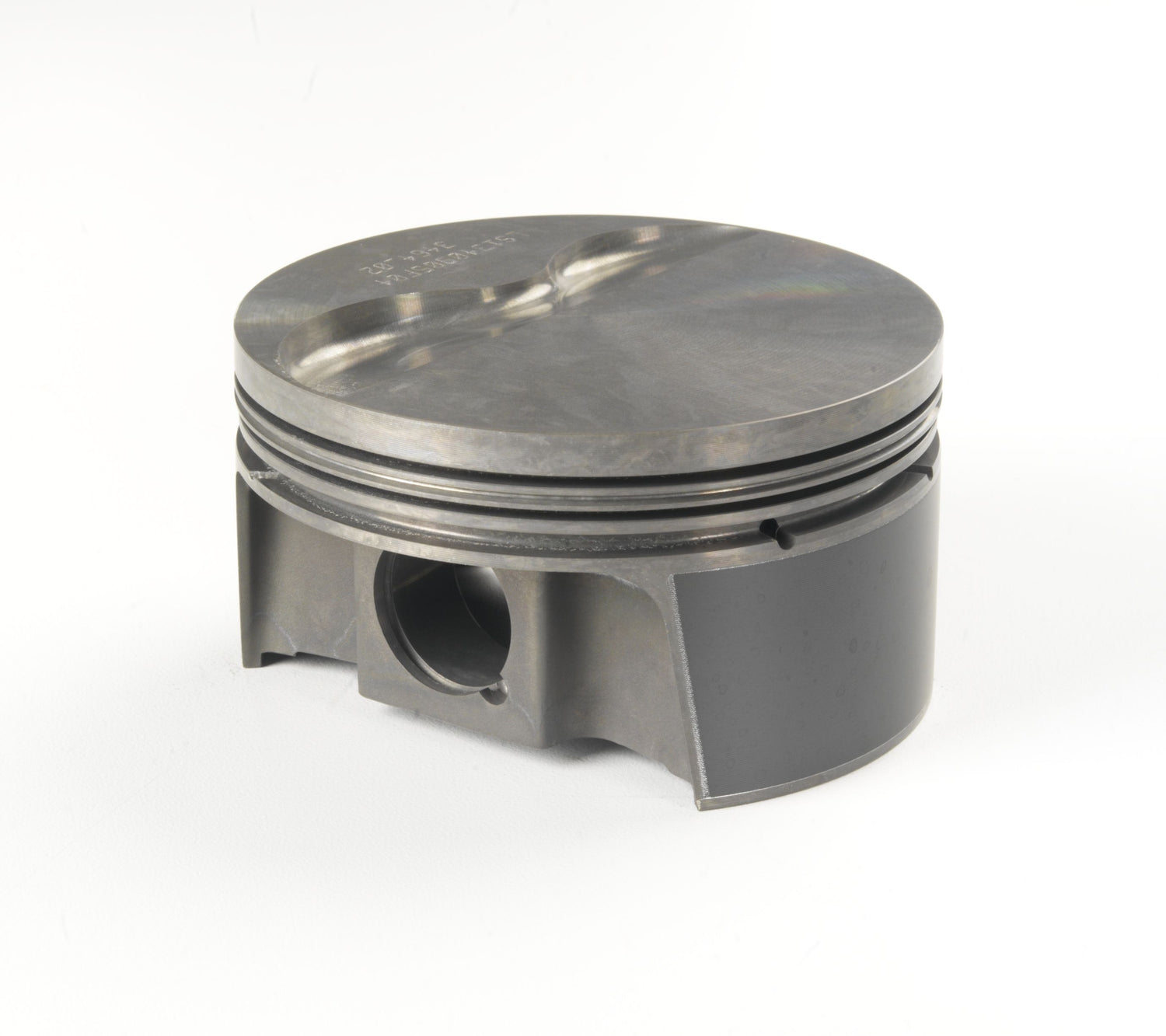

Mahle Motorsport 930217998-1 - Piston (each)
Piston (ea) - LS 5.7L FLAT TOP & DISH
346cid 3.898 x 1.314CH, 3.622stroke,6.125rod,0.927pin,-4.1cc,406g,10.2CR, 4032, SINGLE PISTON
UCR Material: 9254 Steel
Pin Material: Steel
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 406g
Pins Included: N
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Mass: 118g
UCR Thickness: 1.0mm
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -4.1cc
Clips Included: N
Clip Style: Round Wire
UCR Coating: HV385
