Mahle Motorsport 930217605 - Mahle MS Piston Set GM LS 347ci 3.905in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930217605
Sale price
$73699
Regular price
$88526
Unit price
/
Unavailable
$148.27 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

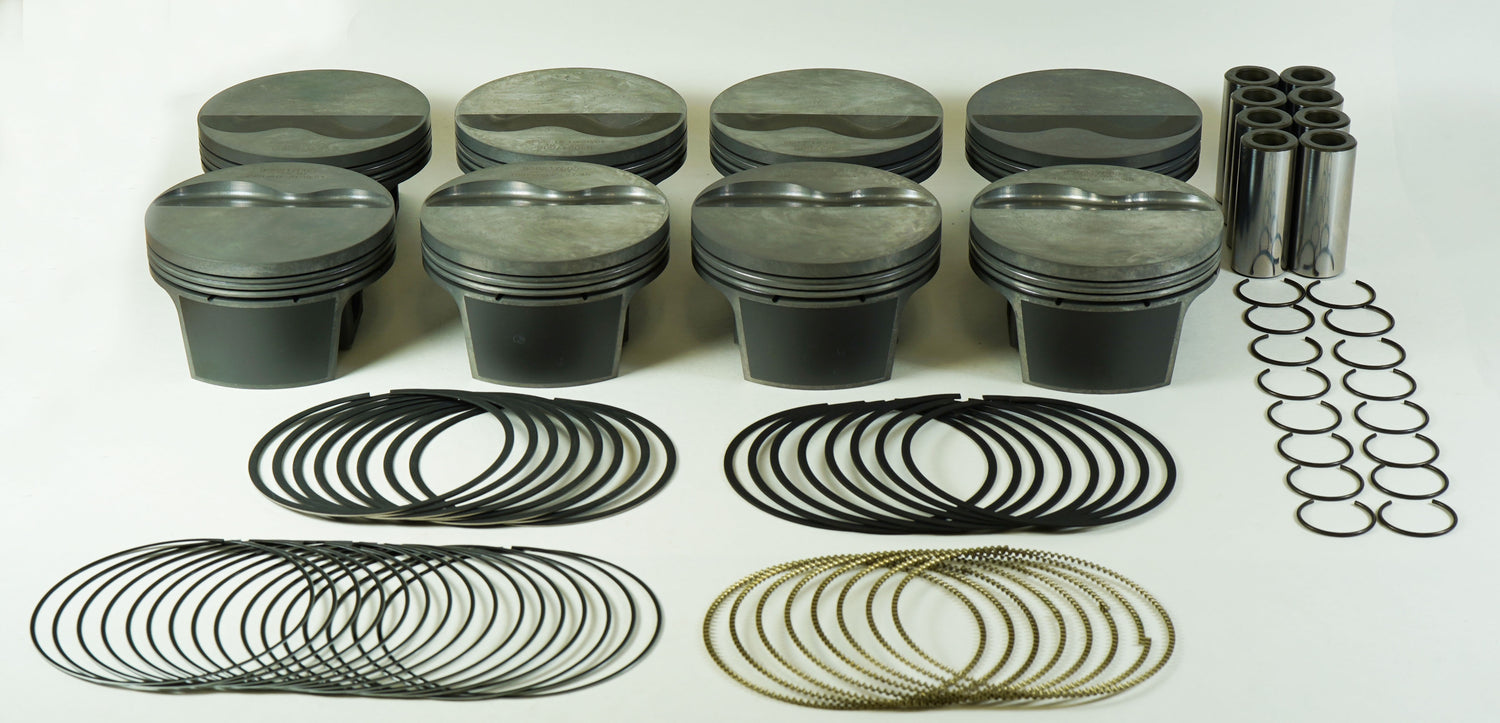

Mahle Motorsport 930217605 - Mahle MS Piston Set GM LS 347ci 3.905in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR Set of 8
347ci,3.905bore,3.622stroke,6.098rod,1.34ch,0.945pin,-4cc,398g,10.1cr,4032
LS 5.7L & 6.0L FLAT TOP - compatable with LS1/2/6 style cathedral port heads 347cid 3.905 x 1.340CH, 3.622stroke,6.098rod,0.945pin,-4.1cc,410g,10.2CR, 4032.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal
Crown Vol: -4.1cc
Package Qty: Sold as a set of 8
Pin Diameter: 0.945
Pin Length: 2.287
Pin Mass: 125g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 410g
Piston Material: Forged, 4032
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm

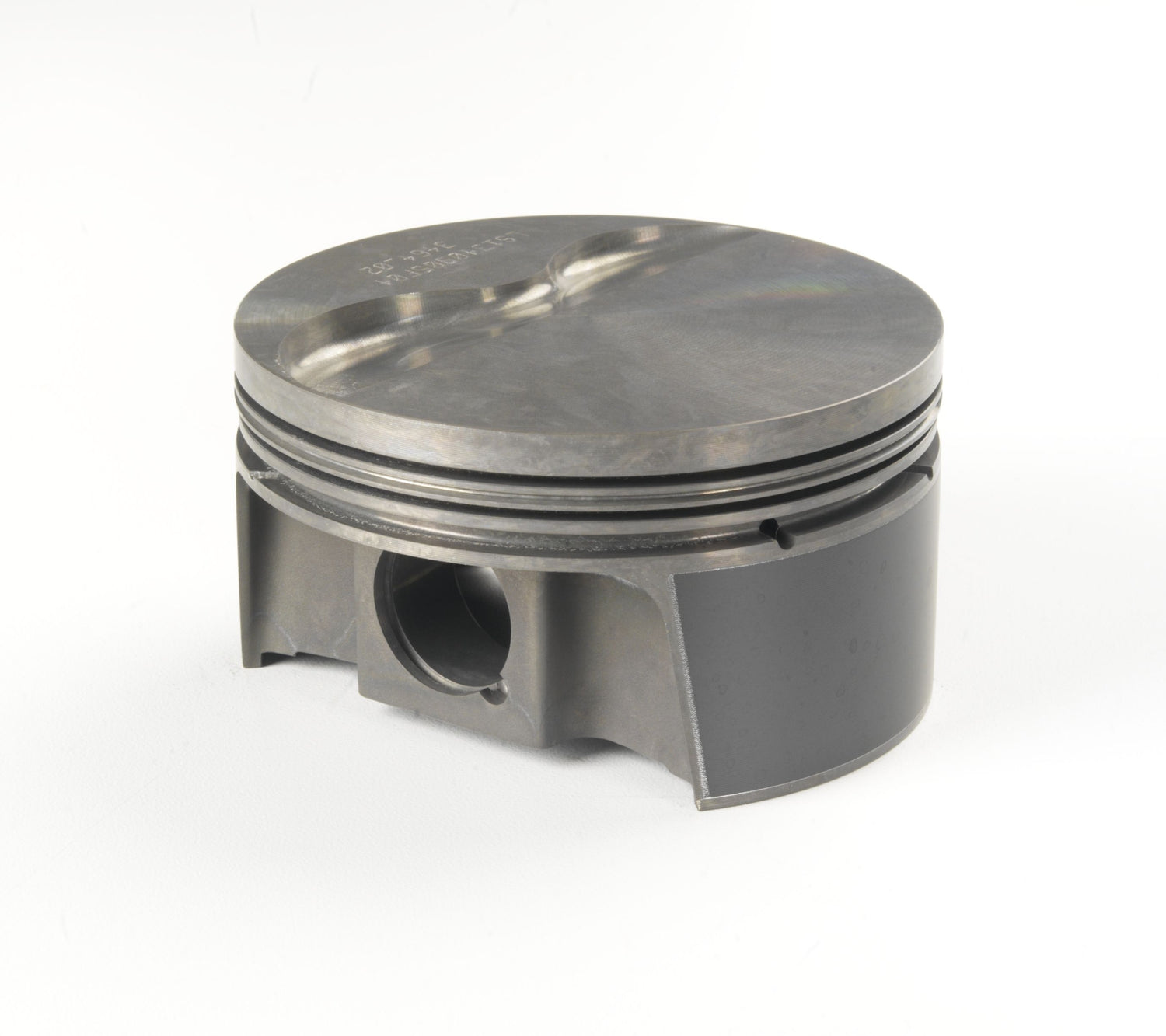

Piston Style: Flattop, w/ 2 valve reliefs
Rings Included: Yes
