Mahle Motorsport 930212525 - Mahle Piston Set Chevy 400ci 4.125in Bore 3.750in Stroke 6.0in Rod 12.2:1 CR Piston Set of 8
Mahle Motorsport | SKU:
DGJH-930212525
Sale price
$74299
Regular price
$86900
Unit price
/
Unavailable
$126.01 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

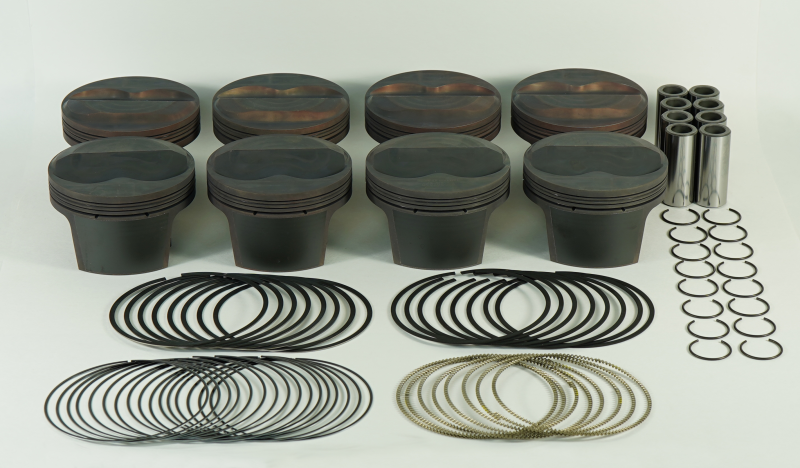

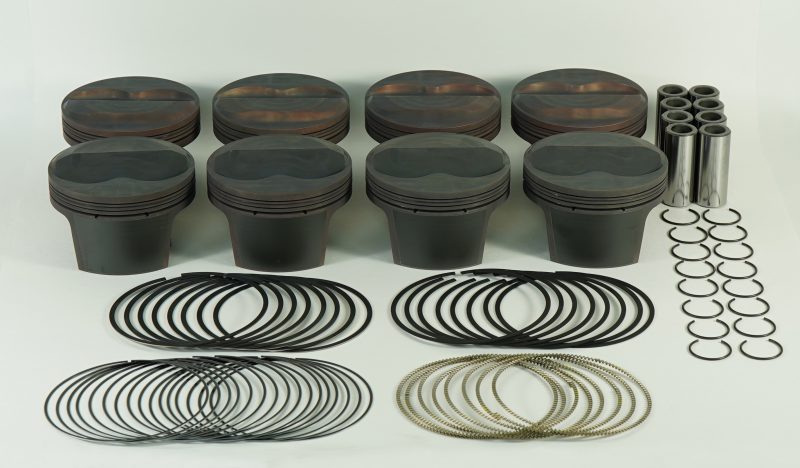

Mahle Motorsport 930212525 - Mahle Piston Set Chevy 400ci 4.125in Bore 3.750in Stroke 6.0in Rod 12.2:1 CR Piston Set of 8
Piston and Ring - PowerPak - Forged - Dome - 4.125 in Bore - 1.125 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Plus 4.00 cc - Small Block Chevy - Kit
372cid 4.125 x 1.125CH, 3.480/3.500stroke,6.125rod,0.927pin,4.0cc,478g,12.1CR, 2618
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 4.0cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y

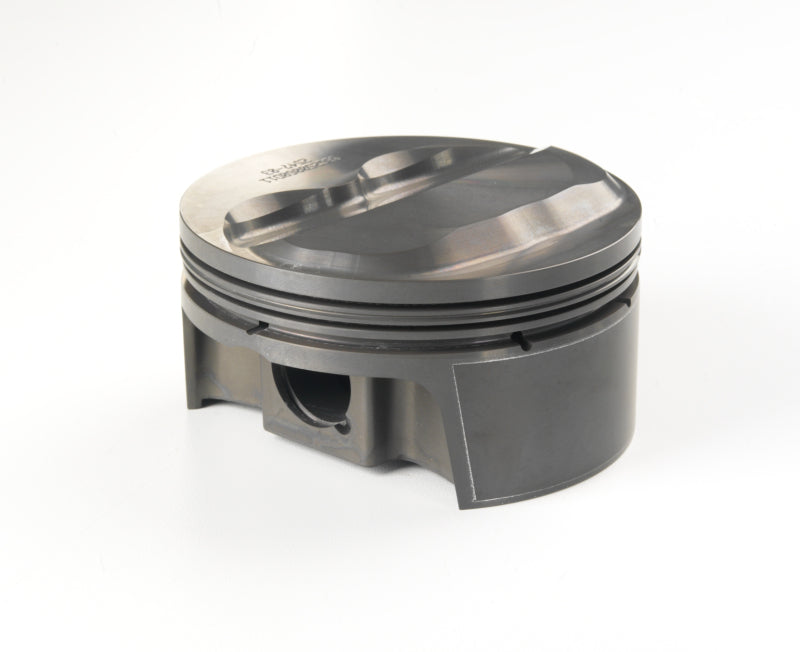

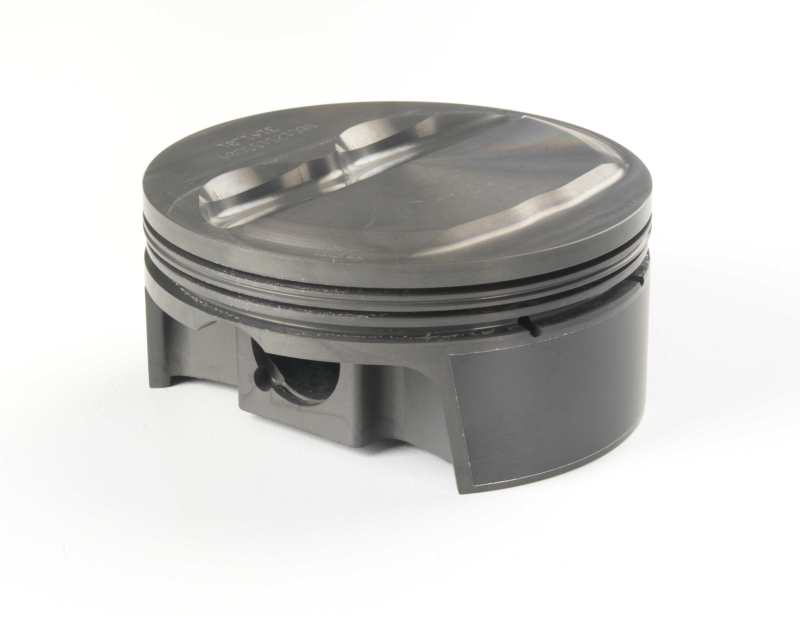

Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 478g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
