Mahle Motorsport 930208855 - Mahle MS Piston Set SBC 433ci 4.155in Bore 4.000in Stroke 6.0in Rod 0.927 Pin 4cc 13.9 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930208855
Sale price
$77499
Regular price
$91455
Unit price
/
Unavailable
$139.56 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

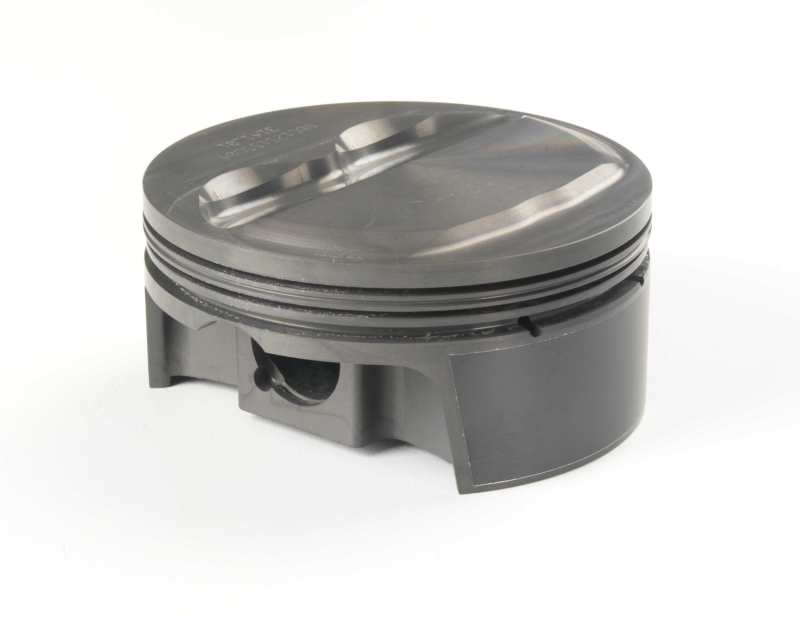

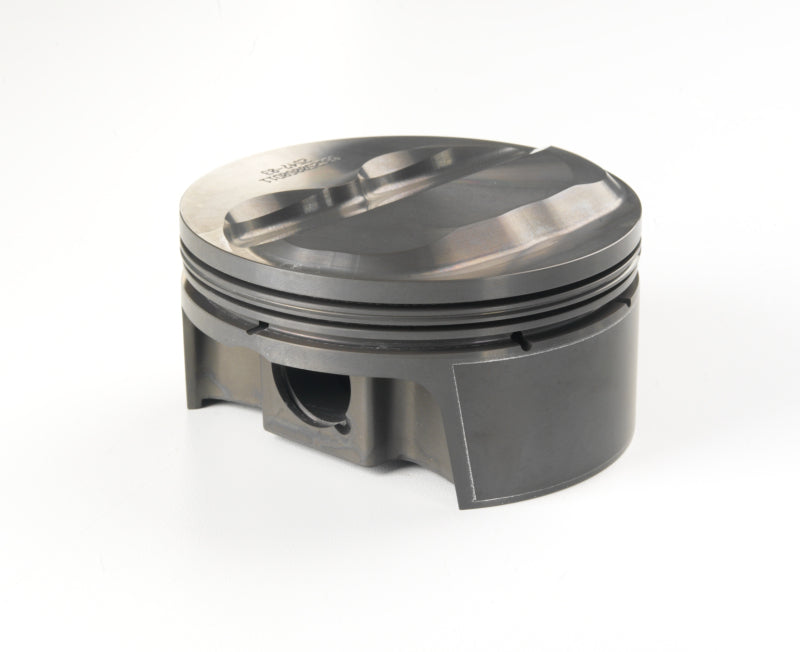

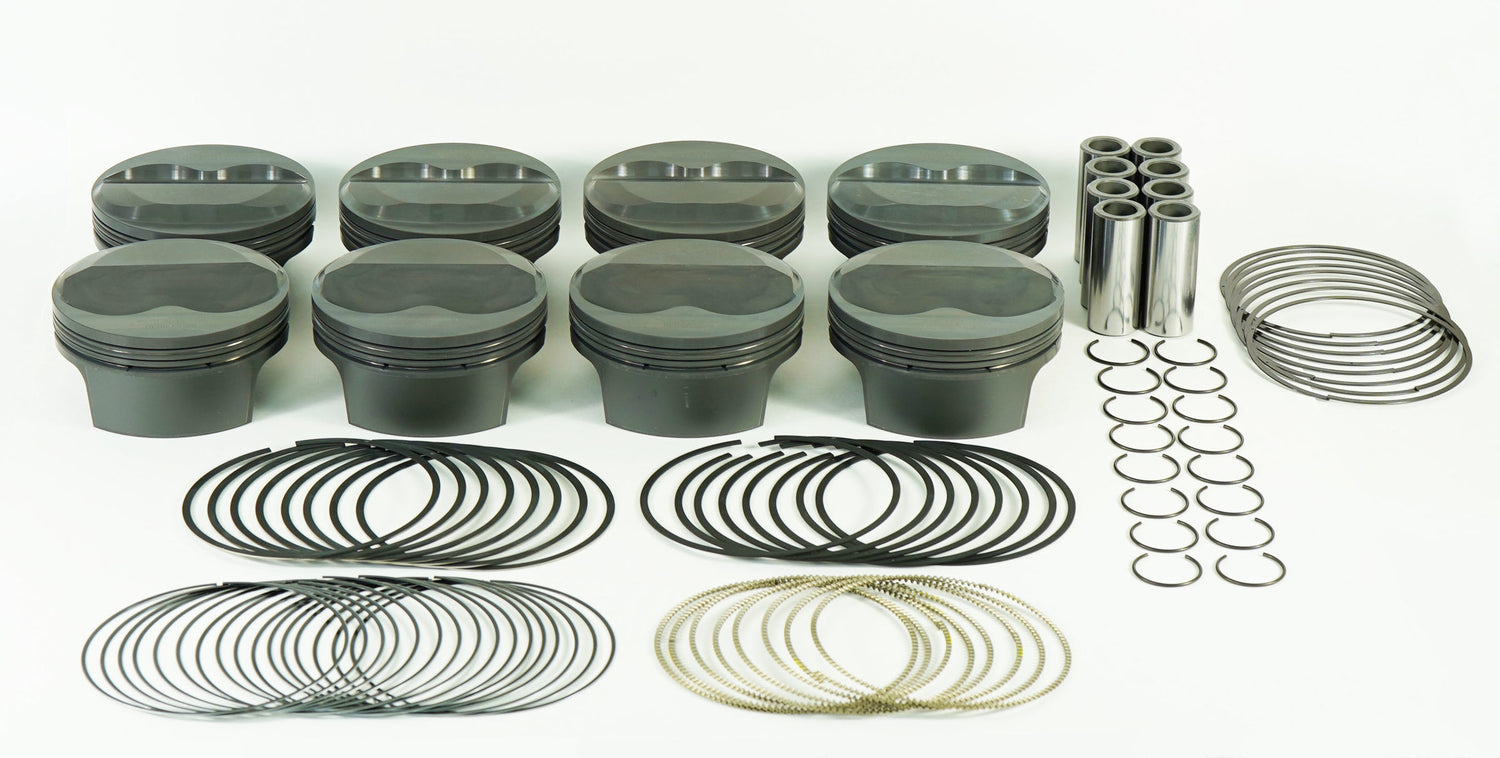

Mahle Motorsport 930208855 - Mahle MS Piston Set SBC 433ci 4.155in Bore 4.000in Stroke 6.0in Rod 0.927 Pin 4cc 13.9 CR Set of 8
Piston and Ring - PowerPak - Forged - Dome - 4.155 in Bore - 1.000 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Plus 4.00 cc - Small Block Chevy - Kit
434cid 4.155 x 1.000RCH, 4.000stroke,6.000rod,0.927pin,4.0cc,459g,13.9CR, 2618
Pin Diameter: 23.55mm
UCR Coating: HV385
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 4.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
Pin Length: 58.1mm
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 459g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Package Quantity: Sold as a set of 8
