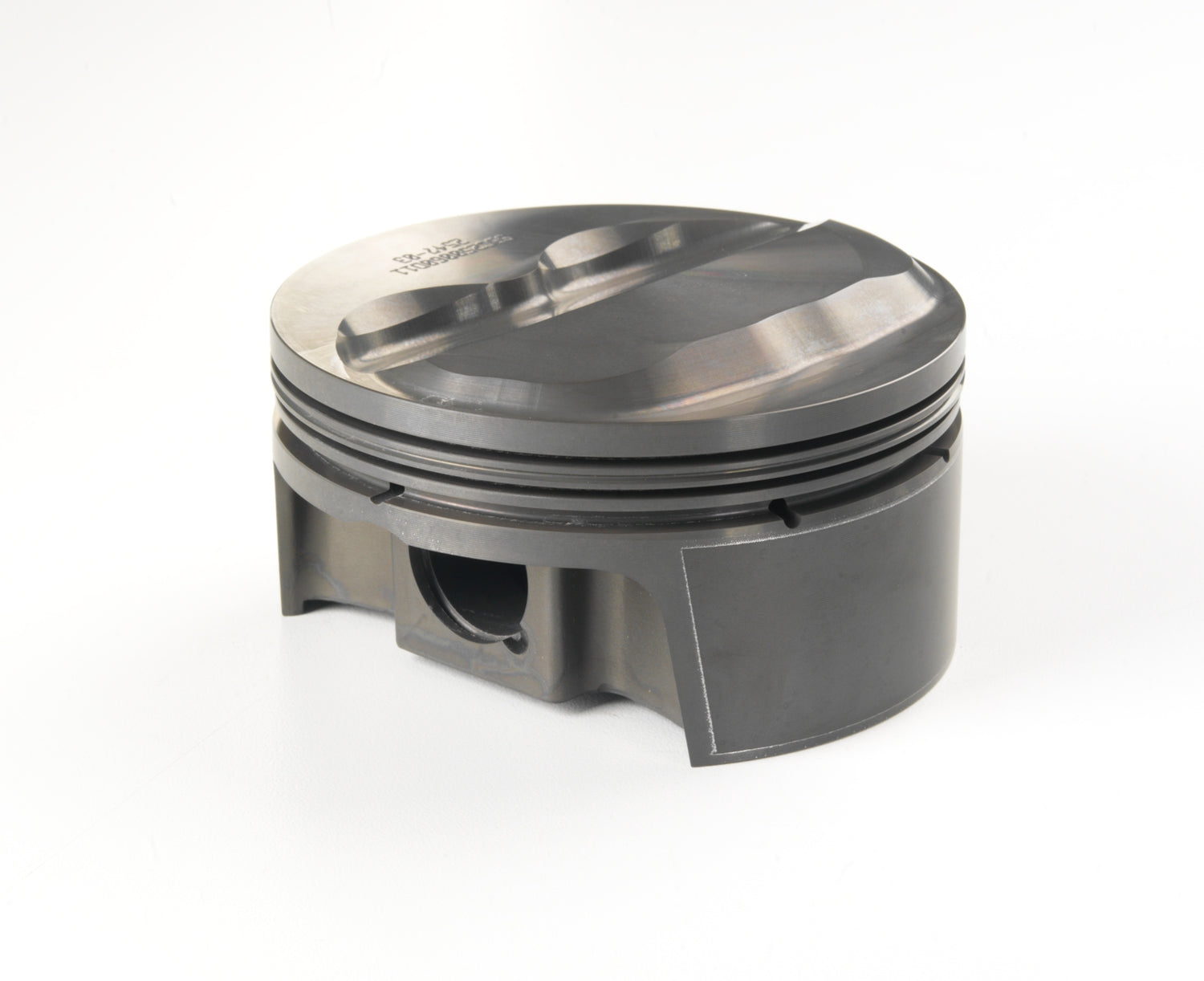

Mahle Motorsport 930208130 - Mahle MS Piston Set SBC 383ci 4.03in Bore 3.75in Stroke 6.0in Rod .927 Pin 11cc 13.7 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930208130
Sale price
$76399
Regular price
$85621
Unit price
/
Unavailable
$92.22 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930208130 - Mahle MS Piston Set SBC 383ci 4.03in Bore 3.75in Stroke 6.0in Rod .927 Pin 11cc 13.7 CR Set of 8
Piston and Ring - PowerPak - Forged - Dome - 4.030 in Bore - 1.125 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Plus 11.10 cc - Small Block Chevy - Kit
355cid 4.030 x 1.125CH, 3.480/3.500stroke,6.125rod,0.927pin,11.1cc,470g,12.9CR, 2618

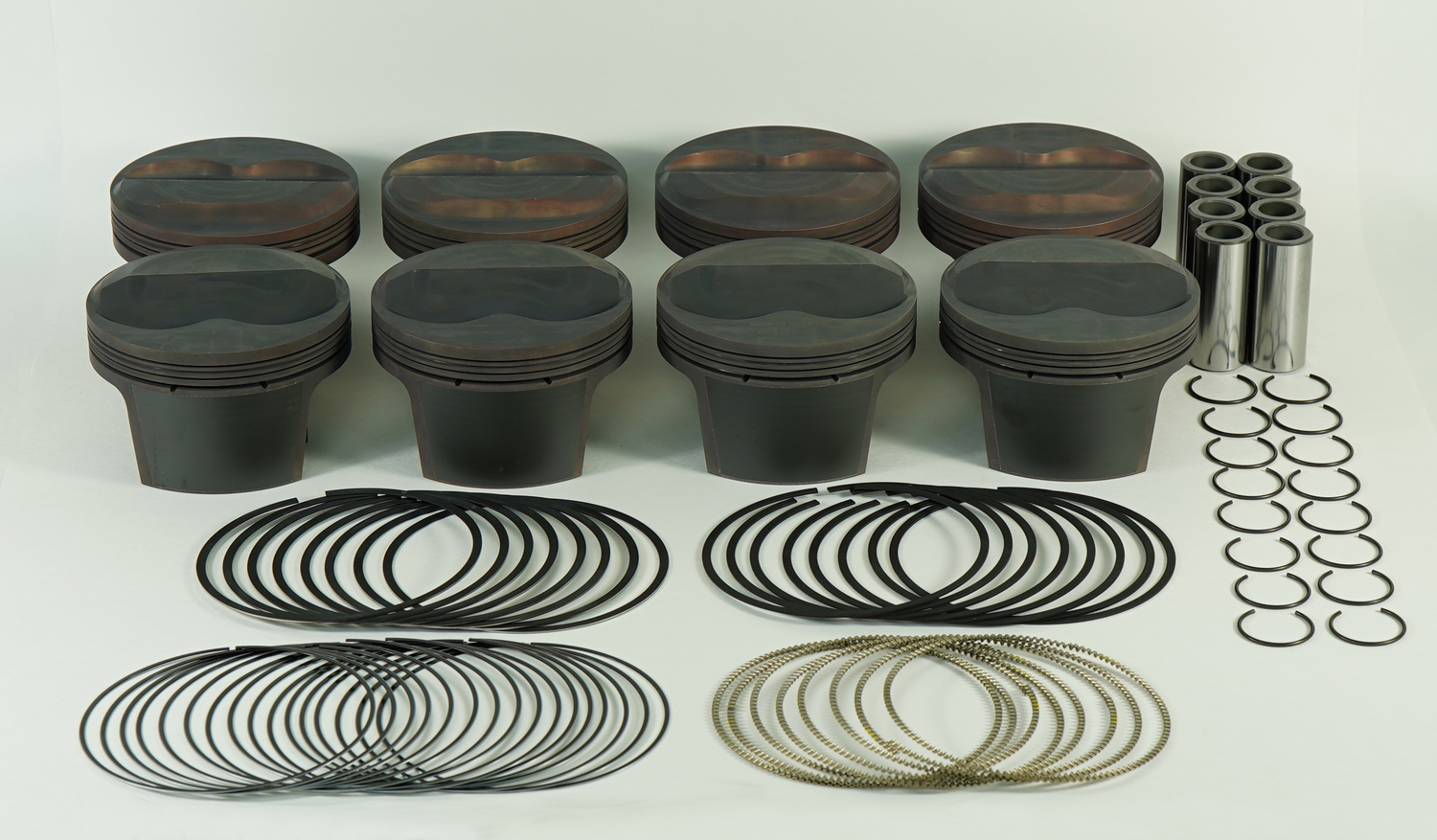

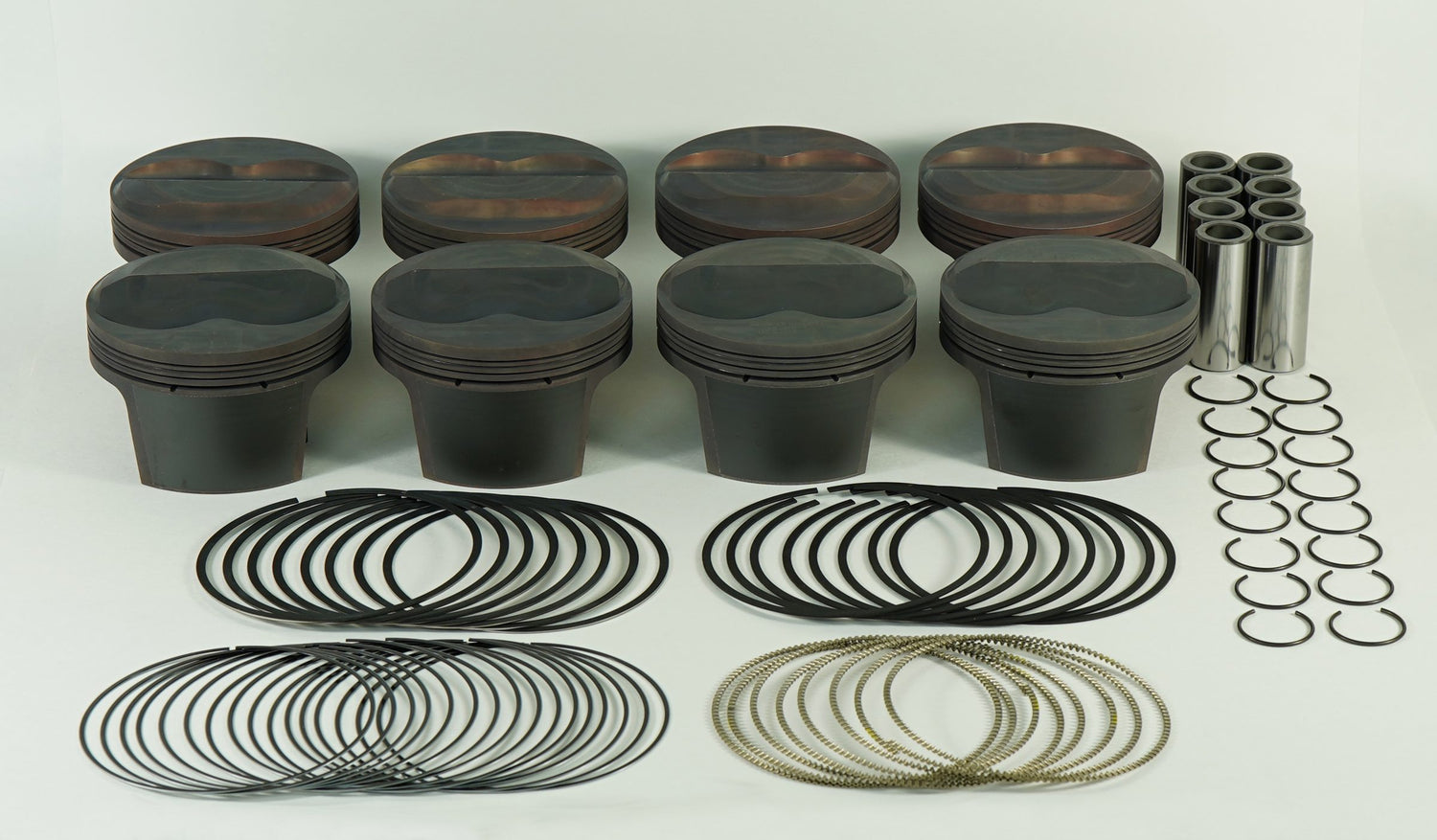

Package Quantity: Sold as a set of 8
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 470g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
OCR Thickness: 2.0mm
Rings Included: Y
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 11.1cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
