Mahle Motorsport 930206530 - Mahle MS Piston Set SBC 358ci 4.030in Bore 3.500stk 5.700in Rod .0927in Pin -2cc 10.8 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930206530
Sale price
$72199
Regular price
$85438
Unit price
/
Unavailable
$132.39 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

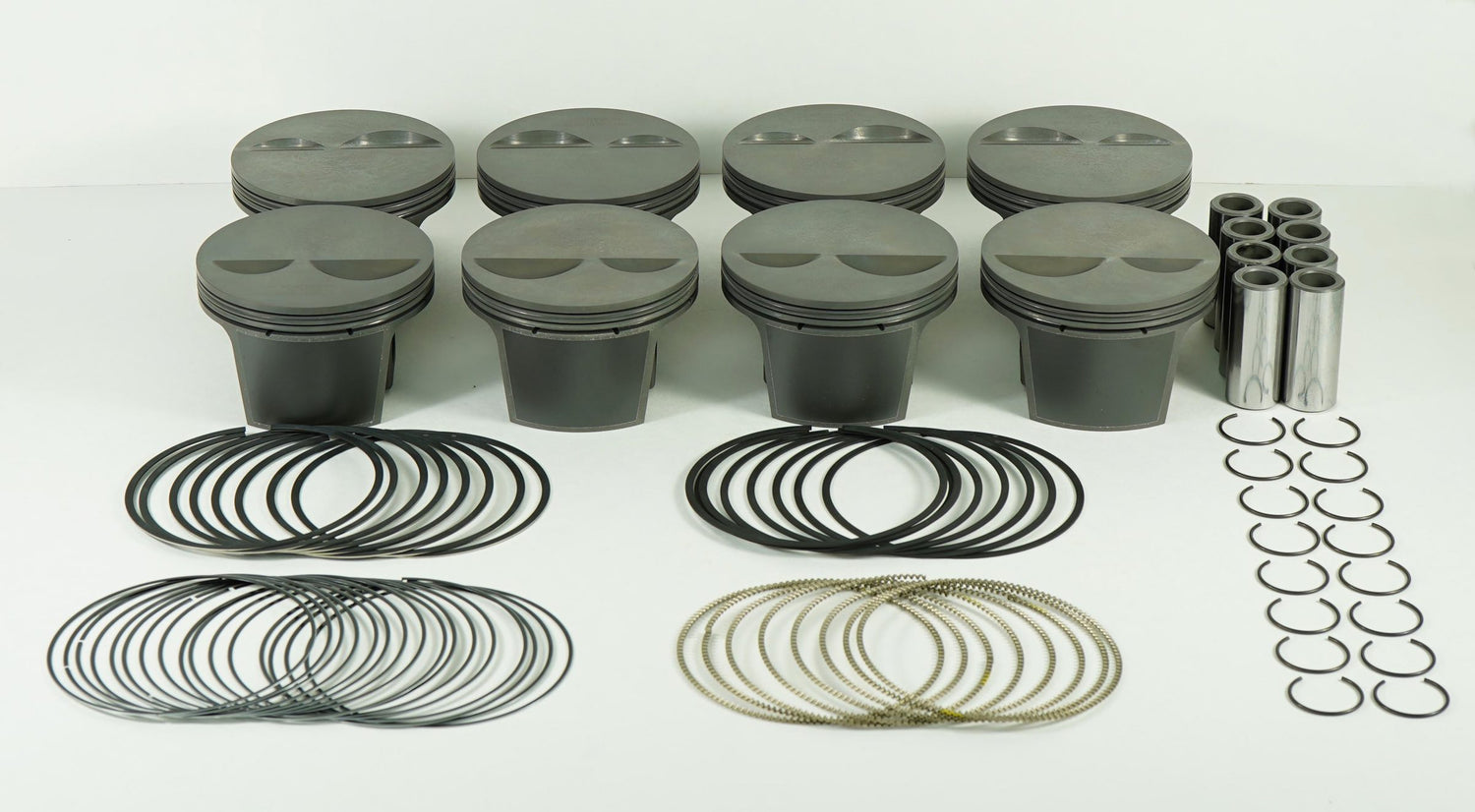

Mahle Motorsport 930206530 - Mahle MS Piston Set SBC 358ci 4.030in Bore 3.500stk 5.700in Rod .0927in Pin -2cc 10.8 CR Set of 8
Piston and Ring - PowerPak - Flat Top - Forged - Flat Top - 4.030 in Bore - 1.550 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 2.40 cc - Small Block Chevy - Kit
357cid 4.030 x 1.550CH, 3.500stroke,5.700rod,0.927pin,-2.4cc,411g,10.8CR, 4032
Package Quantity: Sold as a set of 8
Pin Wall Thickness: 0.129
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 411g
Pins Included: Y
Pin Style: Floating
Pin Diameter: 23.55mm
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -2.4cc
Clips Included: Y
Clip Style: Round Wire
Pin Material: Steel
Pin Mass: 93g
Pin Length: 58.1mm
UCR Thickness: 1.0mm
