Mahle Motorsport 930205576-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930205576-1
Sale price
$9999
Regular price
$12141
Unit price
/
Unavailable
$21.42 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

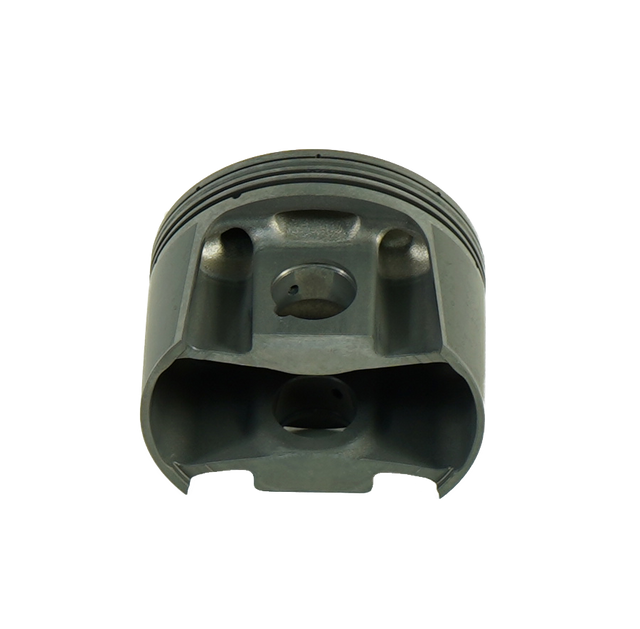

Mahle Motorsport 930205576-1 - Piston (each)
Piston (ea) - SMALL BLOCK CHEVY 305ci FLAT TOP
312cid 3.776 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-1.6cc,413g,9.8CR, 4032, SINGLE PISTON
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 413g
Pins Included: N
Pin Wall Thickness: 0.129
Pin Style: Floating
Pin Material: Steel
Pin Length: 58.1mm
UCR Material: 9254 Steel
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -1.6cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Coating: HV385
Pin Mass: 93g
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
