Mahle Motorsport 930204586 - Mahle MS Piston Set SBC 313ci 3.786in Bore 3.480in Stroke 5.7in Rod 0.927 Pin -3cc 9.6 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930204586
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

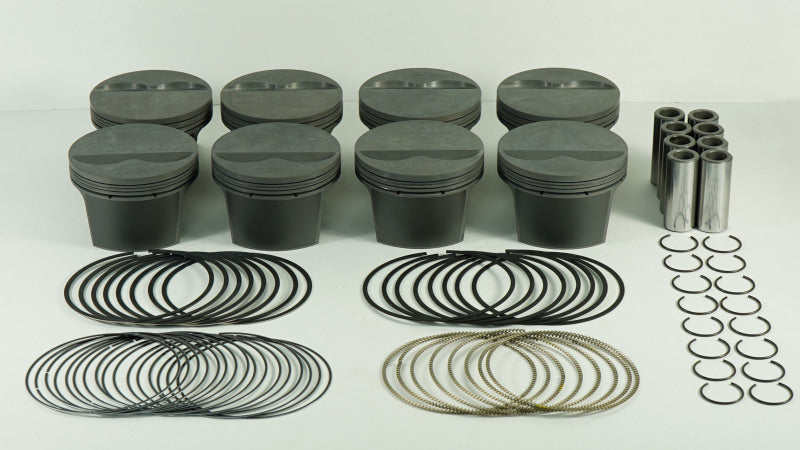

Mahle Motorsport 930204586 - Mahle MS Piston Set SBC 313ci 3.786in Bore 3.480in Stroke 5.7in Rod 0.927 Pin -3cc 9.6 CR Set of 8
313ci,3.786bore,3.480stroke,5.7rod,1.550ch,0.927pin,-3cc,TBA,9.6cr,4032
SMALL BLOCK CHEVY 305ci FLAT TOP 313cid 3.786 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-3.0cc,413g,9.6CR, 4032.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal
Crown Vol: -3.0cc
Package Qty: Sold as a set of 8
Pin Diameter: 0.927
Pin Length: 2.287
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 413g
Piston Material: Forged, 4032
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm

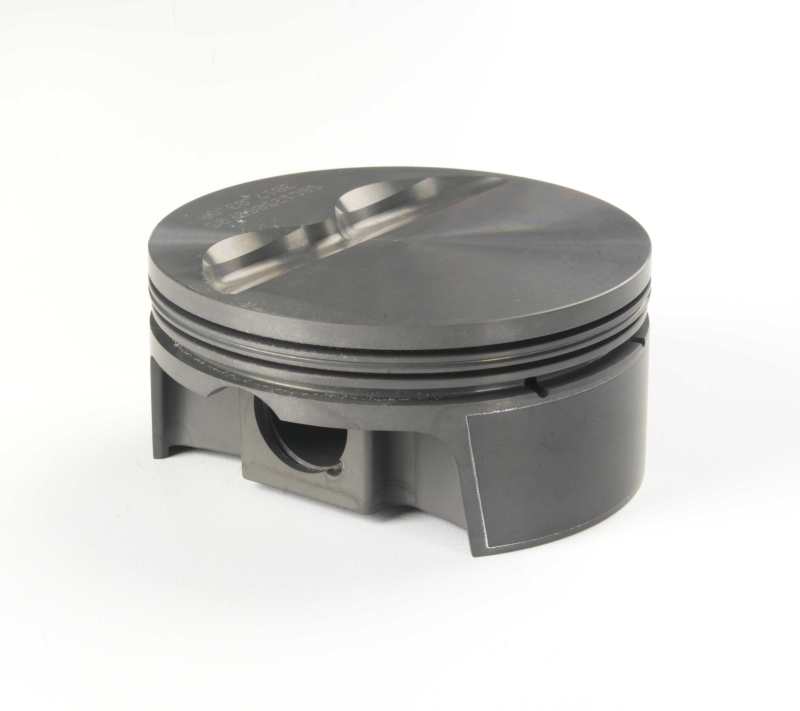

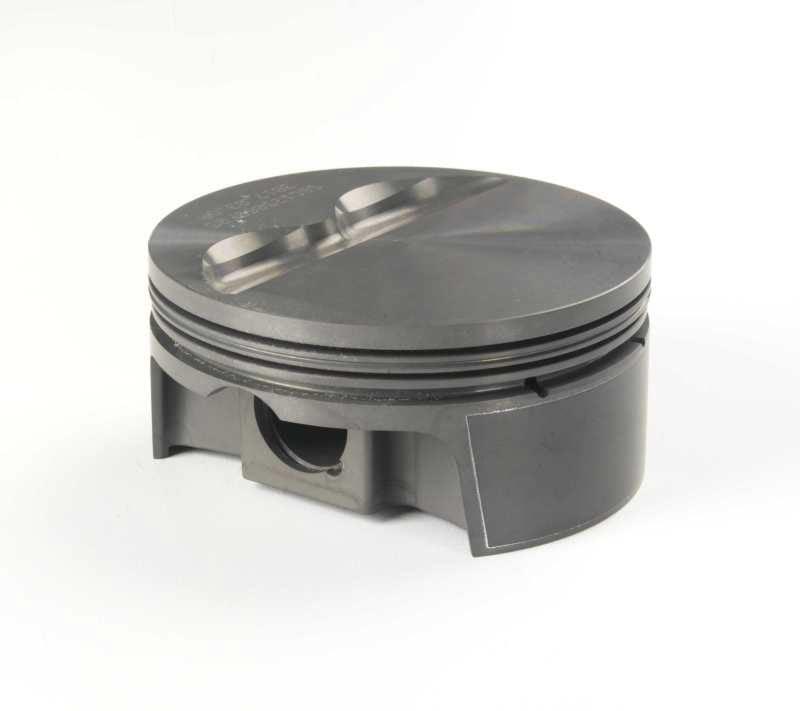

Piston Style: Flattop, w/ 2 valve reliefs
Rings Included: Yes
