Mahle Motorsport 930204566-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930204566-1
Sale price
$7699
Regular price
$9358
Unit price
/
Unavailable
$16.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

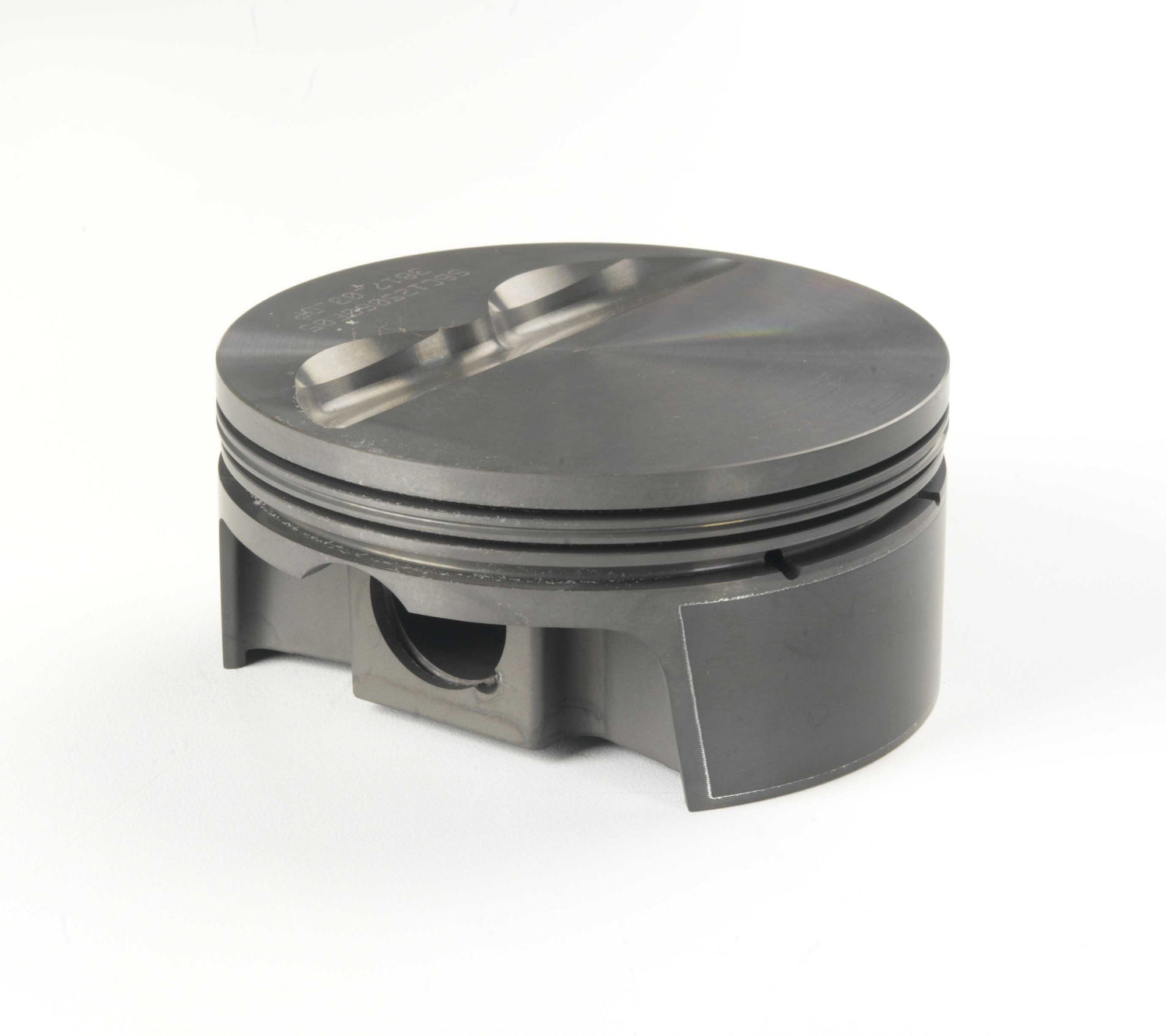

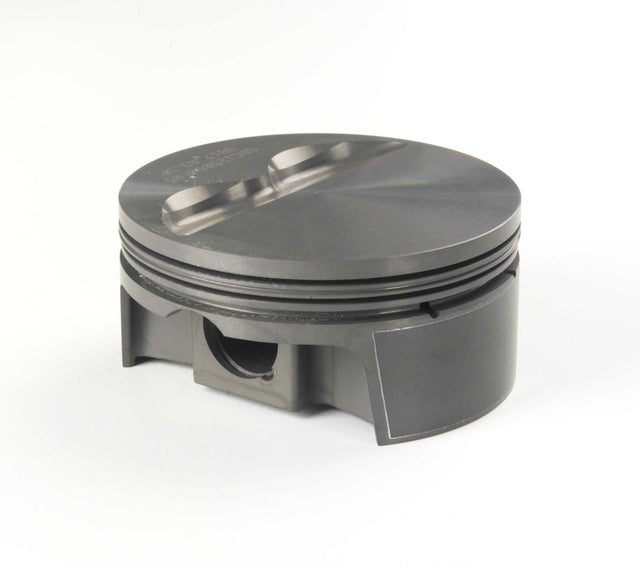

Mahle Motorsport 930204566-1 - Piston (each)
Piston (ea) - SMALL BLOCK CHEVY 305ci FLAT TOP
310cid 3.766 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-3.0cc,405g,9.5CR, 4032, SINGLE PISTON
Crown Volume: -3.0cc
Piston Mass: 405g
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Pin Wall Thickness: 0.168
Pins Included: N
File Fit: Y
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
