Mahle Motorsport 930203860 - Piston (set)
Mahle Motorsport | SKU:
DGJH-930203860
Sale price
$71099
Regular price
$83466
Unit price
/
Unavailable
$123.67 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

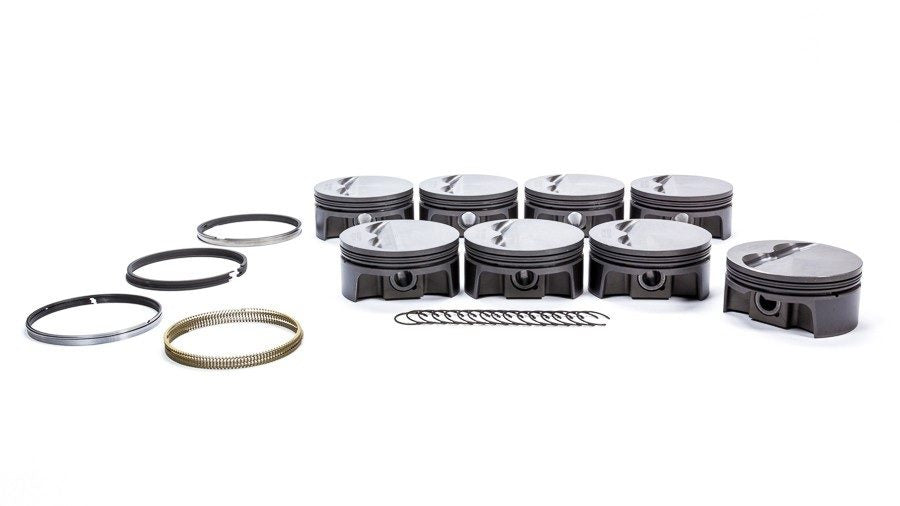

Mahle Motorsport 930203860 - Piston (set)
Piston and Ring - PowerPak - Flat Top - Forged - Flat Top - 4.060 in Bore - 1.560 in Compression Height - 1.5 x 1.5 x 3.0 mm Ring Grooves - Minus 3.00 cc - Small Block Chevy - Kit
362cid 4.060 x 1.560CH, 3.500stroke,5.700rod,0.927pin,-3.0cc,487g,10.8CR, 4032
Clips Included: N
Pin Wall Thickness: 0.188
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Flattop, w/ 4 valve reliefs
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 487g
Pins Included: Y
Pin Style: Press Fit
Crown Volume: -3.0cc
Pin Material: Steel
Pin Mass: 128g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
UCR Thickness: 1.5mm
