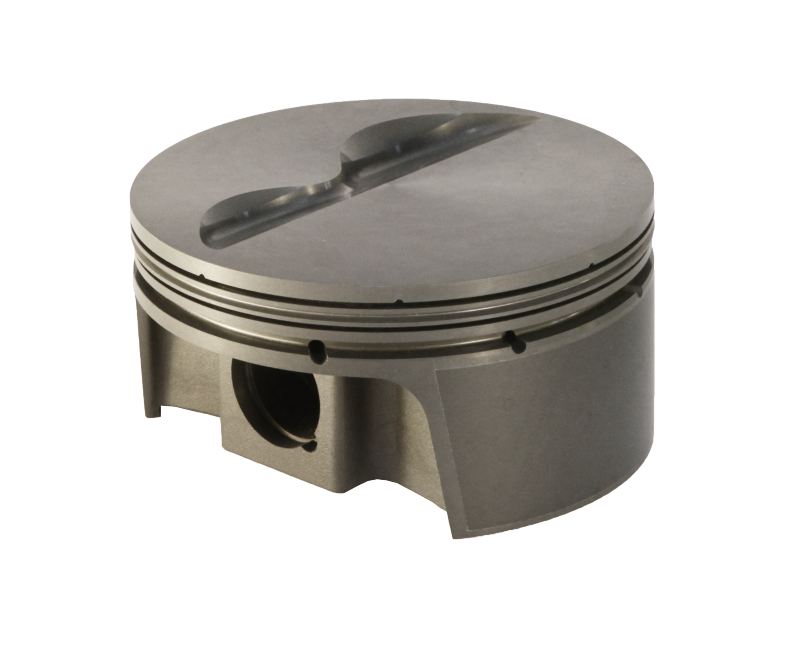

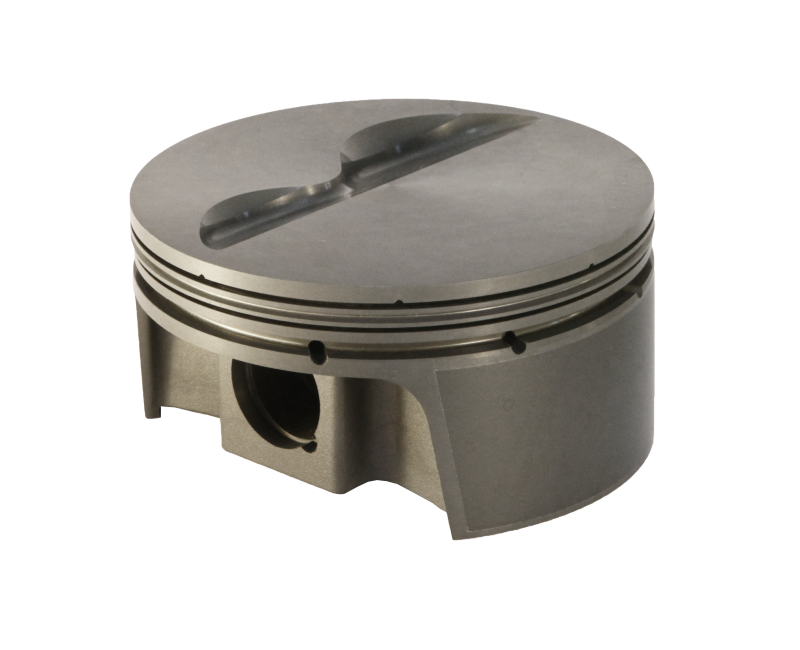

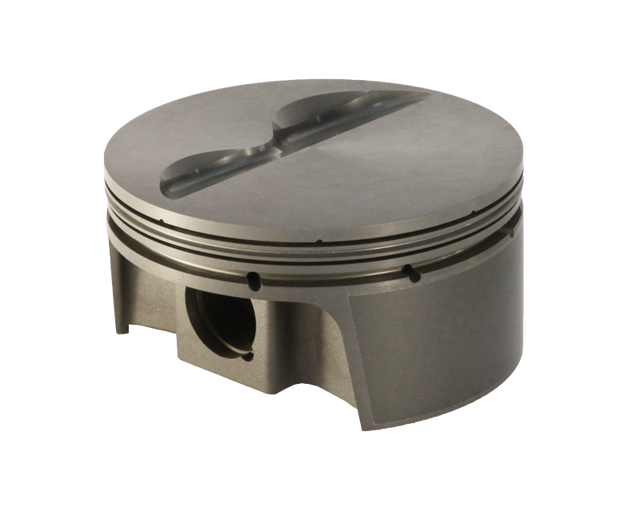

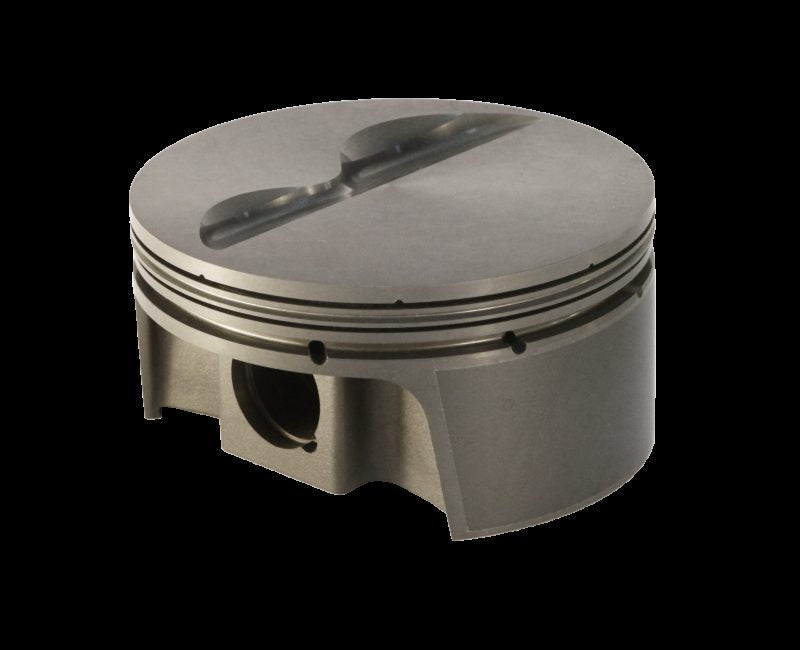

Mahle Motorsport 930202840 - Mahle MS Piston Set SBC 384ci 4.04in Bore 3.75in Stk 6.125in Rod .927in Pin -4cc 11.3 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930202840
Sale price
$89599
Regular price
$97082
Unit price
/
Unavailable
$74.83 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930202840 - Mahle MS Piston Set SBC 384ci 4.04in Bore 3.75in Stk 6.125in Rod .927in Pin -4cc 11.3 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 4.040 in Bore - 1.125 in Compression Height - 1.0 mm x 1.0 mm x 2.0 mm in Ring Grooves - Minus 4.10 cc - Small Block Chevy - Kit
359cid 4.040 x 1.125CH, 3.500stroke,6.125rod,0.927pin,- 4.1cc,380g,10.6CR, 4032
Pin Style: Floating
Clips Included: Y
Pin Mass: 93g
Pin Length: 58.1mm
Pin Diameter: 23.55mm

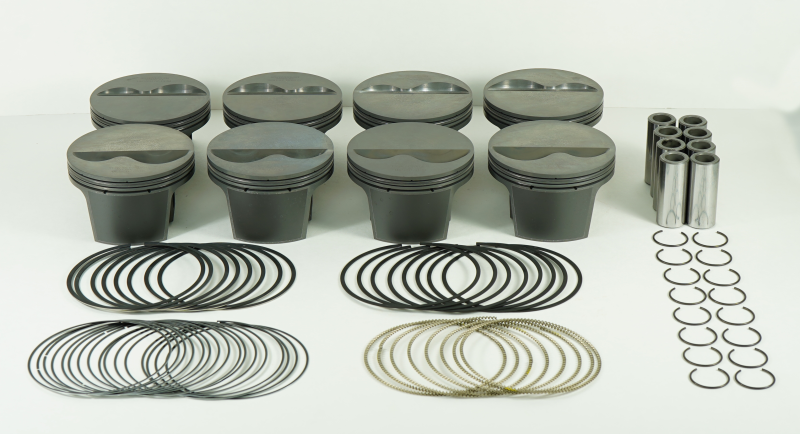

Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: - 4.1cc
Clip Style: Round Wire
Pin Wall Thickness: 0.129
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 380g
Pins Included: Y
Pin Material: Steel
