Mahle Motorsport 930202650 - Mahle MS Piston Set SBC 361ci 4.05in Bore 3.500in Stroke 6.0in Rod .927in Pin -4cc 10.7 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930202650
Sale price
$82099
Regular price
$97082
Unit price
/
Unavailable
$149.83 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

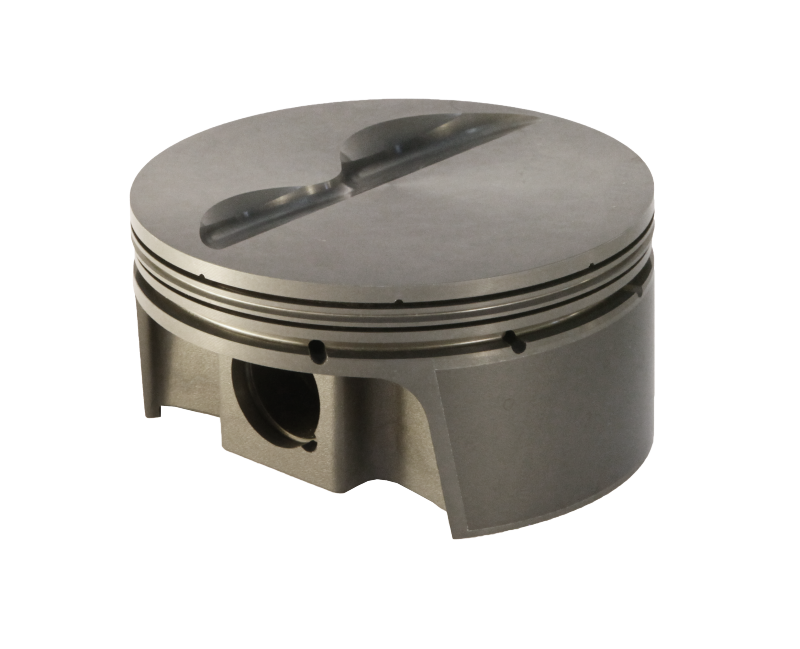

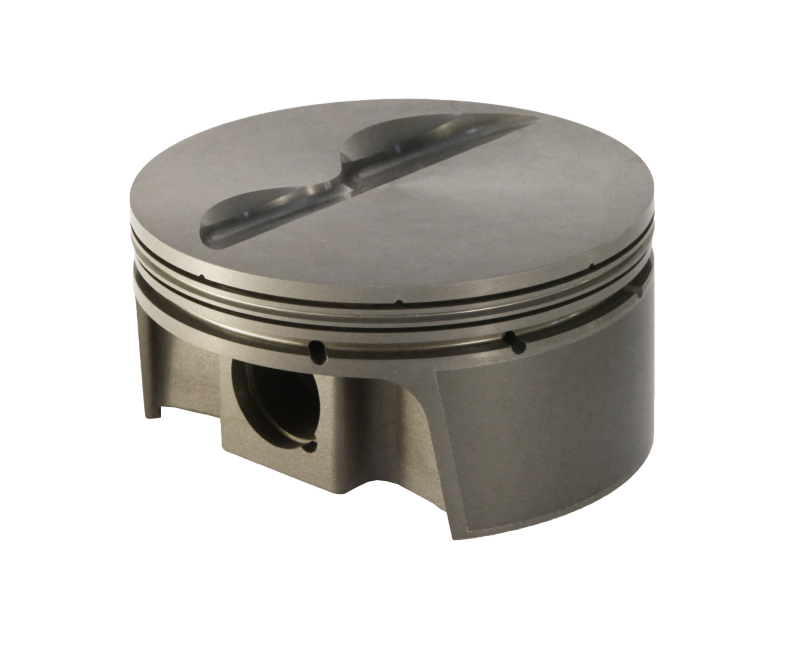

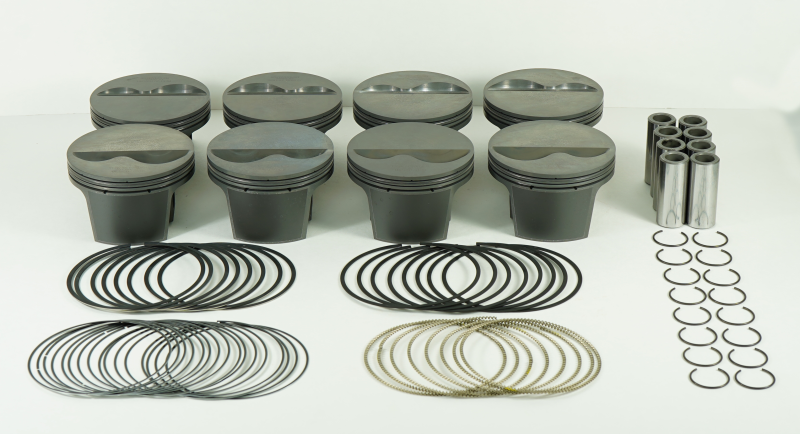

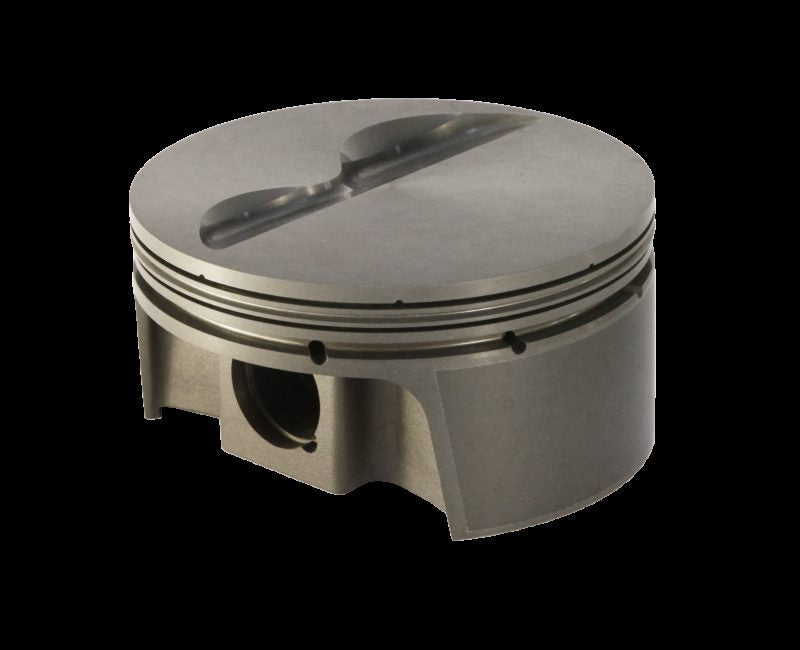

Mahle Motorsport 930202650 - Mahle MS Piston Set SBC 361ci 4.05in Bore 3.500in Stroke 6.0in Rod .927in Pin -4cc 10.7 CR Set of 8
Piston and Ring - PowerPak - Flat Top - Forged - Flat Top - 4.050 in Bore - 1.250 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 4.10 cc - Small Block Chevy - Kit
361cid 4.050 x 1.250CH, 3.500stroke,6.000rod,0.927pin,- 4.1cc,400g,10.7CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.129
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 400g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 93g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: - 4.1cc
UCR Thickness: 1.0mm
