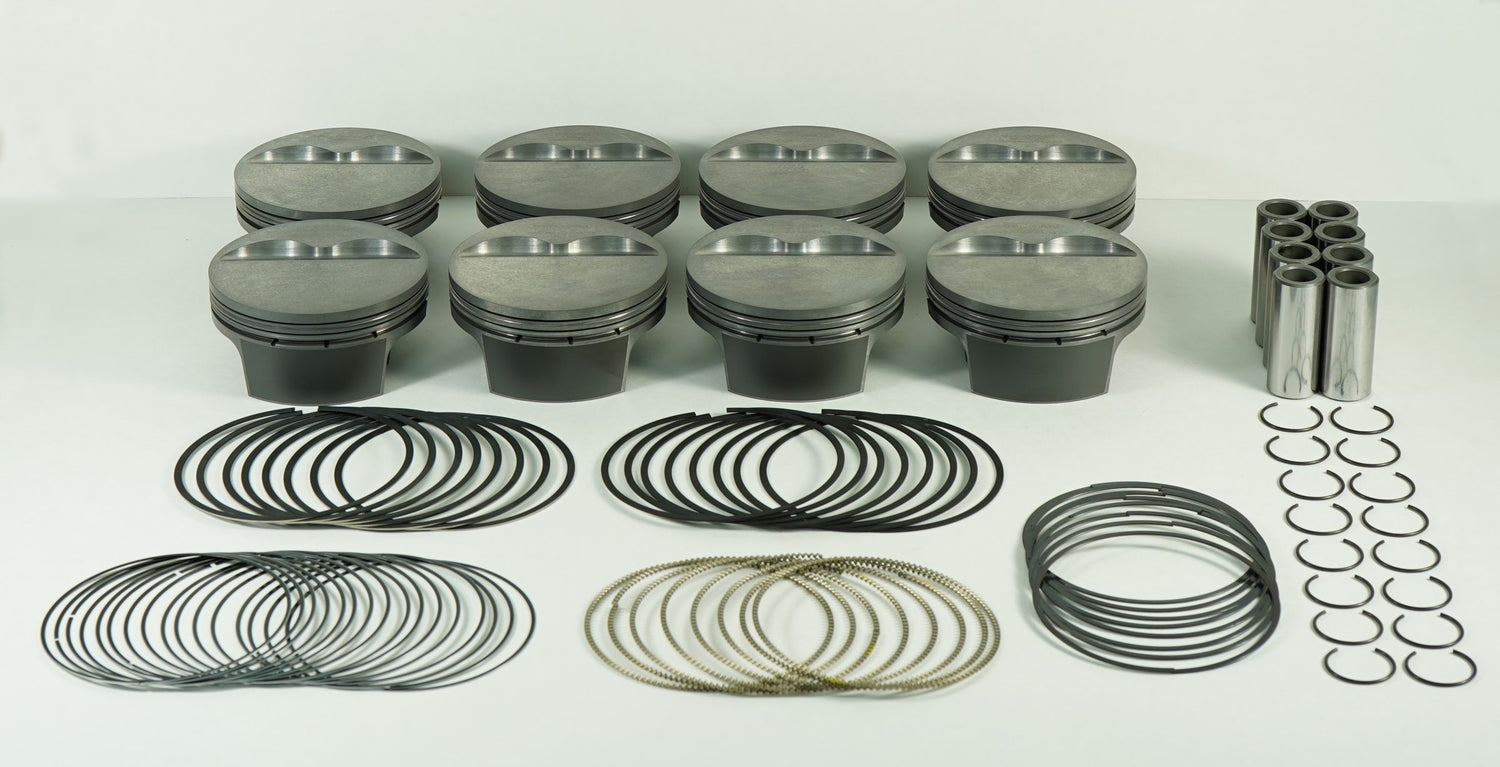

Mahle Motorsport 930201165 - Mahle MS Piston Set SBC 435ci 4.165in Bore 4.000in Stroke 6.0in Rod .927 Pin -5cc 12.4 CR Set of 8

Mahle Motorsport  |  SKU: DGJH-930201165
$76199 $83582

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mahle Motorsport 930201165 - Mahle MS Piston Set SBC 435ci 4.165in Bore 4.000in Stroke 6.0in Rod .927 Pin -5cc 12.4 CR Set of 8

Piston and Ring - PowerPak - Flat Top - Forged - Flat Top - 4.165 in Bore - 1.000 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Minus 5.00 cc - Small Block Chevy - Kit

436cid 4.165 x 1.000RCH, 4.000stroke,6.000rod,0.927pin,-5.0cc,422g,12.5CR, 4032

Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -5.0cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 422g
Pins Included: Y
