Mahle Motorsport 930201125-1 - Mahle MS Piston SBC 427ci 4.125in Bore 4.000in Stroke 6.0in Rod .927 Pin -5cc 12.2 CR - Single
Mahle Motorsport | SKU:
DGJH-930201125-1
Sale price
$7699
Regular price
$8609
Unit price
/
Unavailable
$9.10 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

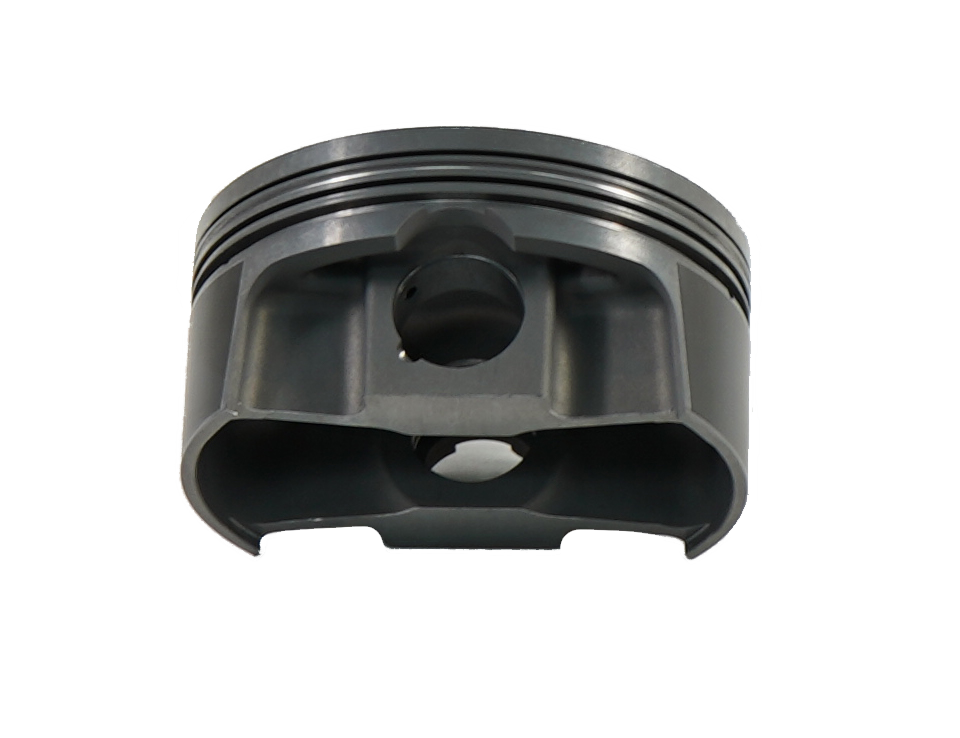

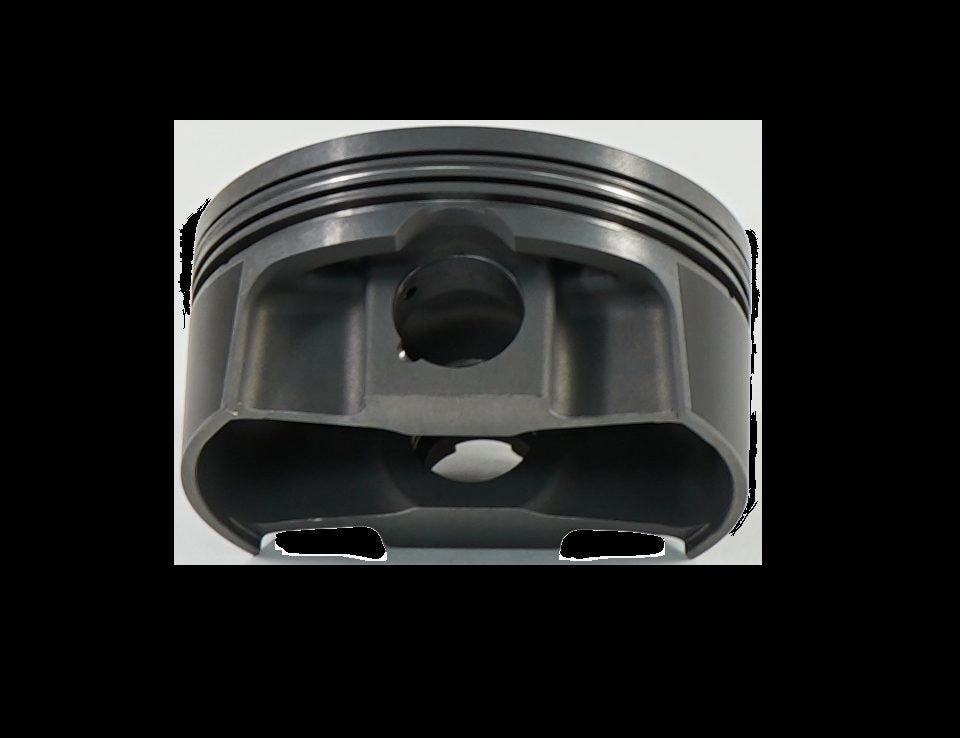

Mahle Motorsport 930201125-1 - Mahle MS Piston SBC 427ci 4.125in Bore 4.000in Stroke 6.0in Rod .927 Pin -5cc 12.2 CR - Single
Piston (ea) - SMALL BLOCK CHEVY FLAT TOP
428cid 4.125 x 1.000RCH, 4.000stroke,6.000rod,0.927pin,-5.0cc,408g,12.3CR, 4032, SINGLE PISTON
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 408g
Pins Included: N
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
OCR Thickness: 2.0mm
Package Quantity: Sold as a set of 1
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -5.0cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Pin Diameter: 23.55mm
