Description
Description

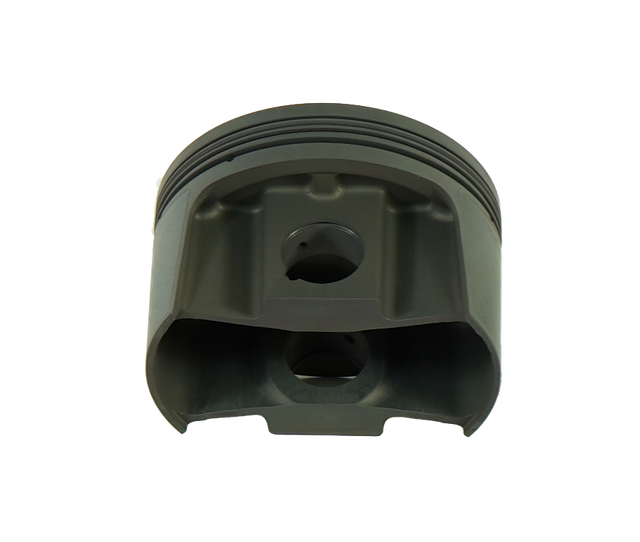

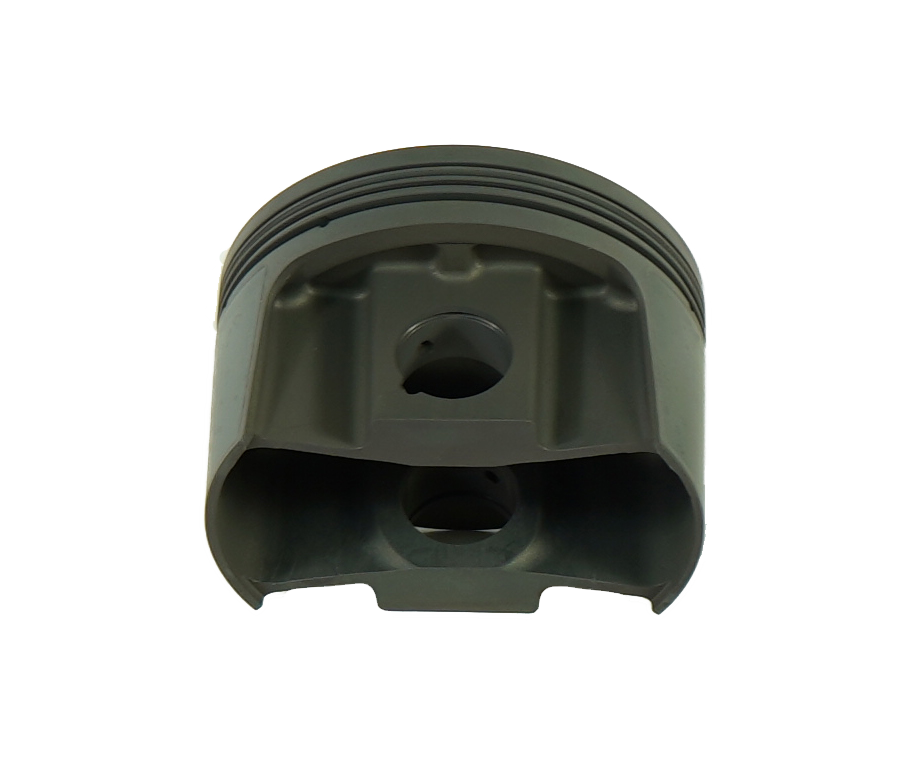

Mahle Motorsport 930200255-1 - Piston (each)
Piston (ea) - SMALL BLOCK CHEVY FLAT TOP
407cid 4.155 x 1.425CH, 3.750stroke,5.700rod,0.927pin,-5.0cc,488g,11.7CR, 4032, SINGLE PISTON
LCR Coating: Phosphate
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Crown Volume: -5.0cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
Piston Material: Forged, 4032
LCR Material: 9254 Steel
Piston Mass: 488g
Pins Included: N
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
File Fit: Y
