Mahle Motorsport 930200130 - Mahle MS Piston Set SBC 383ci 4.030in Bore 3.750in Stroke 5.7in Rod .927 Pin -5cc 11.1 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930200130
Sale price
$65799
Regular price
$77657
Unit price
/
Unavailable
$118.58 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

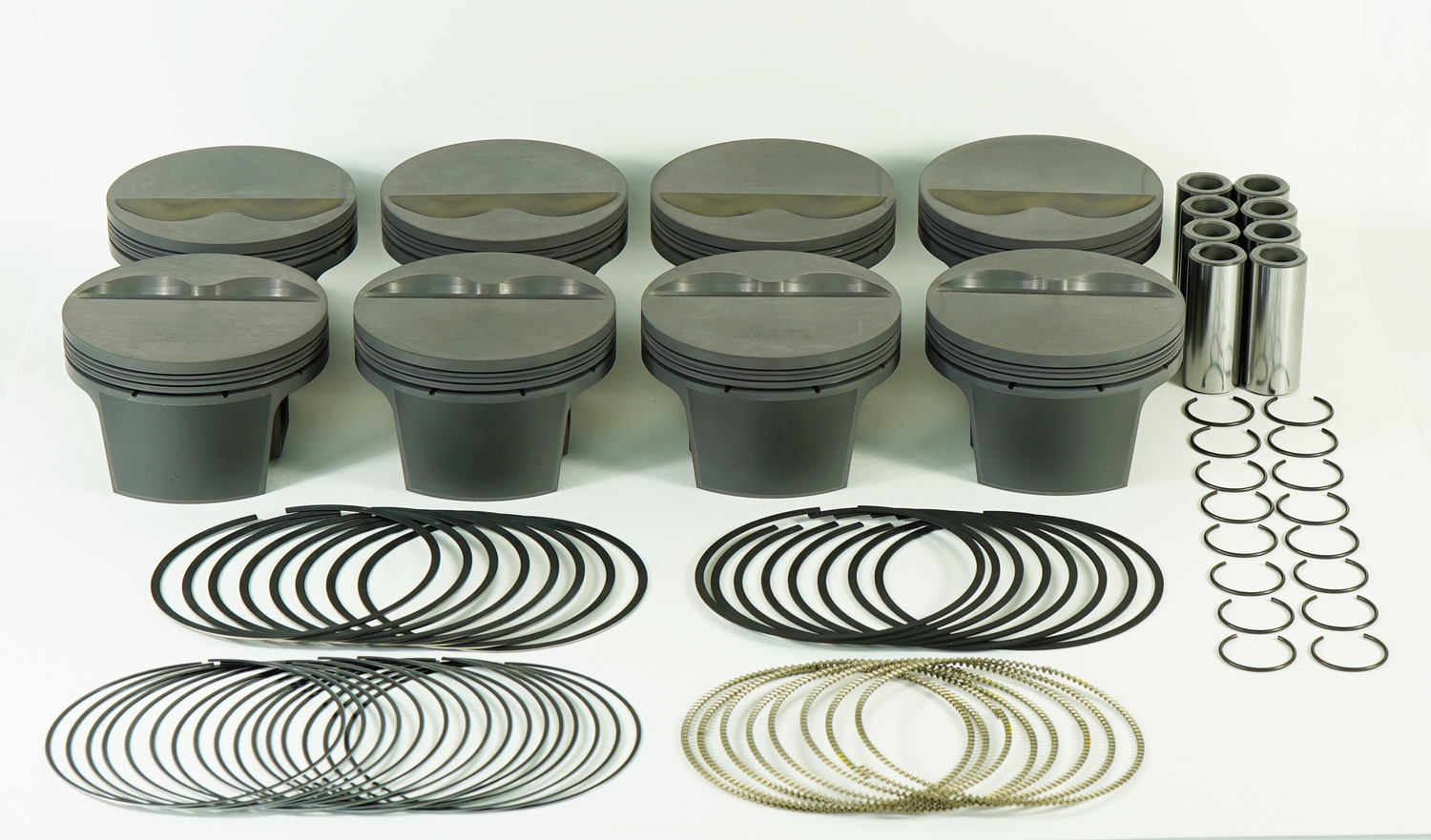

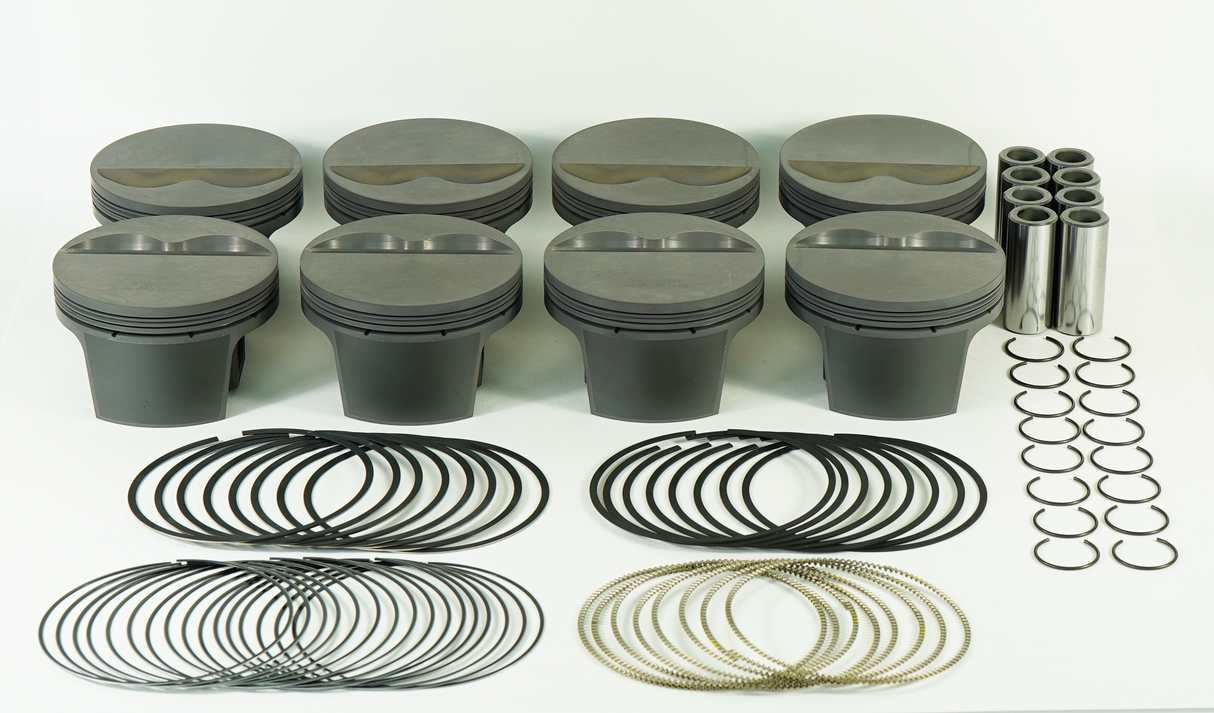

Mahle Motorsport 930200130 - Mahle MS Piston Set SBC 383ci 4.030in Bore 3.750in Stroke 5.7in Rod .927 Pin -5cc 11.1 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 4.030 in Bore - 1.425 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 5.00 cc - Small Block Chevy - Kit
383cid 4.030 x 1.425CH, 3.750stroke,5.700rod,0.927pin,-5.0cc,460g,11.1CR, 4032
OCR Material: Chrome plated stainless steel
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -5.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
OCR Tension: Standard

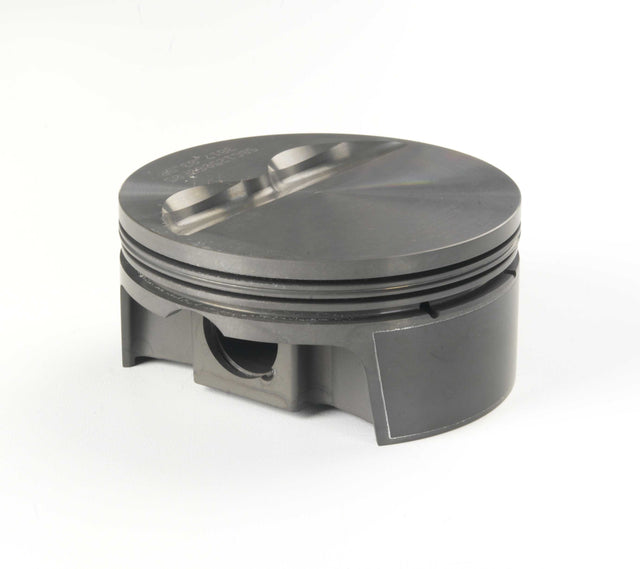

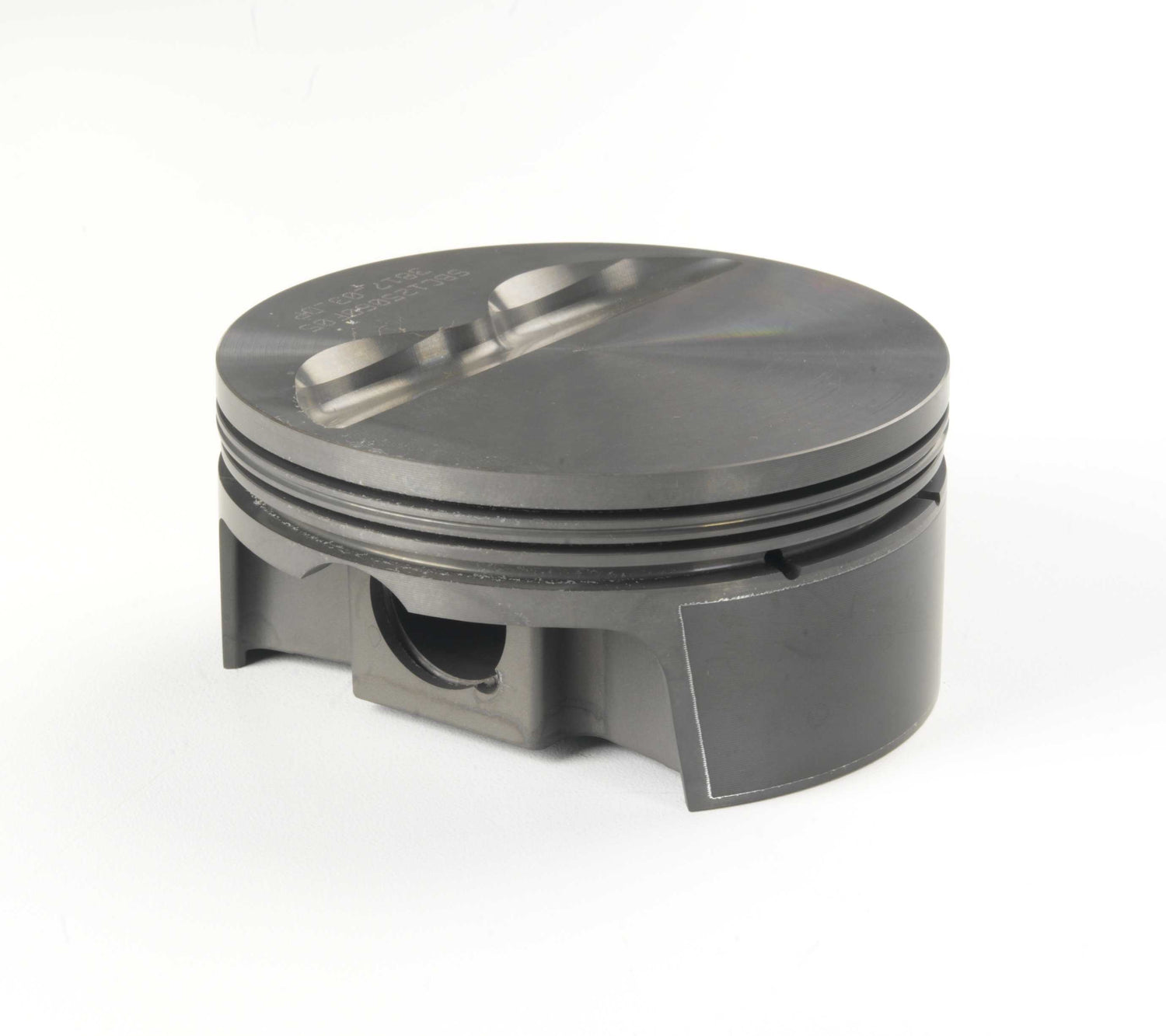

Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 460g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
LCR Thickness: 1.0mm
