Mahle Motorsport 930167550 - Piston (set)
Mahle Motorsport | SKU:
DGJH-930167550
Sale price
$1,08799
Regular price
$1,32610
Unit price
/
Unavailable
$238.11 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

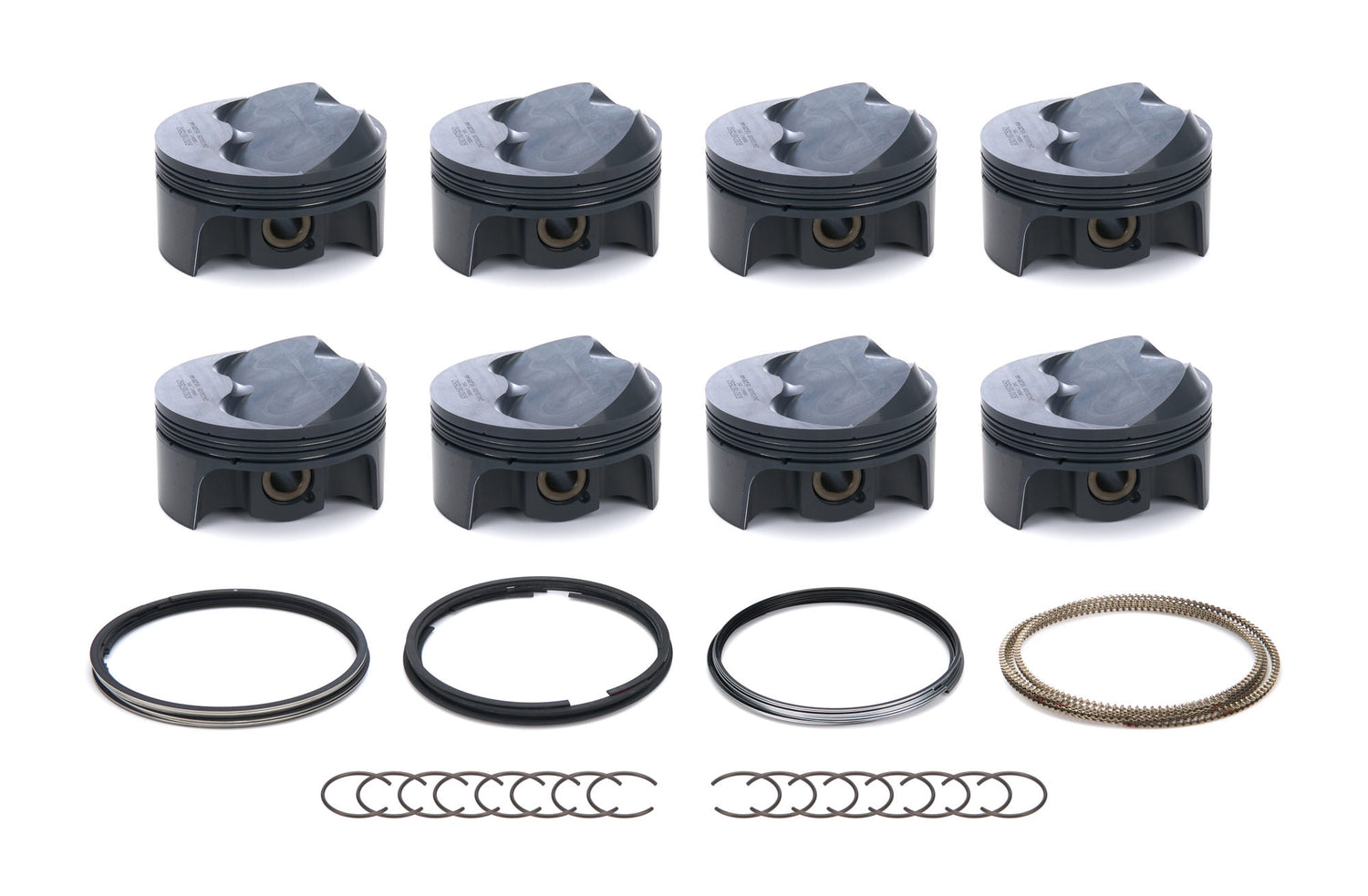

Mahle Motorsport 930167550 - Piston (set)
Piston and Ring - PowerPak - Forged - Dome - 4.050 in Bore - 1.250 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Plus 13.6 cc - Small Block Chevy - Kit
361cid 4.050 x 1.250CH, 3.500stroke,6.000rod,0.927pin,13.6cc,474g,15.0CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.188
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 474g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 128g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 13.6cc
UCR Thickness: 1.0mm
