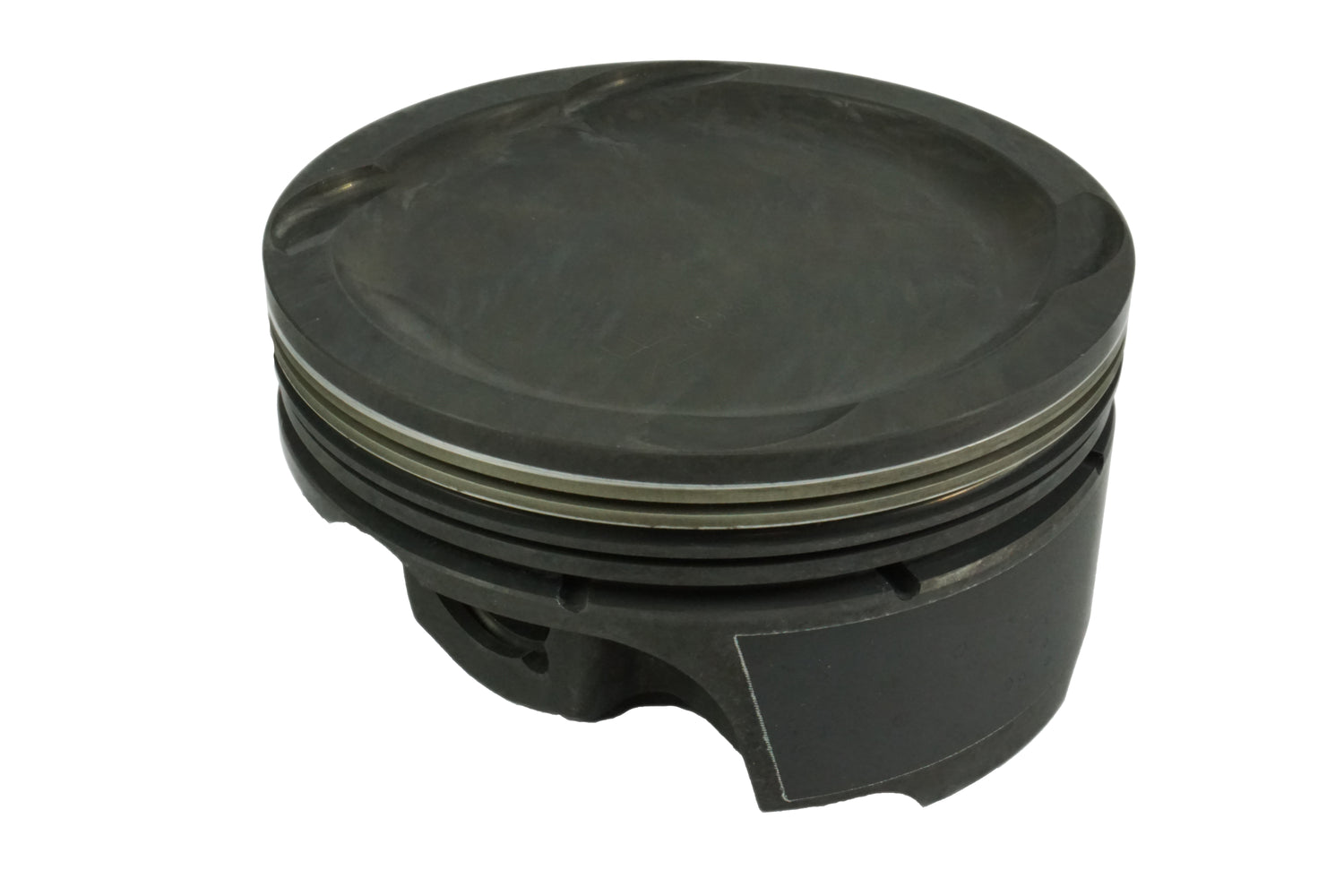

Mahle Motorsport 930134030 - Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930134030
Sale price
$76799
Regular price
$92343
Unit price
/
Unavailable
$155.44 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

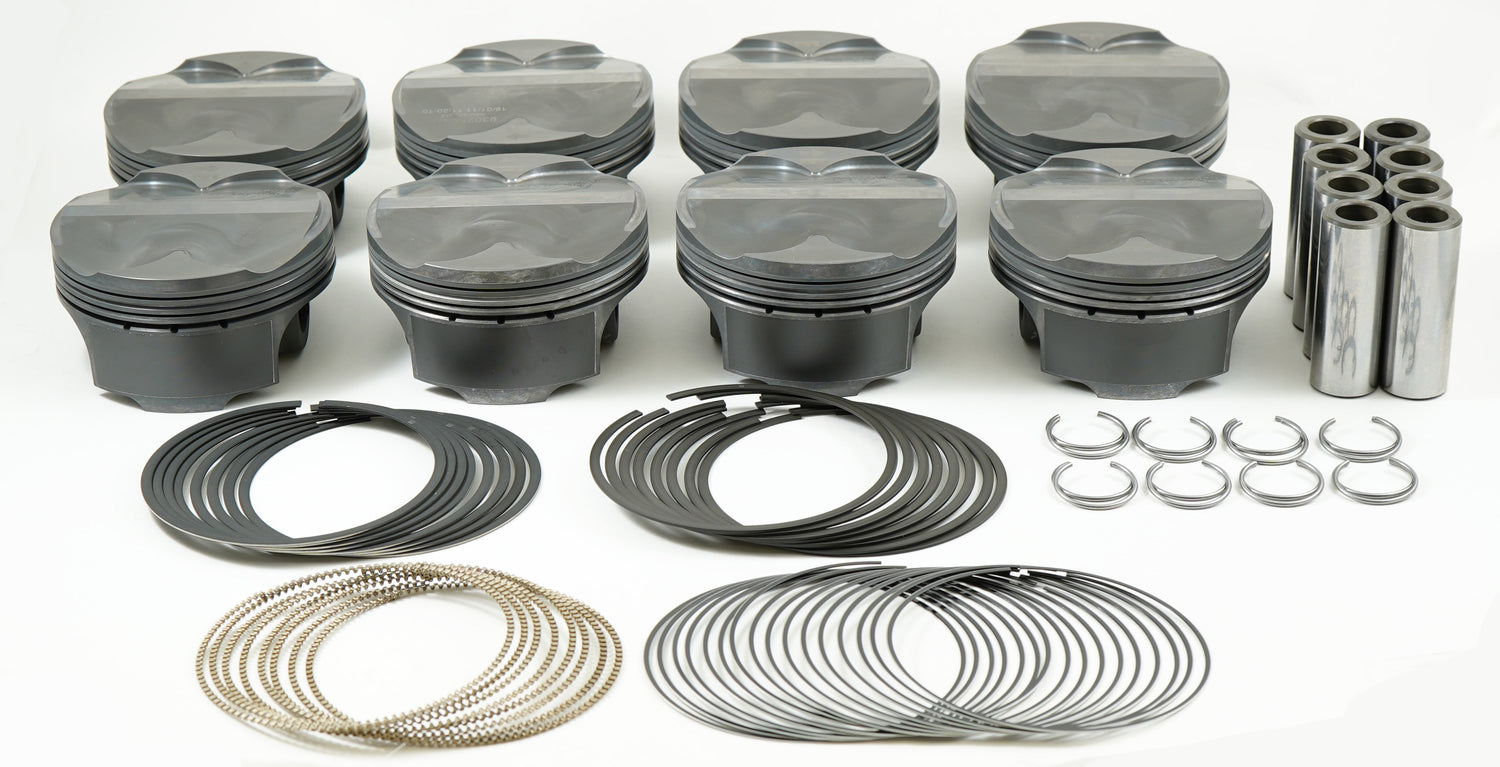

Mahle Motorsport 930134030 - Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Set of 8
302ci, 3.630bore, 3.650stroke, 5.933rod,1.167ch,.866pin,-5cc,375g,10.0cr,4032
FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) 302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,383g,10.1CR, M142P.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol: -4.5cc
Package Qty: Sold as a set of 8
Pin Diameter: 0.866
Pin Length: 2.405
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 383g
Piston Material: Forged, M142P
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dish, w/ 4 valve reliefs
Rings Included: Yes
