Mahle Motorsport 930134030-1 - Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Single
Mahle Motorsport | SKU:
DGJH-930134030-1
Sale price
$8299
Regular price
$9269
Unit price
/
Unavailable
$9.70 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

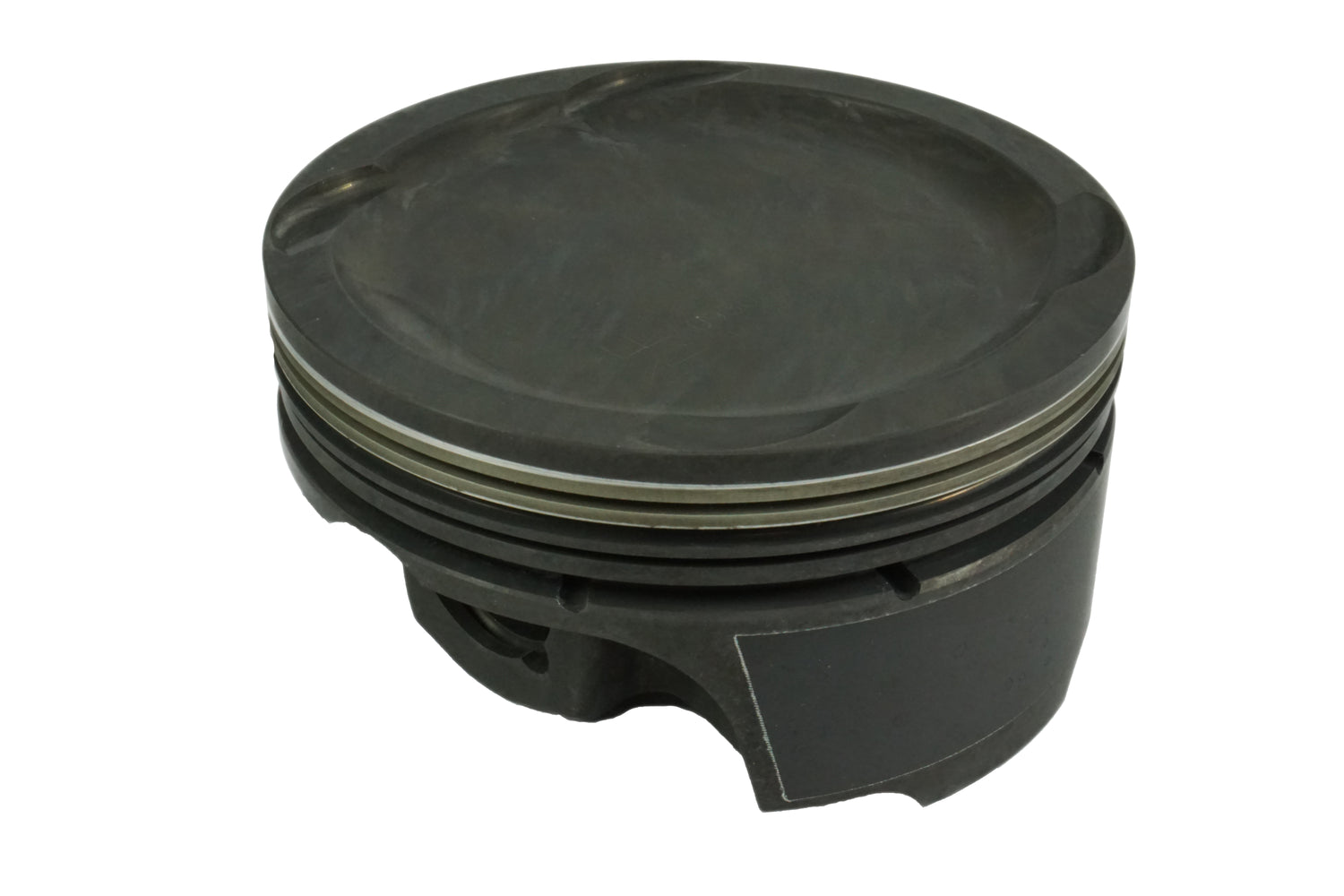

Mahle Motorsport 930134030-1 - Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Single
Piston (ea) - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO
302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,383g,10.1CR, M142P, SINGLE PISTON
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -4.5cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
Rings Included: N
Pin Length: 61.1mm
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, M142P
Piston Mass: 383g
Pins Included: N
Pin Wall Thickness: 0.177
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Diameter: 22.0mm
UCR Coating: HV385
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
