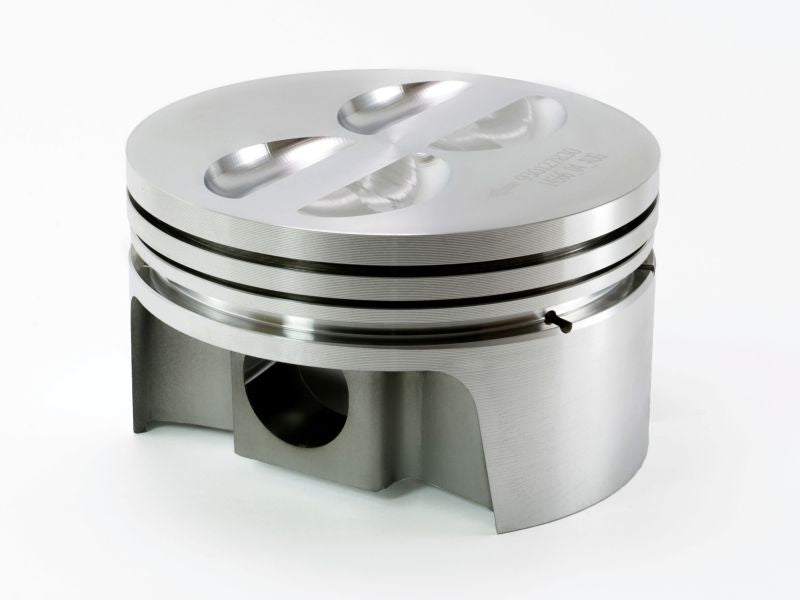

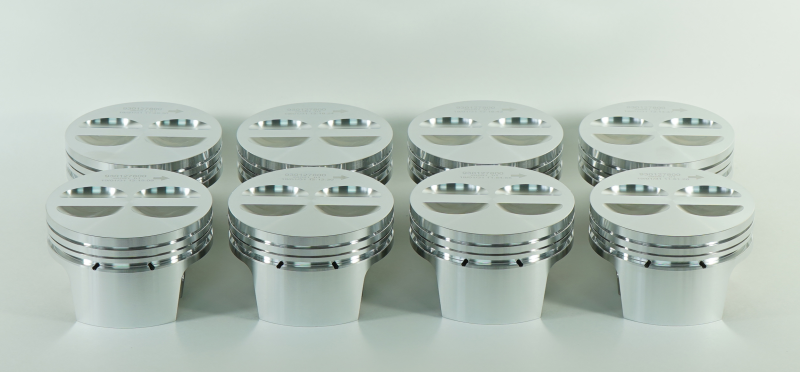

Mahle Motorsport 930127808 - Mahle MS Piston Set GM 604 351ci 4.008in Bore 3.48in Stk 5.7in Rod 0.927 Pin -5cc 10.5 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930127808
Sale price
$61999
Regular price
$67474
Unit price
/
Unavailable
$54.75 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930127808 - Mahle MS Piston Set GM 604 351ci 4.008in Bore 3.48in Stk 5.7in Rod 0.927 Pin -5cc 10.5 CR Set of 8
Piston - PowerPak - Flat Top - Forged - Flat Top - 4.008 in Bore - 1.559 in Compression Height - 2.0 x 1.5 x 4.0 mm Ring Grooves - Minus 4.90 cc - Small Block Chevy - Set of 8
351cid 4.008 x 1.559CH, 3.480stroke,5.700rod,0.927pin,-4.9cc,551g,10.3CR, 4032
Clips Included: N
Piston Mass: 551g
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 2.0mm, 1.5mm, 4.0mm
Piston Material: Forged, 4032
Pins Included: Y
Crown Volume: -4.9cc
Pin Wall Thickness: 0.168
Pin Style: Press Fit
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 4.0mm
LCR Thickness: 1.5mm
UCR Thickness: 2.0mm
