Mahle Motorsport 930127802 - Mahle Piston Kit, GM 604 Crate Engine Drop in forged. Replacement rings are not included. 101.651mm
Mahle Motorsport | SKU:
DGJH-930127802
Sale price
$60199
Regular price
$67474
Unit price
/
Unavailable
$72.75 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

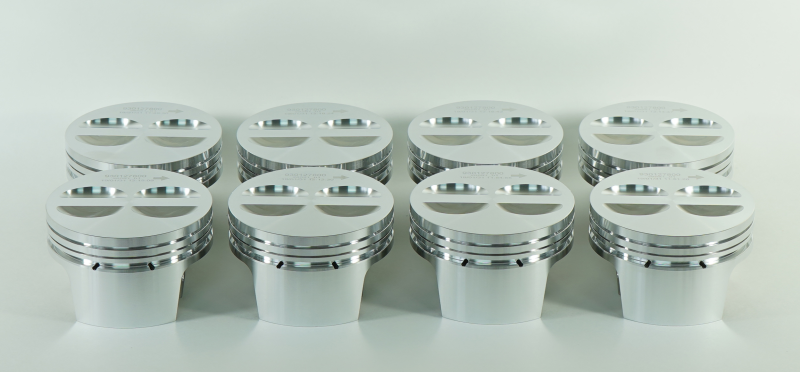

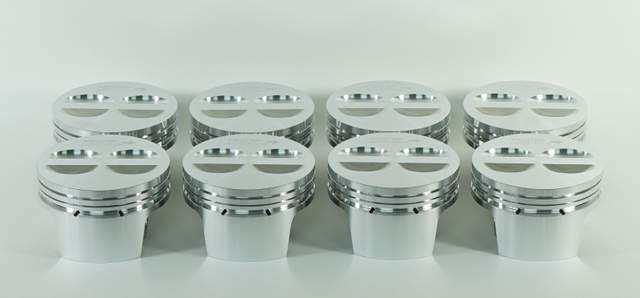

Mahle Motorsport 930127802 - Mahle Piston Kit, GM 604 Crate Engine Drop in forged. Replacement rings are not included. 101.651mm
Piston (set) - GM 604 Crate Engine Drop-In Forged Replacement - PRESS-FIT Pin
350cid 4.002 x 1.559CH, 3.480stroke,5.700rod,0.927pin,-4.9cc,549g,10.3CR, 4032
Piston Material: Forged, 4032
Pins Included: Y
Crown Volume: -4.9cc
Pin Wall Thickness: 0.168
Pin Style: Press Fit
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 4.0mm
LCR Thickness: 1.5mm
UCR Thickness: 2.0mm
Clips Included: N
Piston Mass: 549g
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 2.0mm, 1.5mm, 4.0mm
