Mahle Motorsport 930110205-1 - Piston (each)
Mahle Motorsport | SKU:
DGJH-930110205-1
Sale price
$12999
Regular price
$15739
Unit price
/
Unavailable
$27.40 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

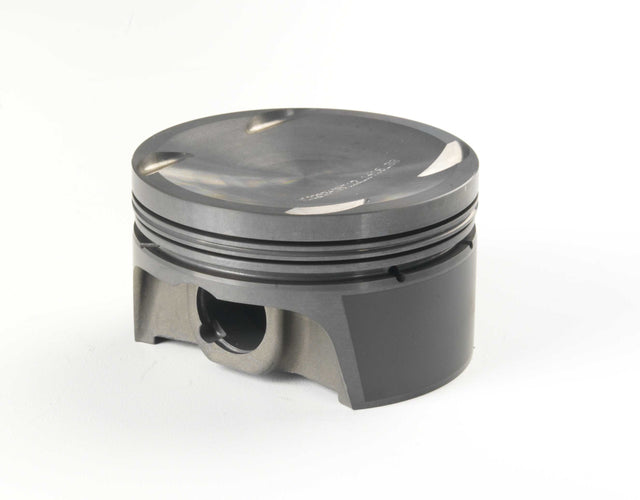

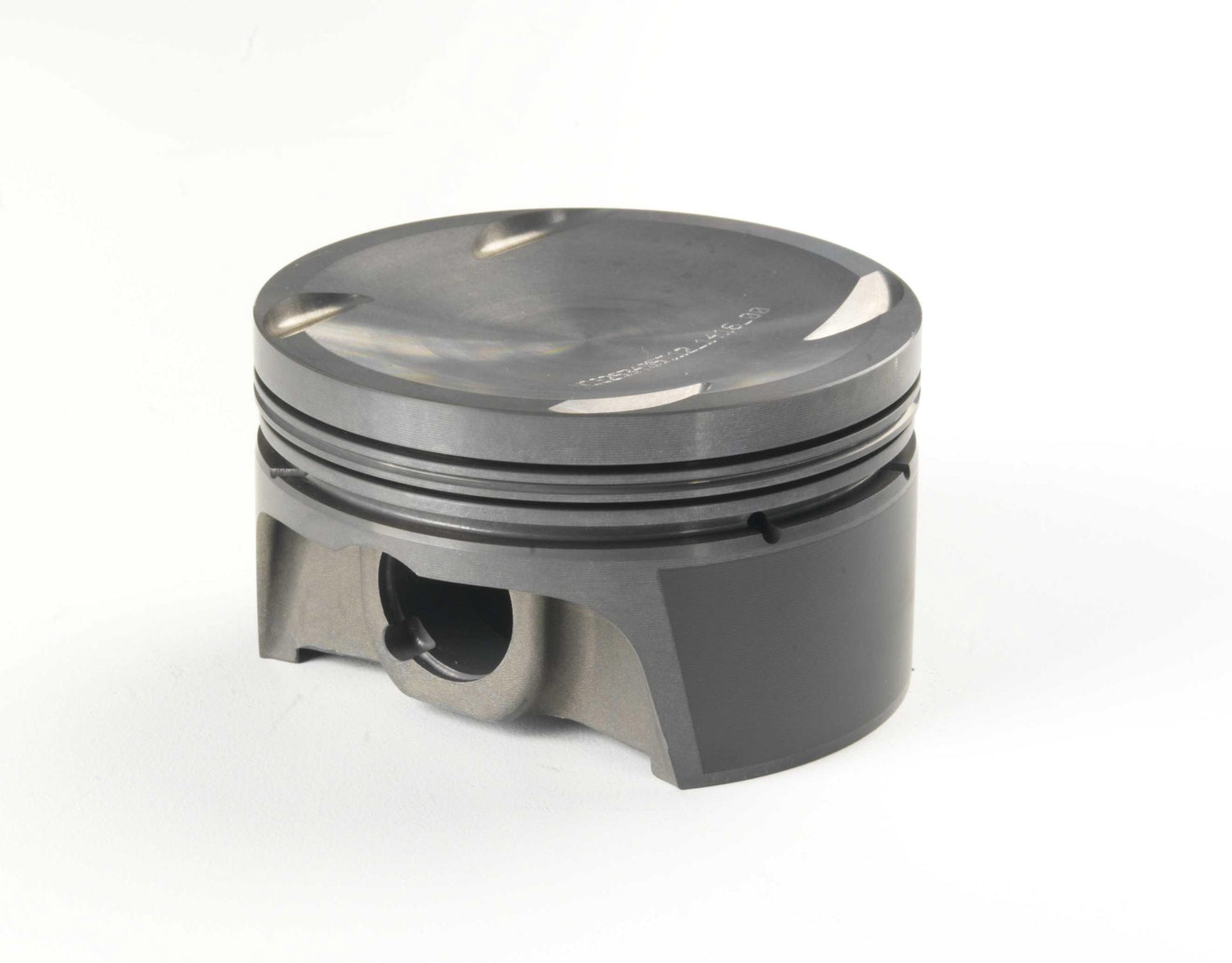

Mahle Motorsport 930110205-1 - Piston (each)
Piston (ea) - NISSAN RB26DETT (SKYLINE) 2.6L
86.50mm x 30.25mm CH, 73.7mm stroke,121.5mm rod,21mm pin,16.0cc,366g,8.5CR, 2618, SINGLE PISTON
Clips Included: N
Pins Included: N
UCR Thickness: 1.2mm
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
Piston Style: Dome, w/ NO valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 366g
Pin Wall Thickness: 0.197
Crown Volume: 16.0cc
Pin Style: Floating
Pin Material: Steel
Pin Mass: 98g
Pin Length: 50.0mm
Pin Diameter: 21.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Clip Style: Round Wire
