Mahle Motorsport 930083135 - Mahle MS Piston Set H22 87.25mm Bore 90.0mm Stroke 143mm Rod 22mm Pin 10cc 11.5 CR Set of 4
Mahle Motorsport | SKU:
DGJH-930083135
Sale price
$64399
Regular price
$70168
Unit price
/
Unavailable
$57.69 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930083135 - Mahle MS Piston Set H22 87.25mm Bore 90.0mm Stroke 143mm Rod 22mm Pin 10cc 11.5 CR Set of 4

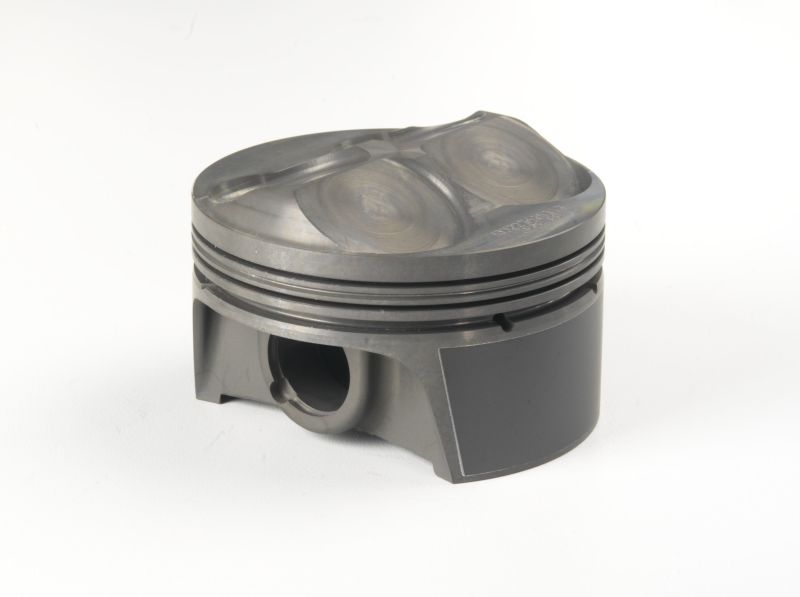

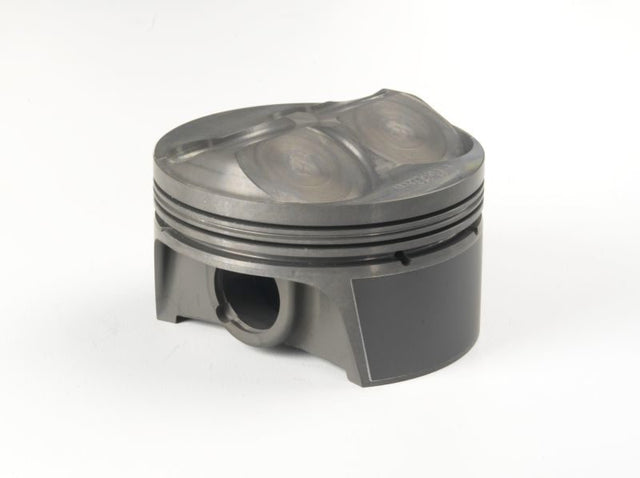

Piston (set) - HONDA H22 GOLD SERIES 2.2L
87.25mm x 31mm CH, 90.7mm stroke,143mm rod,22mm pin,9.8cc,338g,12.1CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 338g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 101g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: 9.8cc
UCR Thickness: 1.2mm
