Mahle Motorsport 930083125T - HONDA H22 GOLD SERIES 2.2L- FOR USE IN FACTORY FRM (FIBER REINFORCED MATRIX) CYLINDERS ONLY 87.00mm x 31mm CH, 90.7mm stroke,143mm rod,22mm pin,9.8cc,335g,12.0CR, 4032
Mahle Motorsport | SKU:
DGJH-930083125T
Sale price
$73299
Regular price
$90219
Unit price
/
Unavailable
$169.20 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Mahle Motorsport 930083125T - HONDA H22 GOLD SERIES 2.2L- FOR USE IN FACTORY FRM (FIBER REINFORCED MATRIX) CYLINDERS ONLY 87.00mm x 31mm CH, 90.7mm stroke,143mm rod,22mm pin,9.8cc,335g,12.0CR, 4032

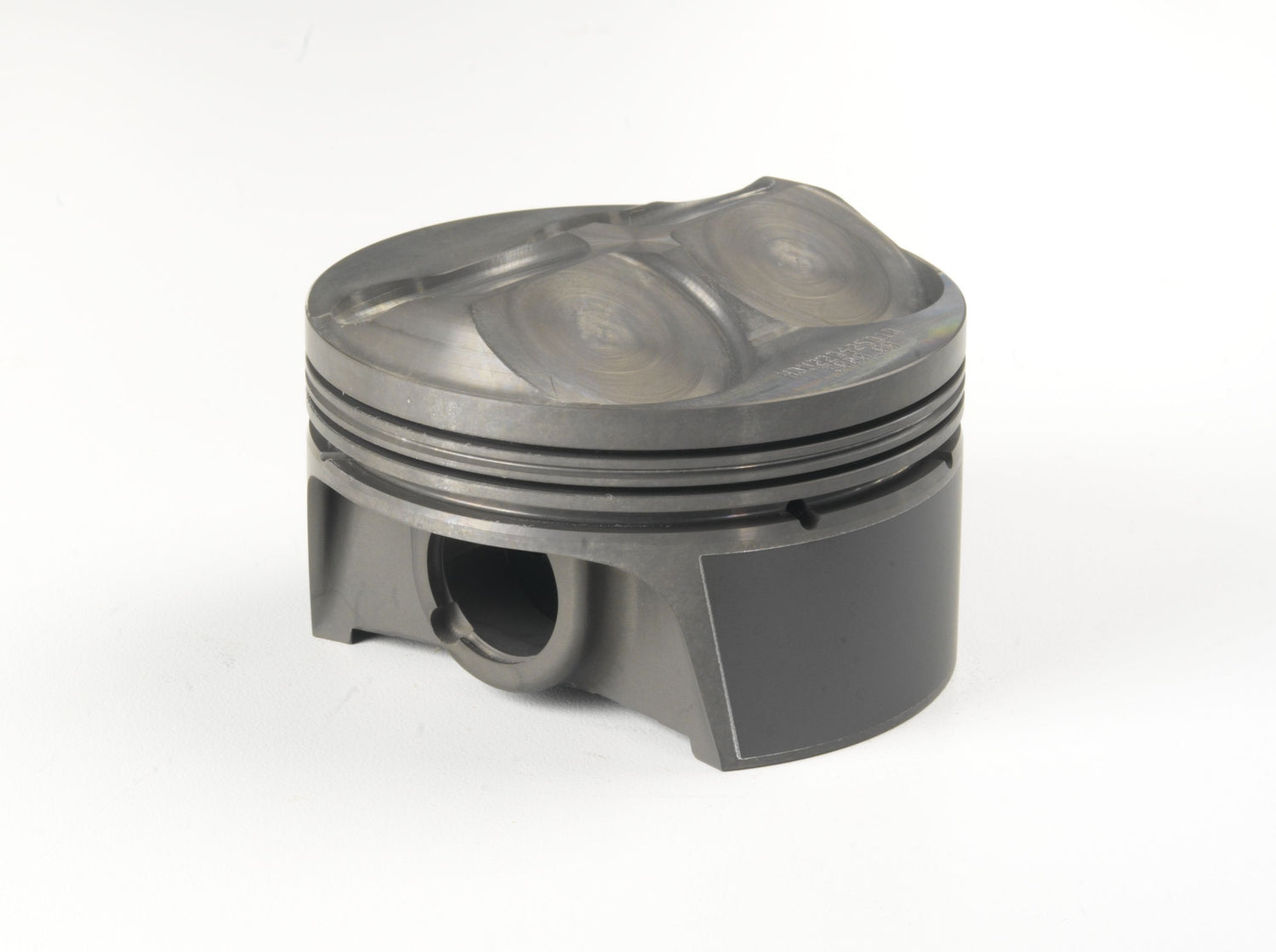

Mahle Motorsport Engine Piston Set
HONDA H22 GOLD SERIES 2.2L- FOR USE IN FACTORY FRM (FIBER REINFORCED MATRIX) CYLINDERS ONLY 87.00mm x 31mm CH, 90.7mm stroke,143mm rod,22mm pin,9.8cc,335g,12.0CR, 4032.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate Plus Ferroprint (FRM bores) Plus TBC
Crown Vol: 9.8cc
Package Qty: Sold as a set of 4
Pin Diameter: 0.866
Pin Length: 2.047
Pin Mass: 101g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 335g
Piston Material: Forged, 4032
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Style: Dome, w/ 4 valve reliefs
Rings Included: Yes
